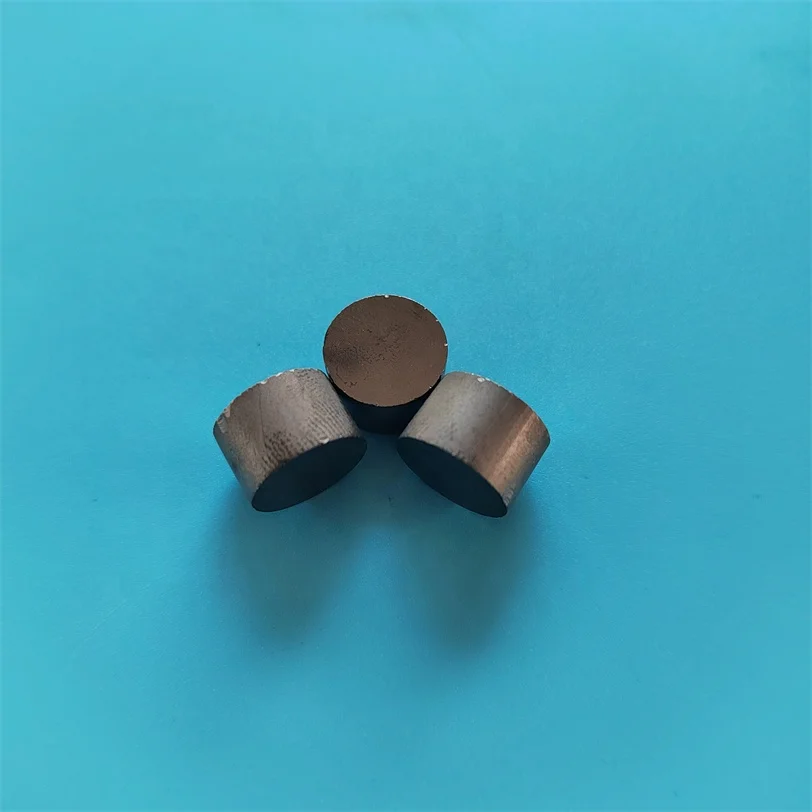

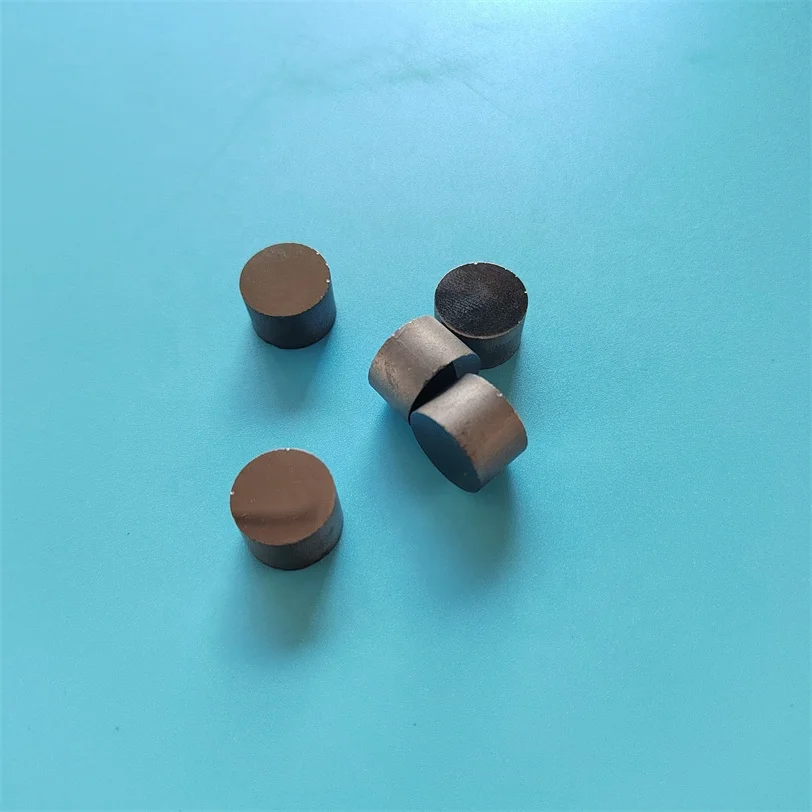

Abrasion Resistant Ceramic Grinding Rod Silicon Carbide Ceramic Mill Ball SIC Ceramic Grinding Media
$9.00
Abrasion Resistant Ceramic Grinding Rod Silicon Carbide Ceramic Mill Ball SIC Ceramic Grinding Media
Silicon Carbide (SiC) has properties remarkably similar to those of diamond – it is one of the lightest, hardest, and strongest technical ceramic materials, is the most corrosion-resistant and wear-resistant ceramic, it has exceptional thermal conductivity,resistance to acids, and low thermal expansion. used in mechanical seals and pump parts.
It not only have excellent mechanical properties at room temperature, such as high flexural strength, excellent oxidation resistance, good corrosion resistance, high wear resistance and low friction coefficient, but also high temperature mechanical properties (strength, creep resistance, Etc), is the best among known ceramic materials. Hot press sintering, pressureless sintering, hot isostatic pressing, the high temperature strength can be maintained up to 1600 ° C, which is the best material for
high temperature strength in ceramic materials. Oxidation resistance is also the best of all non-oxide ceramics.
high temperature strength in ceramic materials. Oxidation resistance is also the best of all non-oxide ceramics.
Product Description
Size | Customized |
Tolerance | Customized |
Payment | T/T,Western Union,Online payment by credit card are available |
Delivery Time | 1.stock:delivery within 3-5 days after receiving your payment. 2. OEM/ODM:The normal Lead time is 15-45 days, which depends on your quantiy. |
Silicon carbide ceramic
Silicon carbide ceramics not only have excellent mechanical properties at room temperature, such as high flexural strength, excellent oxidation resistance, good corrosion resistance, high wear resistance and low friction coefficient, but also high temperature mechanical properties (strength, creep resistance) properties, etc.) is very excellent among the known ceramic
materials
Feature of silicon carbide ceramic rod
* High hardness and wear resistance
* High Chemical Resistance, Excellent Thermal
* Corrosion resistant
* Lightweight – Low Density
* High Temperature Strength
* Low thermal expansion and high thermal conductivity
Technical data sheet
??Ŀ Item | ??λ UNIT | ??ѹ?ս?̼???? SSIC | ??Ӧ?ս?̼???? RBSIC/SISIC | ?ؽᾧ?ս?̼???? RSIC |
???ʹ???¶? Max working temp. | ?? | 1600 | 1380 | 1650 |
?ܶ? Density | g/cm3 | ??3.1 | ??3.02 | ??2.6 |
?????? Open Porosity | % | ??0.1 | ??0.1 | 15% |
????ǿ?? Bending Strength | Mpa | ??400 | 250(20??) | 90-100(20??) |
Mpa | 280(1200??) | 100-120??1100??) | ||
????ģ?? Modulus of Elasticity | Gpa | 420 | 330(20??) | 240 |
Gpa | 300(1200??) | |||
?ȴ???ϵ?? Thermal Conductivity | W/m.k | 74 | 45(1200??) | 24 |
??????ϵ?? Coefficient of Thermal Expansion | K-1x10 -6 | 4.1 | 4.5 | 4.8 |
άʽӲ?? Vickers Hardness HV | Gpa | 22 | 20 | |
?????? Acid Alkaline-proof | ?ţ?excellent?? | ?ţ?excellent?? | ?ţ?excellent?? |
Company Profile
Introduction
Based on quartz and ceramics, after more than 20 years development, Highborn Group has grown up to a modern enterprise in research, manufacture, processing and sales. We are mainly supplying quartz glass, cuvette, precise ceramics, porous ceramics, thick film resistor, ozone generator, metal fiber felt??polyester fiber cotton products , silicone rubber??concentrated essence aroma and we have been offering our products and services to our clients from more than 116 countries or regions.
Equipment&Workshop
We can offer not only qualified products, we can also supplying quality service including design, development, export and after sales. With our professional skills, advanced technology and quality material, we can design and develop new products or new applications according to the clients’ expectation. We have custom-made new products and promoted the specifications for more than
1000 clients, and we have gotten good reputation from our clients .
1000 clients, and we have gotten good reputation from our clients .
Office
Certification
Highborn Group is paying great attention to the product quality and technology research all the time. We have passed ROHS??CE??MSDS??ISO??SGS??TÜV??LVD??FDA??EMC??FDA and also the ISO9001 authentication. We have 8 registered trademark and 40 patents. Also in 2020, we won the title of China High-tech Enterprise and Jiangsu Private Science and Technology Enterprises.
Packing & Delivery
Regarding the package,we usually use carton with bubble wrap.If you need special package,please inform us the detailed information of package kindly,we will pack them according to your requirements.
Regarding the delivery,we support to send you our products by air,by sea ,by train or other
Why Choose Us
FAQ
1??What products and service can you offer us?
Answer: With the development more than 20 years, now we have 11 business division and we are supplying Quartz Glass (Tube, Rod, Plate and customized parts), optical glass and cuvette, and also various precise ceramics, porous ceramics and refractory ceramics. We have the full processing line for ceramic thick film resistors, far infrared ceramic glass heating panel, quartz tube/ceramic plate ozone generator ??porous metal fiber felt ?? polyester fiber cotton products and silicone rubber??concentrated essence aroma. For all the products, we can design and customize according to the clients’ demand.
2: Before mass order, can you offer samples? How will you charge for them?
Answer: We are willing to offer samples to lower your purchasing risk. Generally, if from inventory, we can deliver out within 3 days, however if need processing, we can deliver out within 15 days. For some difficult items, the delivery time will be decided by its grade of difficulty. For some low value items, we can offer free sample, however we would like you to afford the freight cost. For customized products, we need to charge the developing cost.
Answer: We are willing to offer samples to lower your purchasing risk. Generally, if from inventory, we can deliver out within 3 days, however if need processing, we can deliver out within 15 days. For some difficult items, the delivery time will be decided by its grade of difficulty. For some low value items, we can offer free sample, however we would like you to afford the freight cost. For customized products, we need to charge the developing cost.
3: What test report or certificate can you offer? What achievements have you made in research and development?
Answer: Till the end of 2021, we have passed ROHS??CE??MSDS??LVD??FDA??EMC tests and also the ISO9001 authentication??SGS??TÜV. We have 8 registered trademark and 40 patents. Also we won the title of China High-tech Enterprise and Jiangsu Private Science and Technology Enterprises.
