Big Size Transparent Uv Quartz Glass Plate/quartz Glass Sheet
$15.00
Products Description

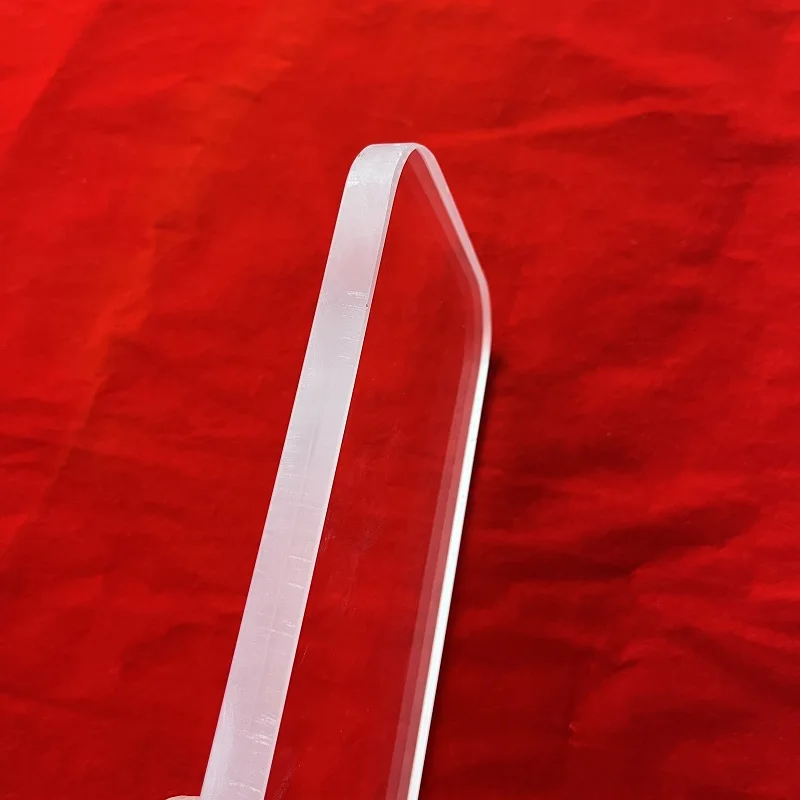

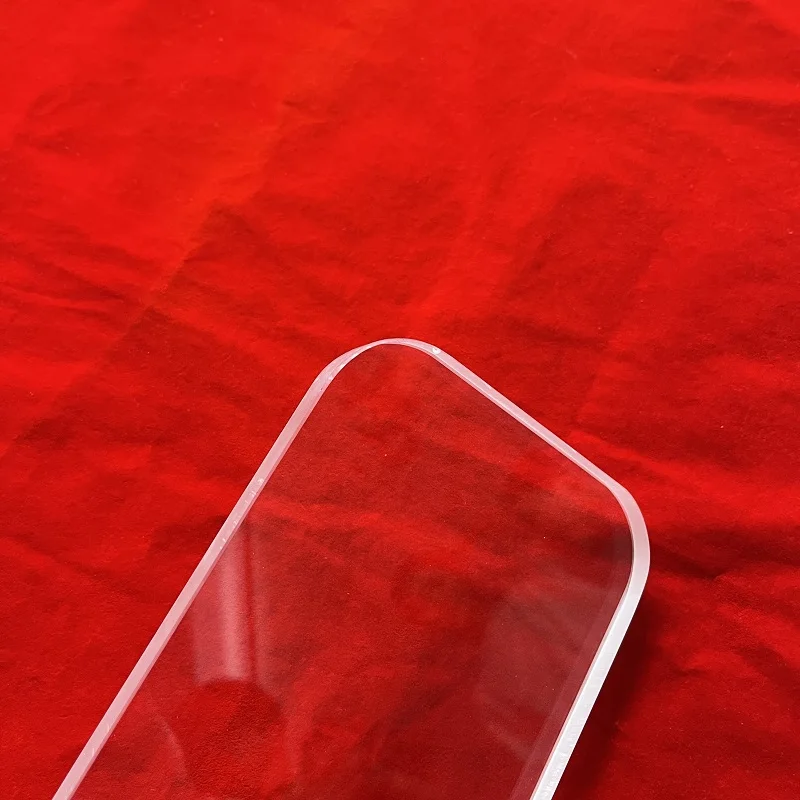

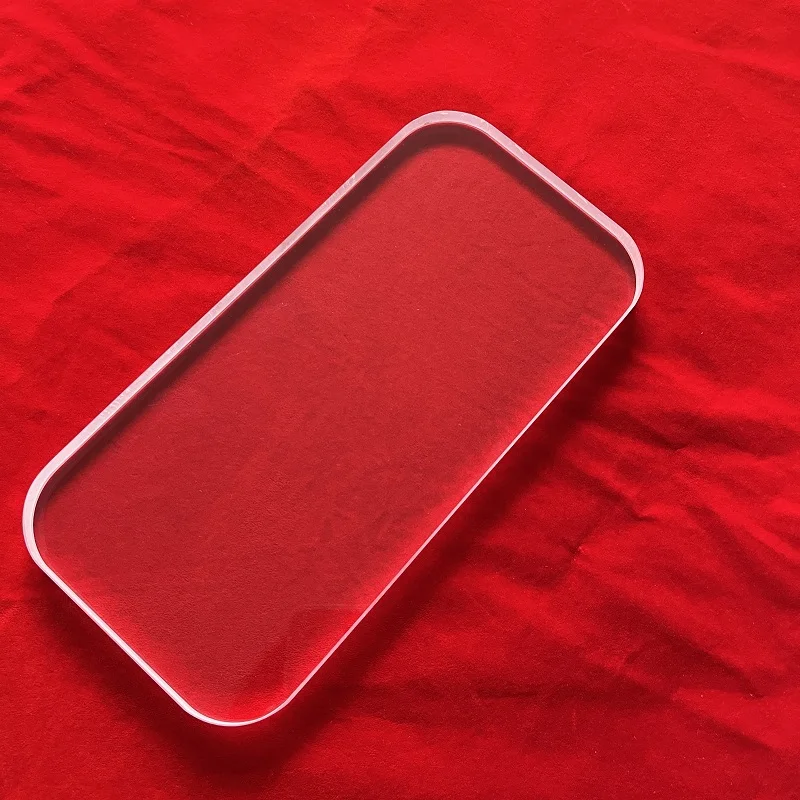

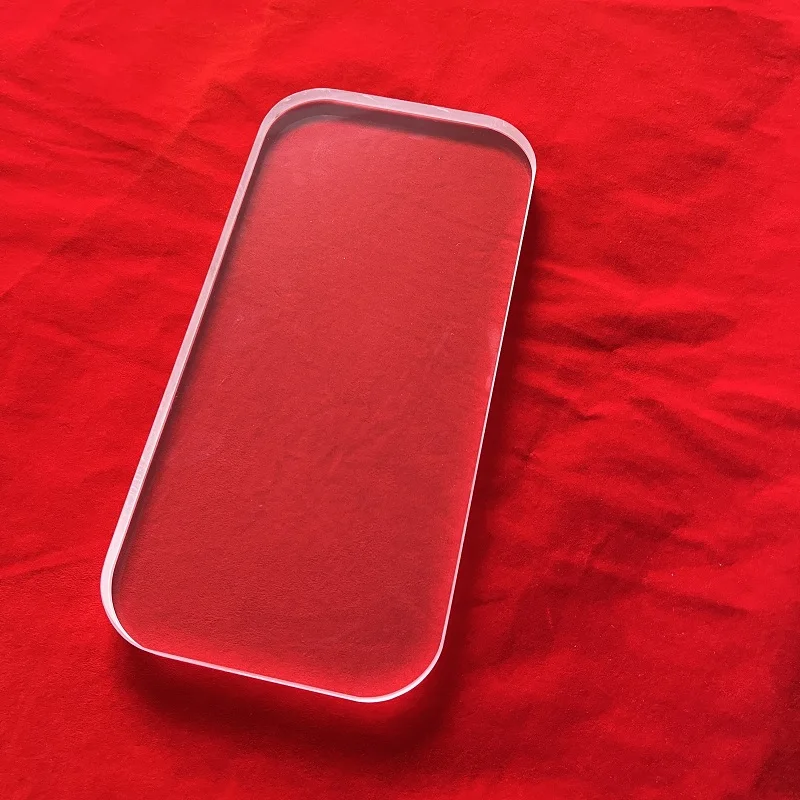

Quartz glass plate
Quartz sheets, usually smelted and cut by quartz, have a silica content of over 99.99%. The hardness is 6.5 grades of Mohs, and it
has the characteristics of high temperature resistance, low thermal expansion coefficient, thermal shock resistance and good
electrical insulation performance. It is usually colorless and transparent, and its visible light transmittance is 85% or more.
has the characteristics of high temperature resistance, low thermal expansion coefficient, thermal shock resistance and good
electrical insulation performance. It is usually colorless and transparent, and its visible light transmittance is 85% or more.
Advantage of Quartz Glass Plate:
Material properties:1.Both side polished 2.Can do flame polishing
3.Broad Transmission Spectrum
4.Low Thermal Expansion Coefficient
5.Vaulted quartz plate can work long time with 1100°C
6.clear quartz plate
softening point:1730°C=3146°F Annealing point:1180°C=2156°F
7.clear Vaulted quartz plate
strain point:1075°C=1967°F
8.No bubble, no airline
9.High Corrosion Resistance transmission of visible light>90%
3.Broad Transmission Spectrum
4.Low Thermal Expansion Coefficient
5.Vaulted quartz plate can work long time with 1100°C
6.clear quartz plate
softening point:1730°C=3146°F Annealing point:1180°C=2156°F
7.clear Vaulted quartz plate
strain point:1075°C=1967°F
8.No bubble, no airline
9.High Corrosion Resistance transmission of visible light>90%
JGS1( High-purity UV optical quartz glass)
JGS1 optical quartz glass plate is a very good kind of light transmission glass,
because it nearly has no any air-bubbles in glass. At 185nm wavelength, the UV transmission can be up to 90%. JGS1 is generally
used in the range of 185-2500nm wavelength.
because it nearly has no any air-bubbles in glass. At 185nm wavelength, the UV transmission can be up to 90%. JGS1 is generally
used in the range of 185-2500nm wavelength.
JGS2 (UV quartz glass)
JGS2 quartz glass plate has little air-bubbles in glass, and is generally used as heat-resistant glass.
If used as optical glass, its transmission wavelength is 220-2500nm.
If used as optical glass, its transmission wavelength is 220-2500nm.
JGS3 (Infrared quartz glass)
It has a good performance of infrared light transmission with a transmittance of over 85%. It is
recommended for applications in the wavelength range of 260-3500nm.
recommended for applications in the wavelength range of 260-3500nm.
We supply all kind quartz product, containing: quartz glass tube, quartz glass plate, quartz glass crucible, quartz glass cuvette and all kinds quartz labware. If you need sample, please contact us.
Chemical composition (unit:ppm) | ||||||||||||||||||
Al | Fe | K | Li | Cu | Na | B | Ca | Mg | OH | |||||||||
20 | 0.4 | 1 | 1.4 | 0.01 | 1.5 | 0.2 | 0.5 | 0.05 | 120-260 | |||||||||
Technical Data of Clear Quartz Glass Plate | ||||
Property Content | Unit | Property Index | ||
Density | g/cm³ | 2.21 | ||
Tensile Strength | Pa(N/?O) | 4.9×107 | ||
Compression Strength | Pa | >1.1×109 | ||
Coefficient of Thermal Expansion | cm/cm?? | 5.5×10-7 | ||
Thermal Conductivity | W/m?? | 1.4 | ||
Specific Heat | J/kg?? | 680 | ||
Softening Point | ?? | 1700 | ||
Annealing Point | ?? | 1210 | ||
Company Profile
Introduction
Based on quartz and ceramics, after more than 20 years development, Highborn Group has grown up to a modern enterprise in research, manufacture, processing and sales. We are mainly supplying quartz glass, cuvette, precise ceramics, porous ceramics,thick film resistor, ozone generator, metal fiber felt, polyester fiber cotton products and we have been offering our products and services to our clients from more than 108 countries or regions.
We can offer not only qualified products, we can also supplying quality service including design, development, export and after sales. With our professional skills, advanced technology and quality material, we can design and develop new products or new applications according to the clients’ expectation. We have custom-made new products and promoted the specifications for more than
1000 clients, and we have gotten good reputation from our clients .
1000 clients, and we have gotten good reputation from our clients .
Certification
Highborn Group is paying great attention to the product quality and technology research all the time. We have passed ROHS, CE,MSDS tests and also the ISO9001 authentication. We have 8 registered trademark and 25 patents. Also in 2020, we won the title of China High-tech Enterprise and Jiangsu Private Science and Technology Enterprises.
CE,ROHS,MSDS,POSI CERTIFICATIONS
OUR PATENTS
Our Service
Packing & Delivery
Packing Details: | We will packing by plastic/ polybay and bubble bags first , and then into the foam box,finally into the wooden cases/ carton/pallet or customized package.Every package can be offered with English installation instruction. |
Delivery Details | We can deliver by any courier, eg, TNT, UPS, FedEx, EMS etc.We can also by air, sea etc.We can choose the way according to the requirements of customers to ensure the most safe, efficient and convenient transportation. |
FAQ
1??What products and service can you offer us?
Answer: With the development more than 20 years, now we have 6 business division and
we are supplying Quartz Glass (Tube, Rod, Plate and customized parts), optical glass and cuvette, and also various precise ceramics, porous ceramics and refractory ceramics. We have the full processing line for ceramic thick film resistors, far infrared ceramic glass heating panel, quartz tube/ceramic plate ozone generator, porous metal fiber felt and polyester fiber cotton products. For all the products, we can design and customize according to the clients’ demand.
we are supplying Quartz Glass (Tube, Rod, Plate and customized parts), optical glass and cuvette, and also various precise ceramics, porous ceramics and refractory ceramics. We have the full processing line for ceramic thick film resistors, far infrared ceramic glass heating panel, quartz tube/ceramic plate ozone generator, porous metal fiber felt and polyester fiber cotton products. For all the products, we can design and customize according to the clients’ demand.
2: Before mass order, can you offer samples? How will you charge for them?
Answer: We are willing to offer samples to lower your purchasing risk. Generally, if from inventory, we can deliver out within 3 days, however if need processing, we can deliver out within 15 days. For some difficult items, the delivery time will be decided by its grade of difficulty. For some low value items, we can offer free sample, however we would like you to afford the freight cost. For customized products, we need to charge the developing cost.
Answer: We are willing to offer samples to lower your purchasing risk. Generally, if from inventory, we can deliver out within 3 days, however if need processing, we can deliver out within 15 days. For some difficult items, the delivery time will be decided by its grade of difficulty. For some low value items, we can offer free sample, however we would like you to afford the freight cost. For customized products, we need to charge the developing cost.
3: What test report or certificate can you offer?
achievements have you made in research and development? Answer: Till the end of 2021, we have passed many ROHS, CE, MSDS tests and also the ISO9001 authentication. We have 8 registered trademark and 25 patents. Also we won the title of China High-tech Enterprise and Jiangsu Private Science and Technology Enterprises.
achievements have you made in research and development? Answer: Till the end of 2021, we have passed many ROHS, CE, MSDS tests and also the ISO9001 authentication. We have 8 registered trademark and 25 patents. Also we won the title of China High-tech Enterprise and Jiangsu Private Science and Technology Enterprises.
4: Do you have any agent in our area?
products directly? Answer: Till the end of 2021, we haven’t authorized any company or person as our regional agent. From 2008, we have the export qualification and professional export team, and till the end of 2021, we have exporting our products to more than 108 countries and regions, and our clients can contact us and purchase our products or service directly. <
products directly? Answer: Till the end of 2021, we haven’t authorized any company or person as our regional agent. From 2008, we have the export qualification and professional export team, and till the end of 2021, we have exporting our products to more than 108 countries and regions, and our clients can contact us and purchase our products or service directly. <
