Customized 99.99% High Pure clear Crystal Fused Quartz Glass Rod Transparent Silica Glass Sheet
$20.00
Product Description

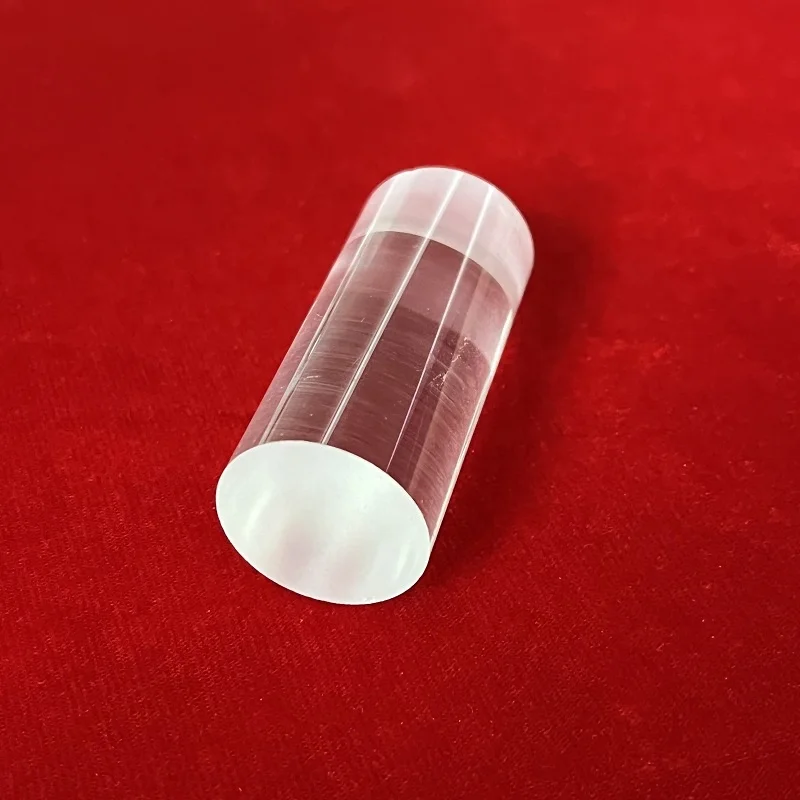

fused quartz glass rod
1. High temperature resistance glass can work under 1100°C continuously, and in short time can even work under 1450°C, its softening point is 1680°C.
2. Corrosion resistant. Except hydrofluoric acid, quartz tube do not react with any acid and base, the stability is 30 times of the ceramic and 150 times of stainless steel .
3. Excellent thermal shock stability .
4. High transmission to 90% .
5.Electric insulation, it is 10000 times of usual glass.
Main Application of quartz glass rod
Quartz glass can be used in electric light equipment,laboratory instruments lasers,semiconductor devices and
aerospace engineering.The applications cover chemical industry, metallurgy, building materials, national defense and many other fields.
aerospace engineering.The applications cover chemical industry, metallurgy, building materials, national defense and many other fields.
Technical Data of GE Clear Quartz Glass Tube | ||||
Property Content | Unit | Property Index | ||
Density | g/cm³ | 2.2 | ||
Tensile Strength | Pa(N/?O) | 4.8×107 | ||
Compression Strength | Pa | >1.1×109 | ||
Coefficient of Thermal Expansion(20??-300??) | cm/cm?? | 5.5×10-7 | ||
Thermal Conductivity(20??) | W/m?? | 1.4 | ||
Specific Heat(20??) | J/kg?? | 660 | ||
Softening Point | ?? | 1630 | ||
Annealing Point | ?? | 1180 | ||
Chemical element composition (Unit: ppm) | ||||||||||||||||||
Al | Fe | K | Li | Cu | Na | Ca | B | Mg | OH | |||||||||
17 | 1.6 | 3.8 | 0.74 | 0.1 | 1.8 | 1.7 | 0.02 | 1.5 | ≤150 | |||||||||
Company Profile
Based on quartz and ceramics, after more than 20 years development, Highborn Group has grown up to a modern enterprise in research, manufacture, processing and sales. We are mainly supplying quartz glass, cuvette, precise ceramics, porous ceramics, thick film resistor, ozone generator, metal fiber felt??polyester fiber cotton products , silicone rubber??concentrated essence aroma. and we have been offering our products and services to our clients from more than 116 countries or regions.
We can offer not only qualified products, we can also supplying quality service including design, development, export and after sales. With our professional skills, advanced technology and quality material, we can design and develop new products or new applications according to the clients’ expectation. We have custom-made new products and promoted the specifications for more than
1000 clients, and we have gotten good reputation from our clients .
1000 clients, and we have gotten good reputation from our clients .
Certifications
Highborn Group is paying great attention to the product quality and technology research all the time. We have passed ROHS??CE??MSDS??ISO??SGS??TÜV??LVD??FDA??EMC??FDA and also the ISO9001 authentication. We have 8 registered trademark and 40 patents. Also in 2020, we won the title of China High-tech Enterprise and Jiangsu Private Science and Technology Enterprises.
Product packaging
Our Advantages
Specialty | We are in arc quartz products field over ten years, full experience have. |
Profession | Good strength for both standard and custom design quartz tube. |
Good communication | We can give right communication upon your request and description. |
Efficiency | Promptly feedback within 24 hours. |
Why Choose Us
1, we can recommend the right material according your work performance. quartz glass or borosilicate glass or other heating glass?
2, our engineer is ok to make drawing for custom designs per your demand.
3, prompt reply and specialist feedback about your questions might have.
4,safety package by ply-wood box to avoid any broken when transportion.
5,prompt delivery time as promised.
FAQ
1??What products and service can you offer us?
Answer: With the development more than 20 years, now we have 11 business division
and we are supplying Quartz Glass (Tube, Rod, Plate and customized parts), optical glass and cuvette, and also various precise ceramics, porous ceramics and refractory ceramics. We have the full processing line for ceramic thick film resistors, far infrared ceramic glass heating panel, quartz tube/ceramic plate ozone generator ??porous metal fiber felt ?? polyester fiber cotton products
and silicone rubber??concentrated essence aroma. For all the products, we can design and customize according to the clients’ demand.
2: Before mass order, can you offer samples? How will you charge for them?
Answer: We are willing to offer samples to lower your purchasing risk. Generally, if from inventory, we can deliver out within 3 days, however if need processing, we can deliver out within 15 days. For some difficult items, the delivery time will be decided by its grade of difficulty. For some low value items, we can offer free sample, however we would like you to afford the freight cost. For customized products, we need to charge the developing cost.
3: What test report or certificate can you offer? What achievements have you made in research and development?
Answer: Till the end of 2021, we have passed ROHS??CE??MSDS??LVD??FDA??EMC tests and also the ISO9001 authentication??SGS??TÜV. We have 8 registered trademark and 40 patents. Also we won the title of China High-tech Enterprise and Jiangsu Private Science and Technology Enterprises.
4: Do you have any agent in our area? Can you export your products directly?
Answer: Till the end of 2024, we haven’t authorized any company or person as our regional agent. From 2008, we have the export qualification and professional export team, and till the end of 2024, we have exporting our products to more than 116 countries and regions, and our clients can contact us and purchase our products or service directly.
5: If the quality can not meet the requirement or any loss during the freight, how should we do? Answer: We have strict QC test and professional QC team. We are always offering qualified products. If anything goes wrong, the quality can not meet requirement on the contract, we will reproduce the qualified products or refund the payment. We have the professional packing team and will pack the product in safe package for long distance delivery. If any loss during the freight, we hope you can assistant us to claim from the logistics company and we will arrange the replacement accordingly.
and we are supplying Quartz Glass (Tube, Rod, Plate and customized parts), optical glass and cuvette, and also various precise ceramics, porous ceramics and refractory ceramics. We have the full processing line for ceramic thick film resistors, far infrared ceramic glass heating panel, quartz tube/ceramic plate ozone generator ??porous metal fiber felt ?? polyester fiber cotton products
and silicone rubber??concentrated essence aroma. For all the products, we can design and customize according to the clients’ demand.
2: Before mass order, can you offer samples? How will you charge for them?
Answer: We are willing to offer samples to lower your purchasing risk. Generally, if from inventory, we can deliver out within 3 days, however if need processing, we can deliver out within 15 days. For some difficult items, the delivery time will be decided by its grade of difficulty. For some low value items, we can offer free sample, however we would like you to afford the freight cost. For customized products, we need to charge the developing cost.
3: What test report or certificate can you offer? What achievements have you made in research and development?
Answer: Till the end of 2021, we have passed ROHS??CE??MSDS??LVD??FDA??EMC tests and also the ISO9001 authentication??SGS??TÜV. We have 8 registered trademark and 40 patents. Also we won the title of China High-tech Enterprise and Jiangsu Private Science and Technology Enterprises.
4: Do you have any agent in our area? Can you export your products directly?
Answer: Till the end of 2024, we haven’t authorized any company or person as our regional agent. From 2008, we have the export qualification and professional export team, and till the end of 2024, we have exporting our products to more than 116 countries and regions, and our clients can contact us and purchase our products or service directly.
5: If the quality can not meet the requirement or any loss during the freight, how should we do? Answer: We have strict QC test and professional QC team. We are always offering qualified products. If anything goes wrong, the quality can not meet requirement on the contract, we will reproduce the qualified products or refund the payment. We have the professional packing team and will pack the product in safe package for long distance delivery. If any loss during the freight, we hope you can assistant us to claim from the logistics company and we will arrange the replacement accordingly.
