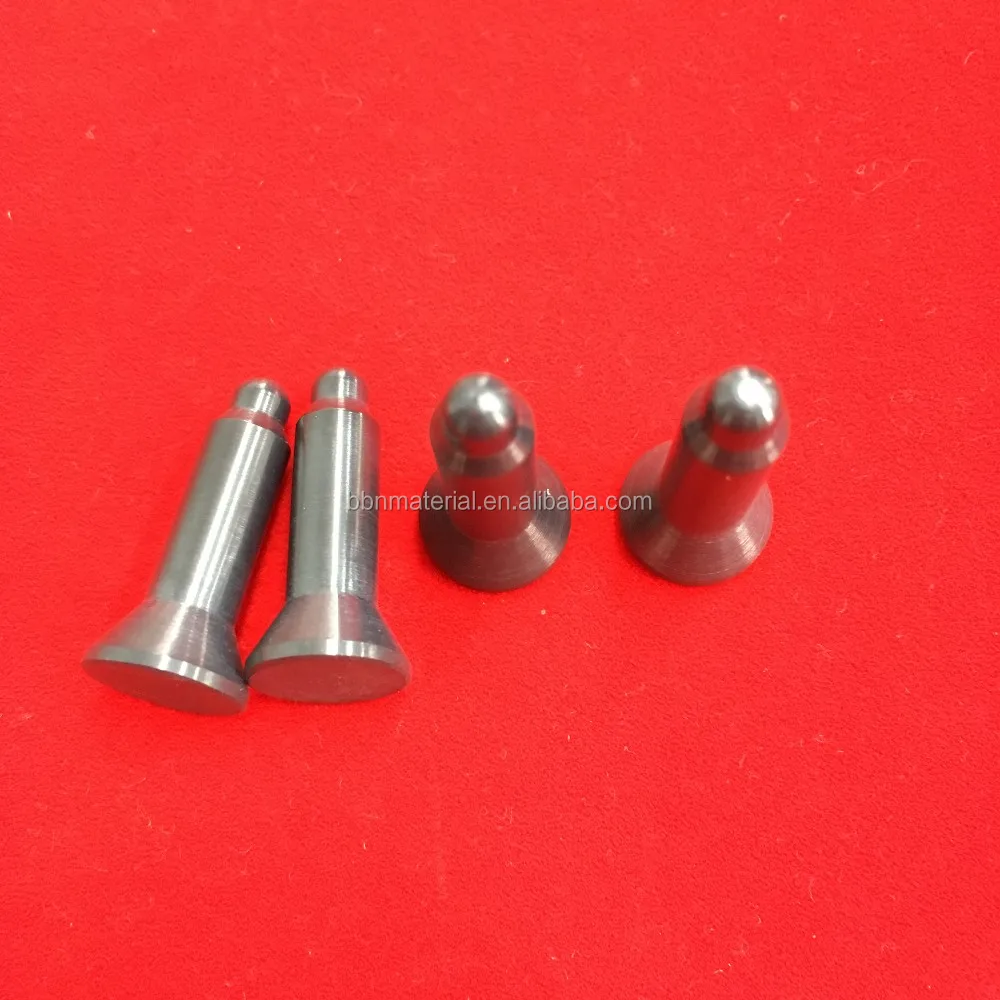

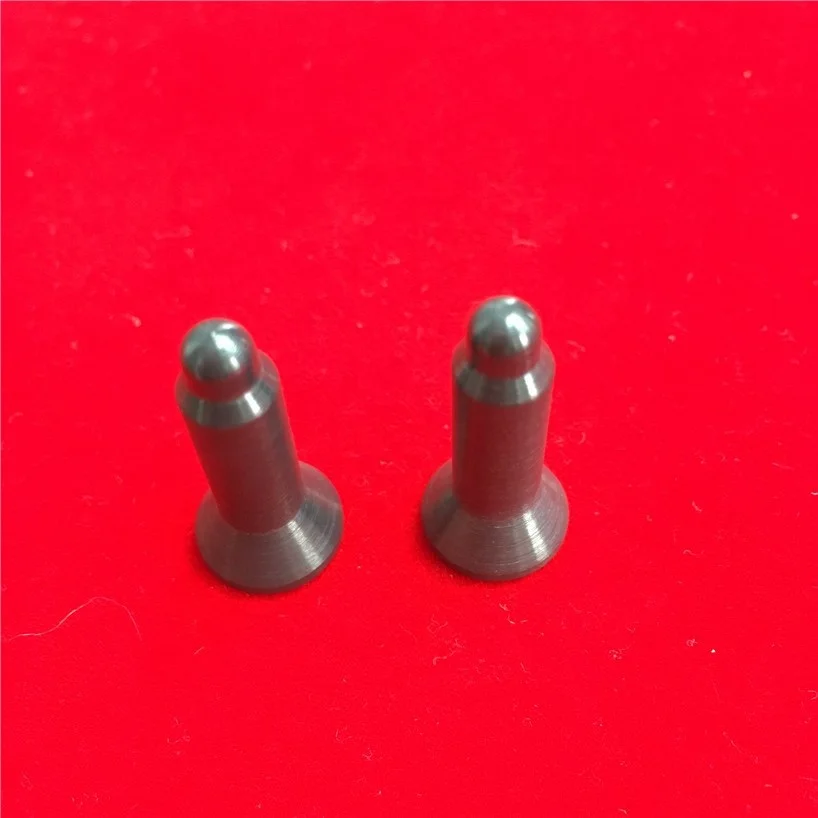

High Precision Si3N4 Silicon Nitride Ceramic Location Guide Pins
$10.00
Products Description
Product Name | High Precision Si3N4 Silicon Nitride Ceramic Location Guide Pins |
Material | silicon nitride |
Function | wear resistance and Kiln and Metallurgy |
Package | synthetic wooden case padded with foams |
Payment method | T/T,Western Union,Online payment by credit card are available |
Delivery time | 1.Stock:delivery within 3-5 days after receiving your payment. 2. OEM/ODM:The normal Lead time is 15-45 days, which depends on your quantiy. |
Introduction of Si3N4 :
Silicon Nitride Si3N4 Ceramic is one kind of technical ceramic materials which has very good performance in high temperatrue, its
mechanical strength can be kept up to 1200??. Its hardness and wear resistance performance ranks high among all technical ceramic
materials.
mechanical strength can be kept up to 1200??. Its hardness and wear resistance performance ranks high among all technical ceramic
materials.
Advantages of Si3N4 Ceramic Pulley :
1. Excellent thermal shock resistance
2. Ability to withstand high structural loads to high temperature
3. Superior wear resistance
4. Unusually high fracture toughness
2. Ability to withstand high structural loads to high temperature
3. Superior wear resistance
4. Unusually high fracture toughness
5. High strength over a broad temperature range
6.Moderate thermal conductivity
7. Low coefficient of thermal expansion
8. Moderately high elastic modulus
6.Moderate thermal conductivity
7. Low coefficient of thermal expansion
8. Moderately high elastic modulus
Application of Silicon Nitride:
Bearings: Full complement bearings, hybrid ceramic bearings (balls and races).
Wear Parts: Pump seals, nozzles, valve seats, liners, guides.
Automotive: Turbocharger rotors, rocker arm pads, fuel injector components.
Electronics: Wafer processing fixtures, insulating substrates, vacuum chucks.
Aerospace & Defense: Radome components, guidance system parts.
Wear Parts: Pump seals, nozzles, valve seats, liners, guides.
Automotive: Turbocharger rotors, rocker arm pads, fuel injector components.
Electronics: Wafer processing fixtures, insulating substrates, vacuum chucks.
Aerospace & Defense: Radome components, guidance system parts.
Technical data sheet
??????
Silicon nitride
??Ŀ Item | ??ѹ?ս? gas pressure sintering | ??ѹ?ս? hot pressing sintering | ??Ӧ?ս? reactive sintering | ??ѹ?ս? pressureless sintering | ||
????Ӳ?? Rockwell hardness (HRA) | ≥75 | – | ??80 | 91-92 | ||
????ܶ? volume density(g/cm3) | 3.25 | ??3.25 | 1.8-2.7 | 3.0-3.2 | ||
??糣?? Dielectric constant ( ε r20?? ??1MHZ) | – | 8.0(1MHz) | – | – | ||
?????? electric volume resistivity( Ω .cm) | 1014 | 108 | – | – | ||
???????? breaking tenacity(Mpa m1/2) | 6-9 | 6-8 | 2.8 | 5-6 | ||
????ģ?? Elasticity modulus (GPa) | 300-320 | 300-320 | 160-200 | 290-320 | ||
??????ϵ?? thermal expansivity (m/K *10-6/??) | 3.1-3.3 | 3.4 | 2.53 | 600 | ||
?ȵ??? thermal conductivity (W/MK) | 15-20 | 34 | 15 | – | ||
Τ??ģ?? weibull modulus (m) | 12-15 | 15-20 | 15-20 | 10-18 | ||
*The above parameters are for reference only. | ||||||
??ע?????????ݽ????ο???
Note: The above data is only for your reference.
Note: The above data is only for your reference.
