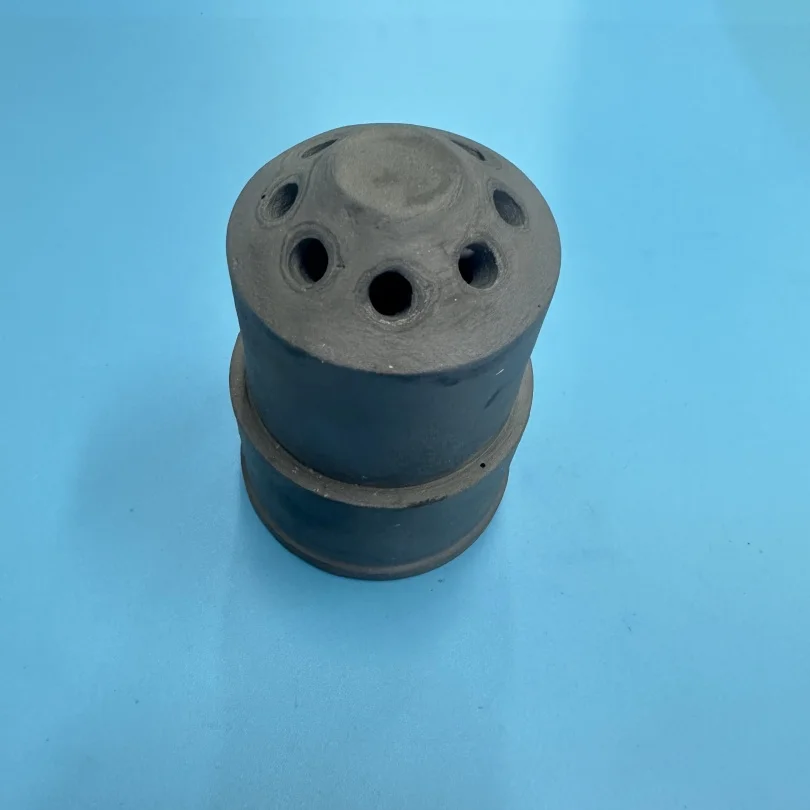

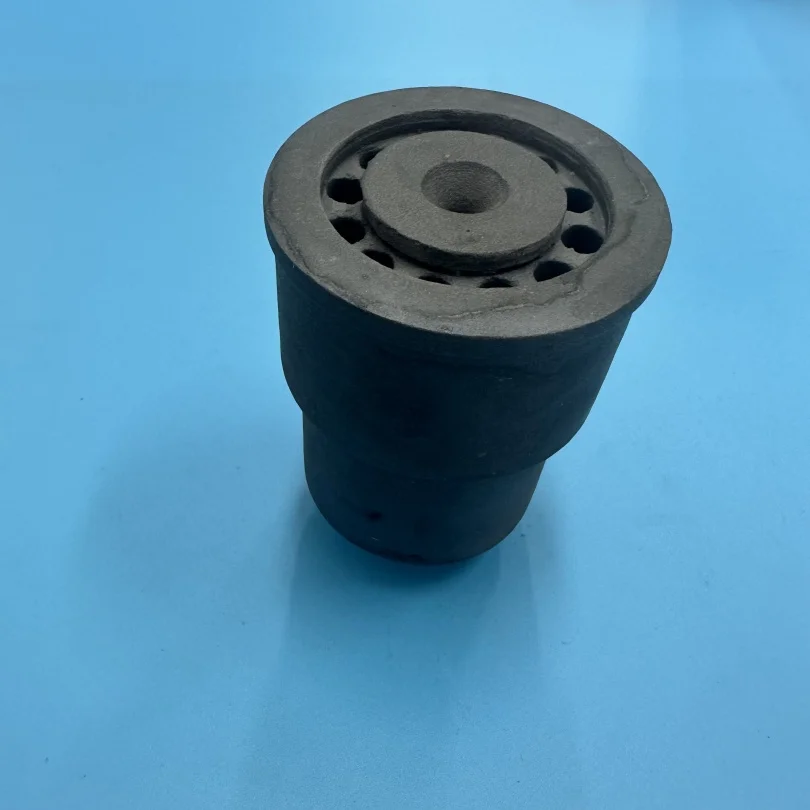

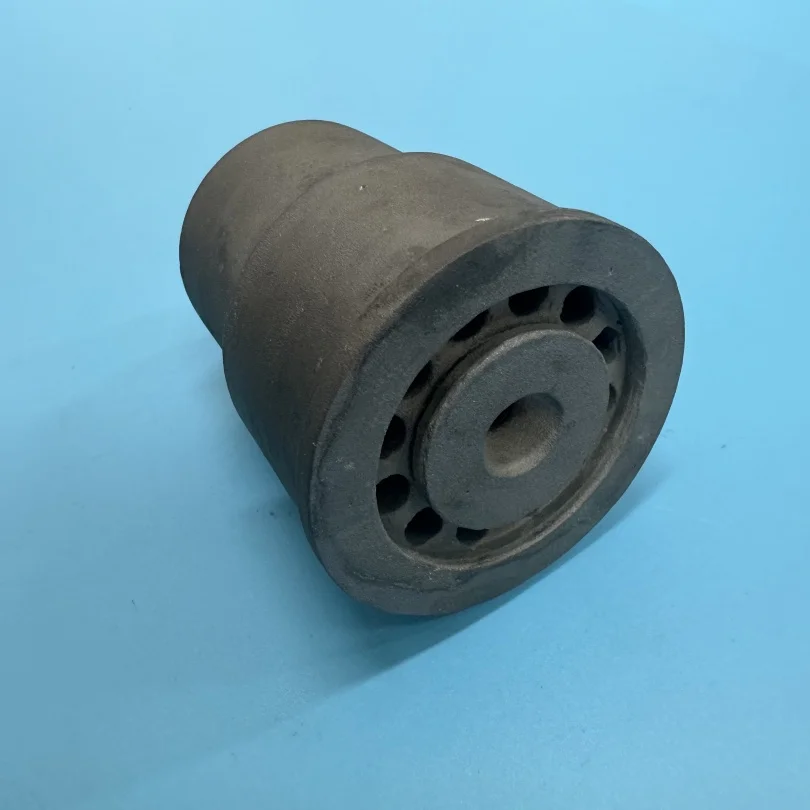

High Temperature Resistance SiC Ceramic Cylinder Silicon Carbide Ceramic Hollow Housing

Name: High Temperature Resistance SiC Ceramic Cylinder Silicon Carbide Ceramic Hollow Housing
SKU: 37450
Availability: InStock

$35.00

Add to wishlist

Add to compare

SKU: N/A Category: Silicon Carbide Ceramics

Description

Product Description

Product Name	SSIC ring silicon carbide ceramic mechanical wafer
Material	SIC
Key words	silicon carbide ceramic ring
Advantage	High temperature resistance

SIC ceramic Introduction

Silicon carbide Ceramic is one kind of technical ceramic materials which has very good performance in high temperature, its mechanical strength can be kept up to 1600??. Its hardness and wear resistance performance ranks high among all technical ceramic materials.

SIC Features

1. Excellent thermal shock resistance

2. Ability to withstand high structural loads to high temperature

3. Superior wear resistance

4. Unusually high fracture toughness

Silicon carbide ceramic Advantages

1. High strength over a broad temperature range
2.Moderate thermal conductivity
3. Low coefficient of thermal expansion
4. Moderately high elastic modulus

Technical date of silicon carbide(SIC)
Item	SSIC	RBSIC/SISIC	RSIC
Max temperature of application	1600??	1300??	1650??
Density	??3.13g/cm3	??3.03g/cm3	??2.6g/cm3
Open Porosity	??0.2%	??0.2%	15.00%
Thermal Conductivity	120~150W/mk	90~110W/mk	24W/mk
Hardness	9.2~9.4HRA	9.1~9.3HRA
Acid Alkaline-proof	Excellent	Excellent	Excellent
Coefficient of thermal expansion	4.0 K -1 x10 -6	4.0 K -1 x10 -6	4.8 K -1 x10 -6
Bending strength	≥400Mpa	≥350Mpa	90~100Mpa(20?棩
Bending strength				100~120Mpa(1100?棩
Modulus of elasticity	400Gpa	350Gpa	240Gpa

You May Like

Company Introduction

Based on quartz and ceramics, after more than 20 years development, Highborn Group has grown up to a modern enterprise in research, manufacture, processing and sales. We are mainly supplying quartz glass, cuvette, precise ceramics, porous ceramics, thick film resistor, ozone generator, metal fiber felt and we have been offering our products and services to our clients from more than 128 countries or regions.

Highborn Group is paying great attention to the product quality and technology research all the time. We have passed ROHS, CE, MSDS tests and also the ISO9001 authentication. We have 8 registered trademark and 25 patents. Also in 2020, we won the title of China High-tech Enterprise and Jiangsu Private Science and Technology Enterprises.

We can offer not only qualified products, we can also supplying quality service including design, development, export and after sales. With our professional skills, advanced technology and quality material, we can design and develop new products or new applications according to the clients’ expectation. We have custom-made new products and promoted the specifications for more than 1000 clients, and we have gotten good reputation from our clients.

Certification

Packing&Shipping

Regarding the package,we usually use carton and wooden box with bubble wrap.If you need special package,please inform us the detailed information of package kindly,we will pack them according to your requirements.
