High Temperature Resistance SiC Rod Silicon Carbide Ceramic Insulating bar
$25.00
Product Description
Product Name | Wear resistance 96% Al2O3 plate alumina ceramic insulating substrate |
Material | SIC |
Key words | Silicon Carbide Ceramic rod |
Advantage | High temperature resistance |
SIC rod introduction
Silicon carbide Ceramic is one kind of technical ceramic materials which has very good performance in high temperature, its mechanical strength can be kept up to 1600??. Its hardness and wear resistance performance ranks high among all technical ceramic materials.

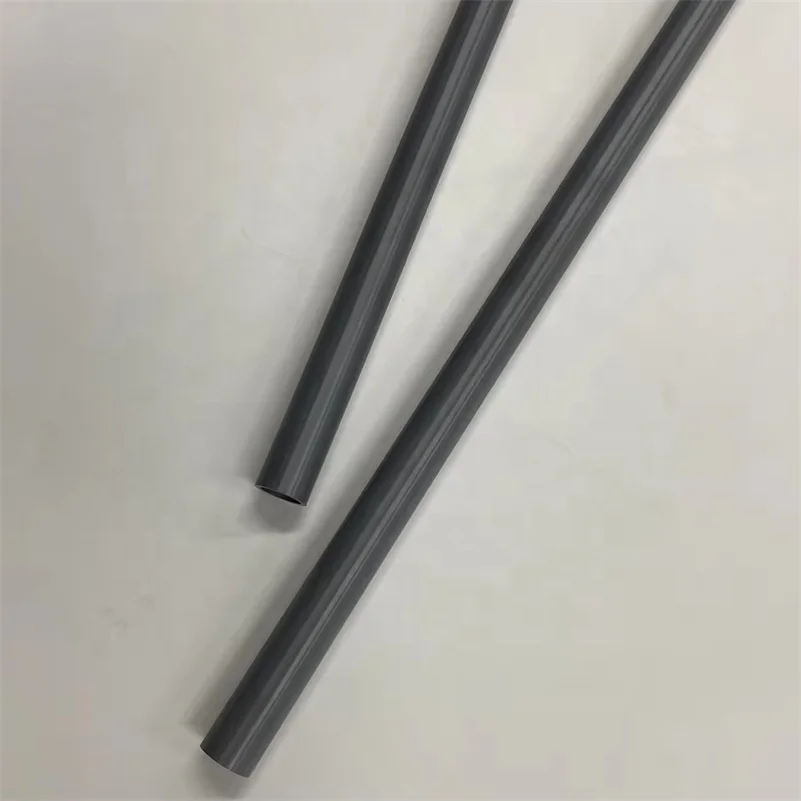

SIC rod
Features
1. Excellent thermal shock resistance
2. Ability to withstand high structural loads to high temperature
3. Superior wear resistance
4. Unusually high fracture toughness

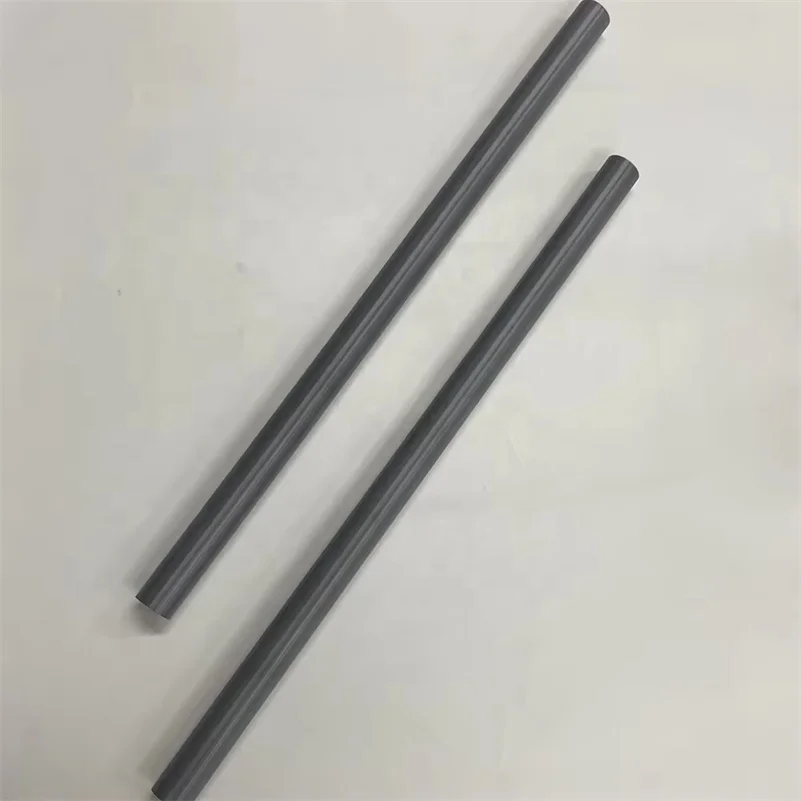

SIC ceramic rod
2.Moderate thermal conductivity
3. Low coefficient of thermal expansion
4. Moderately high elastic modulus
Technical date of silicon carbide(SIC) | ||||||
Item | SSIC | RBSIC/SISIC | RSIC | |||
Max temperature of application | 1600?? | 1300?? | 1650?? | |||
Density | ??3.10g/cm3 | ??3.03g/cm3 | ??2.6g/cm3 | |||
Open Porosity | ??0.1% | ??0.1% | 15.00% | |||
Thermal Conductivity | 74W/mk | 45W/mk | 24W/mk | |||
Hardness | 9.2~9.4HRA | 9.1~9.3HRA | ||||
Acid Alkaline-proof | Excellent | Excellent | Excellent | |||
Coefficient of thermal expansion | 4.0 K -1 x10 -6 | 4.0 K -1 x10 -6 | 4.8 K -1 x10 -6 | |||
Bending strength | ≥400Mpa | ≥350Mpa | 90~100Mpa(20?棩 | |||
100~120Mpa(1100?棩 | ||||||
Modulus of elasticity | 400Gpa | 350Gpa | 240Gpa | |||
Company Introduction
Based on quartz and ceramics, after more than 20 years development, Highborn Group has grown up to a modern enterprise in research, manufacture, processing and sales. We are mainly supplying quartz glass, cuvette, precise ceramics, porous ceramics, thick film resistor, ozone generator, metal fiber felt??polyester fiber cotton products and we have been offering our products and services to our clients from more than 112 countries or regions.
Highborn Group is paying great attention to the product quality and technology research all the time.We have passed ROHS, CE, MSDS tests and also the ISO9001 authentication. We have 8 registered trademark and 25 patents. Also in
2020, we won the title of China High-tech Enterprise and Jiangsu Private Science and Technology Enterprises.
2020, we won the title of China High-tech Enterprise and Jiangsu Private Science and Technology Enterprises.
We can offer not only qualified products, we can also supplying quality service including design,development, export and after sales. With our professional skills, advanced technology and quality material, we can design and develop new products or new applications according to the clients’ expectation. We have custom-made new products and promoted the specifications for more than 1000 clients, and we have gotten good reputation from our clients.
Certification
Patent
Honor
Certificate
Packing&Shipping
Regarding the package,we usually use carton and wooden box with bubble wrap.If you need special package,please inform us the detailed information of package kindly,we will pack them according to your requirements.
Regarding the delivery,we support each courier to send you our products.Such as, UPS, TNT, FEDEX, DHL ,SF and so on.
