Industrial Abrasive Silicon Carbide Grinding Ball SiC Ceramic Bead
$500.00
Product Description
Product Name | Industrial high quality silicon carbide grinding ball SiC ceramic bead |
Material | silicon carbide |
Key words | ceramic grinding balls |
Advantage | High temperature resistance |
SIC balls Introduction
Silicon carbide Ceramic is one kind of technical ceramic materials which has very good performance in high temperature, its mechanical strength can be kept up to 1650??. Its hardness and wear resistance performance ranks high among all technical ceramic materials.

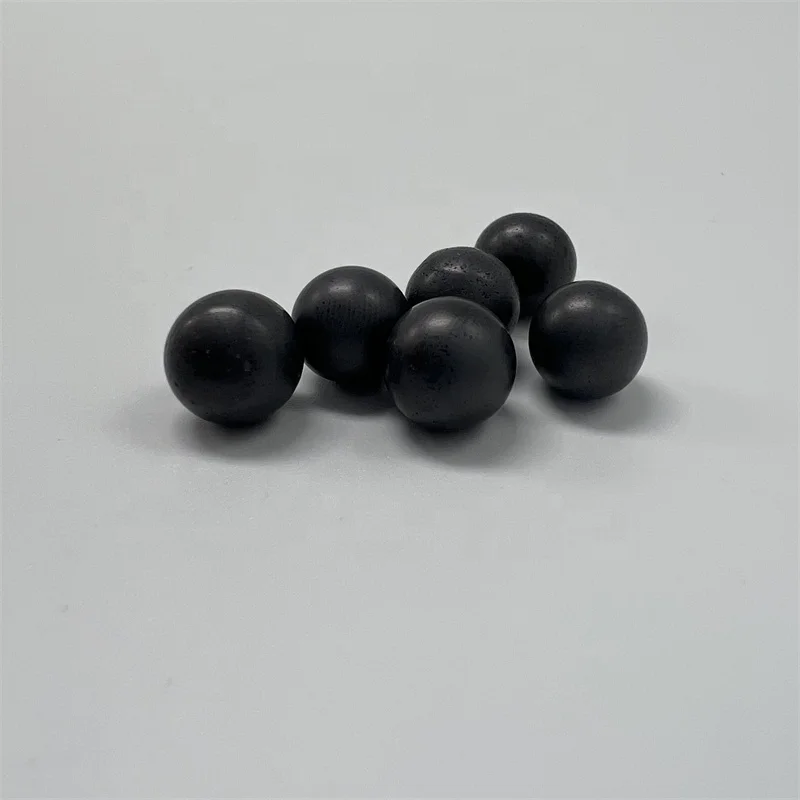

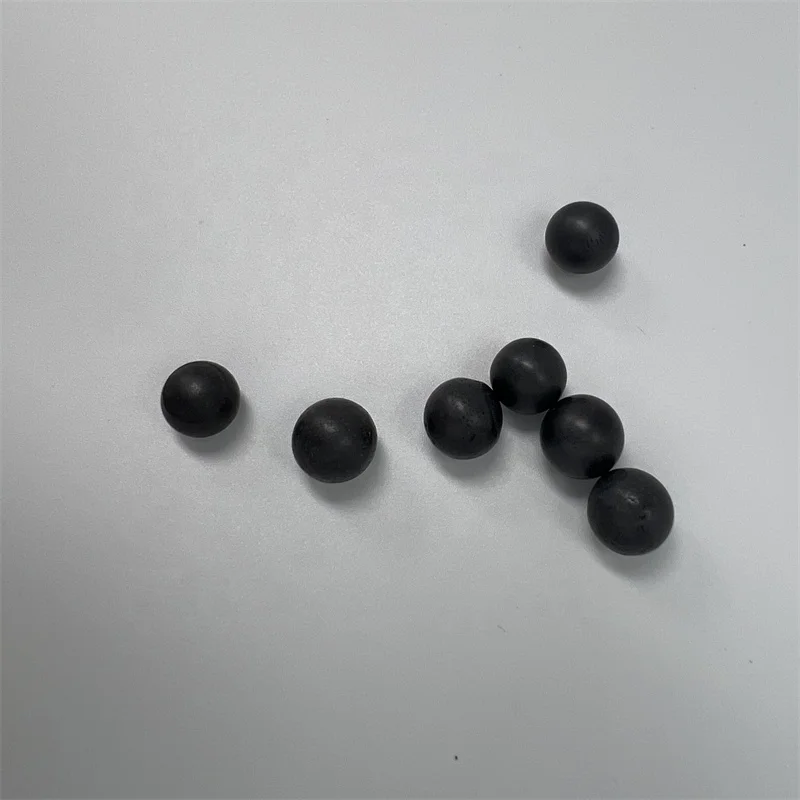

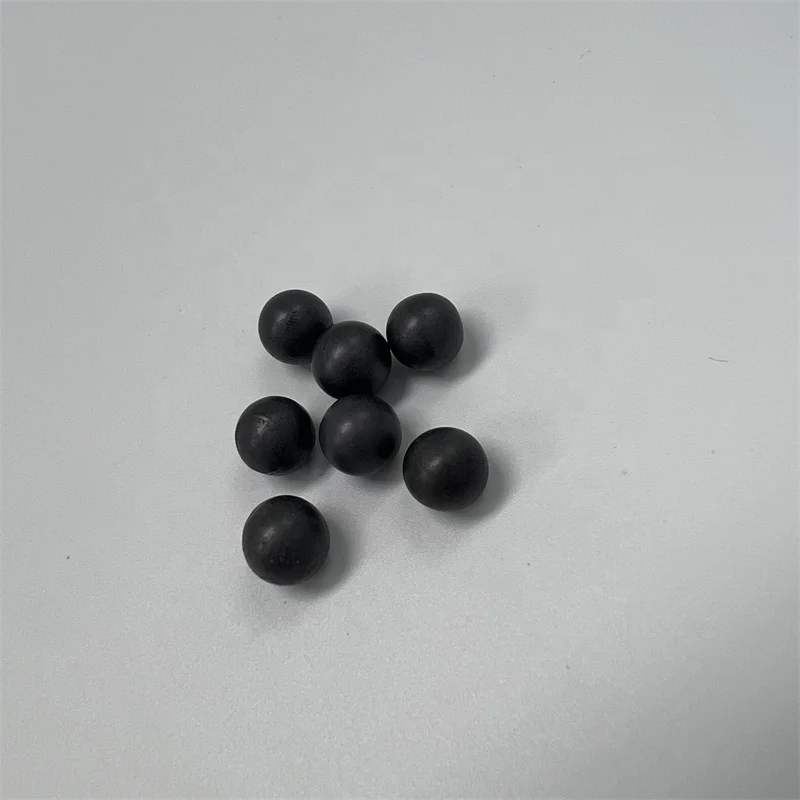

Silicon carbide ceramic balls
Other specifications can be customized with molds.
Stock size: 1.5-2mm, 3-3.5mm, 5.5mm, 6.5-7mm, 7-7.5mm, 8.5mm, 11.5-12mm, 15-15.5mm, 19-20mm, 26.5-27mm, 32.5-33mm, 40mm, 44mm, 60mm
Other specifications can be customized with molds.
SIC balls applications
Silicon carbide ceramics have gained a
wide range of applications in petroleum, chemical, microelectronics, automotive, aerospace, aviation, papermaking, laser, mining and atomic energy industries, etc. Silicon carbide has been widely used in high-temperature bearings, nozzles, high-temperature corrosion-resistant parts, and high-temperature and high-frequency range of electronic equipment partsand other fields.
Technical date of silicon carbide(SIC) | ||||||
Item | SSIC | RBSIC/SISIC | RSIC | |||
Max temperature of application | 1650?? | 1300?? | 1650?? | |||
Density | ??3.13g/cm3 | ??3.03g/cm3 | ??2.6g/cm3 | |||
Open Porosity | ??0.2% | ??0.2% | 15.00% | |||
Thermal Conductivity | 120~150W/mk | 90~110W/mk | 24W/mk | |||
Hardness | 9.2~9.4HRA | 9.1~9.3HRA | ||||
Acid Alkaline-proof | Excellent | Excellent | Excellent | |||
Coefficient of thermal expansion | 4.0 K -1 x10 -6 | 4.0 K -1 x10 -6 | 4.8 K -1 x10 -6 | |||
Bending strength | ≥400Mpa | ≥350Mpa | 90~100Mpa(20?棩 | |||
100~120Mpa(1100?棩 | ||||||
Modulus of elasticity | 400Gpa | 350Gpa | 240Gpa | |||
