Laboratory Fused Quartz Glass Crucible Silica Crucible for Melting
$10.00
Product Description

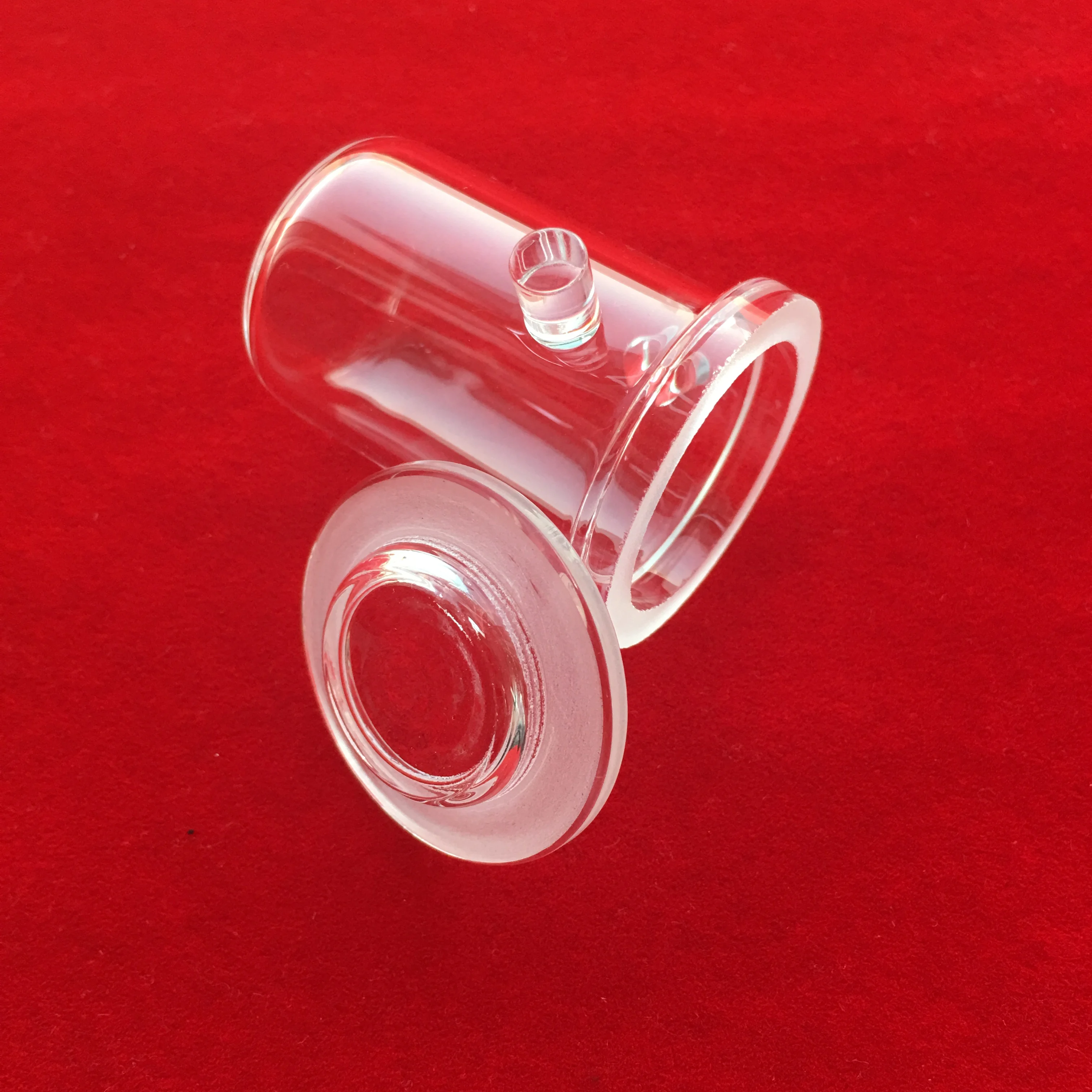

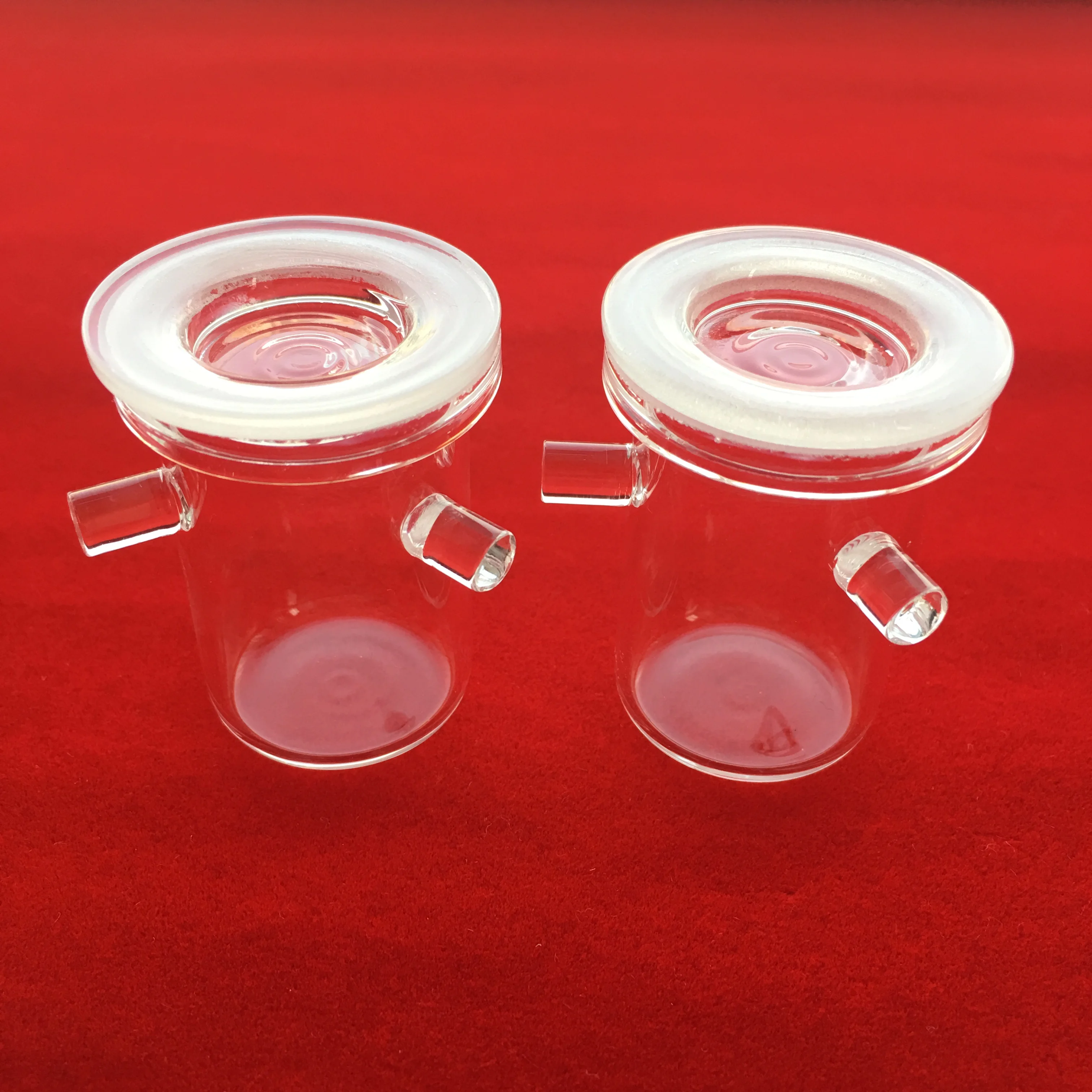

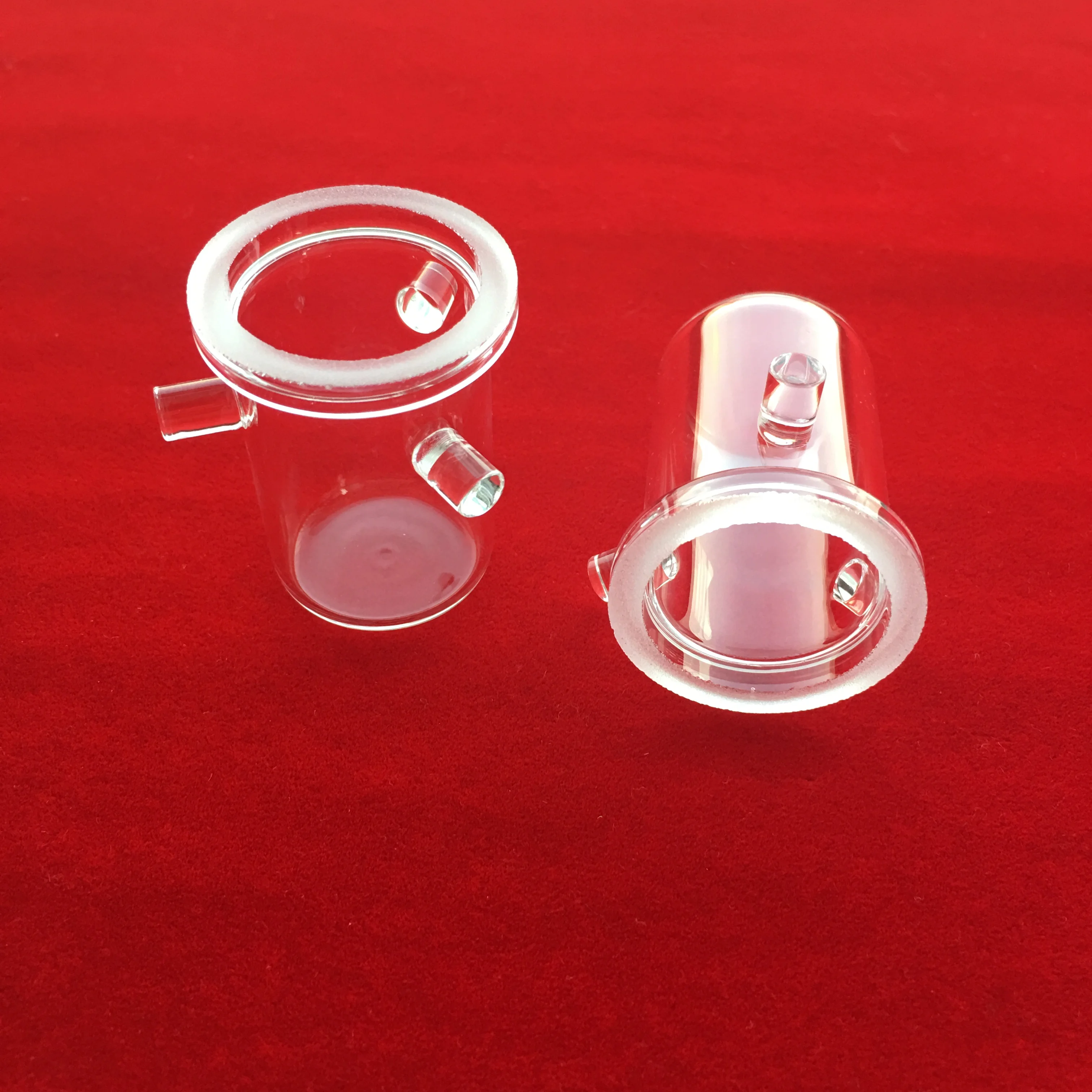

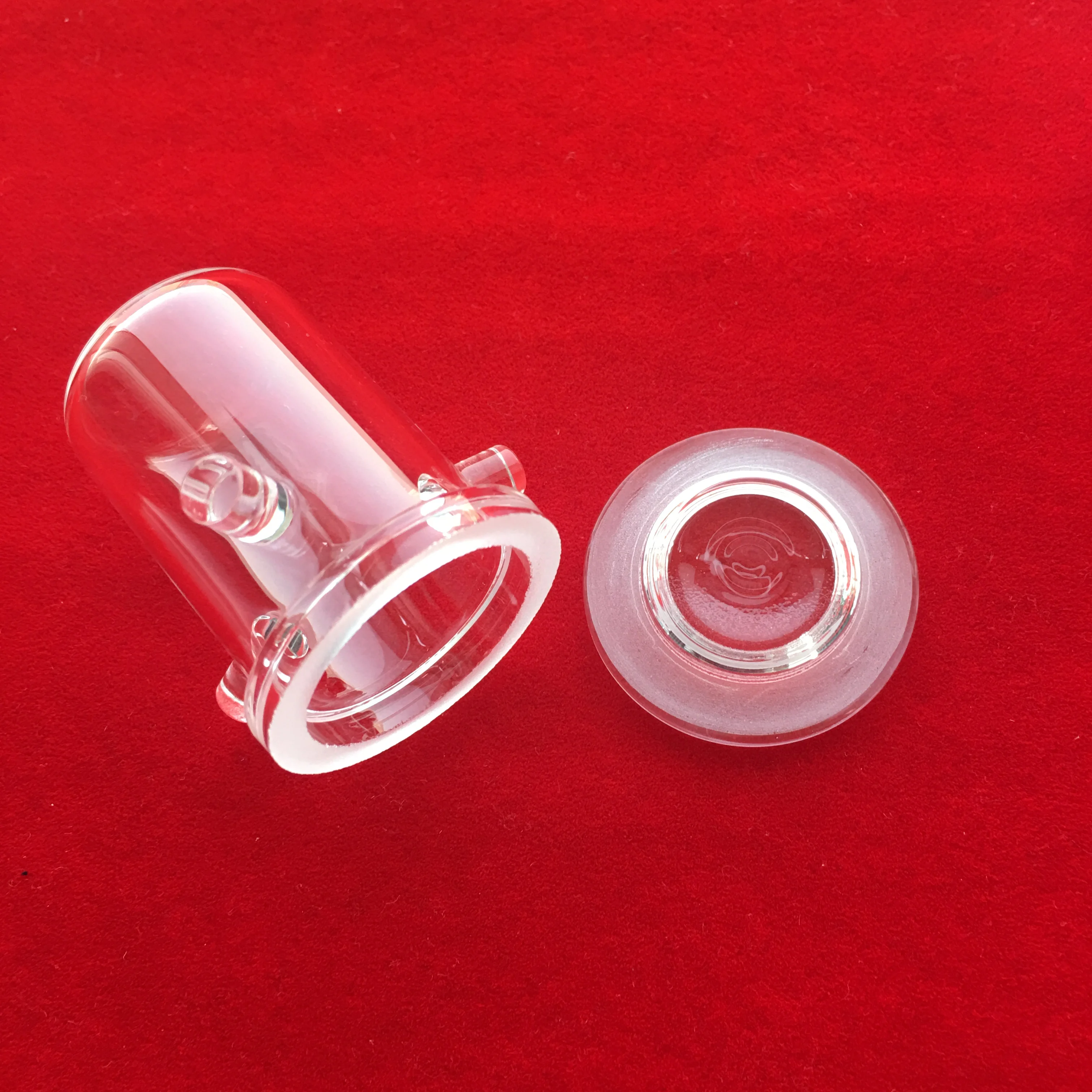

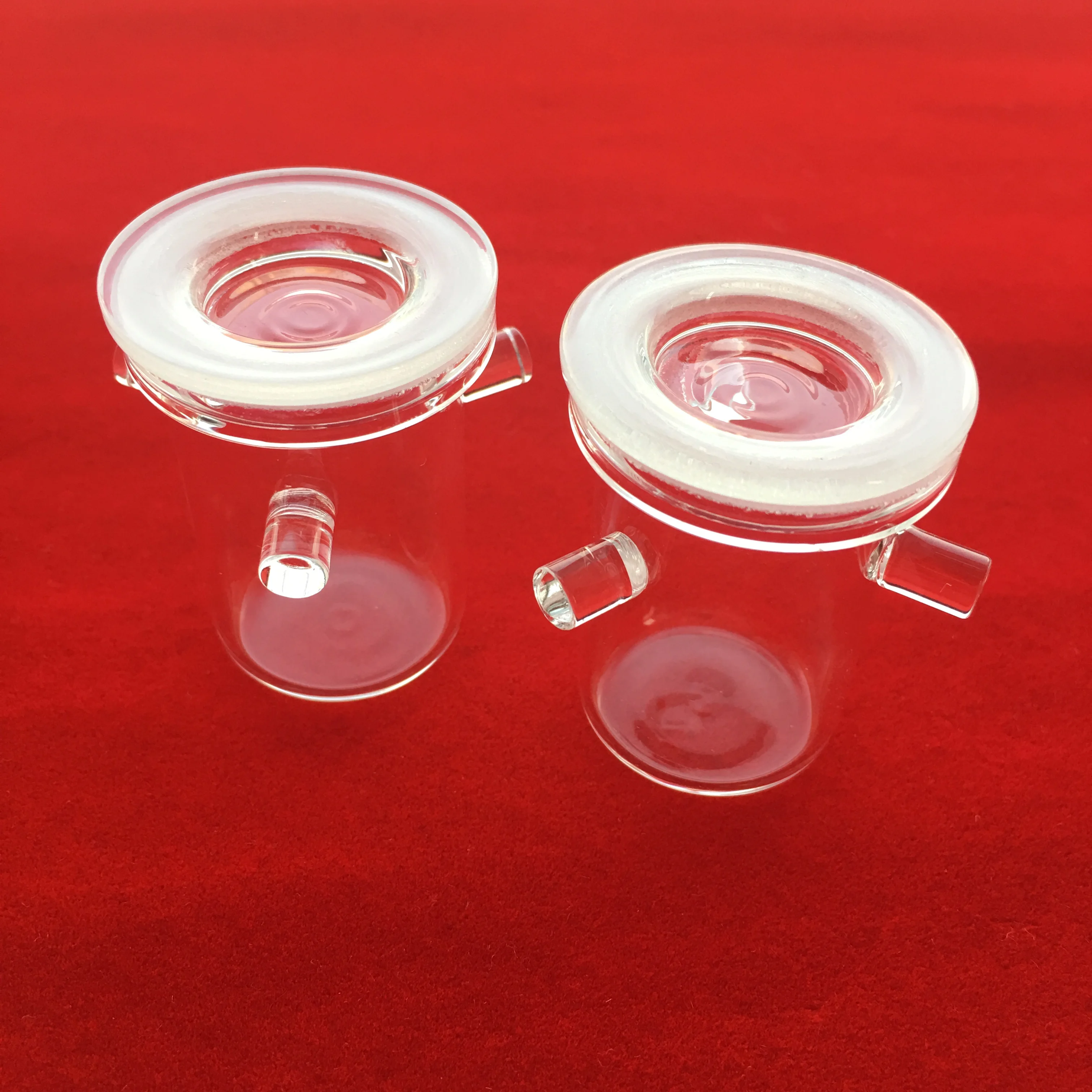

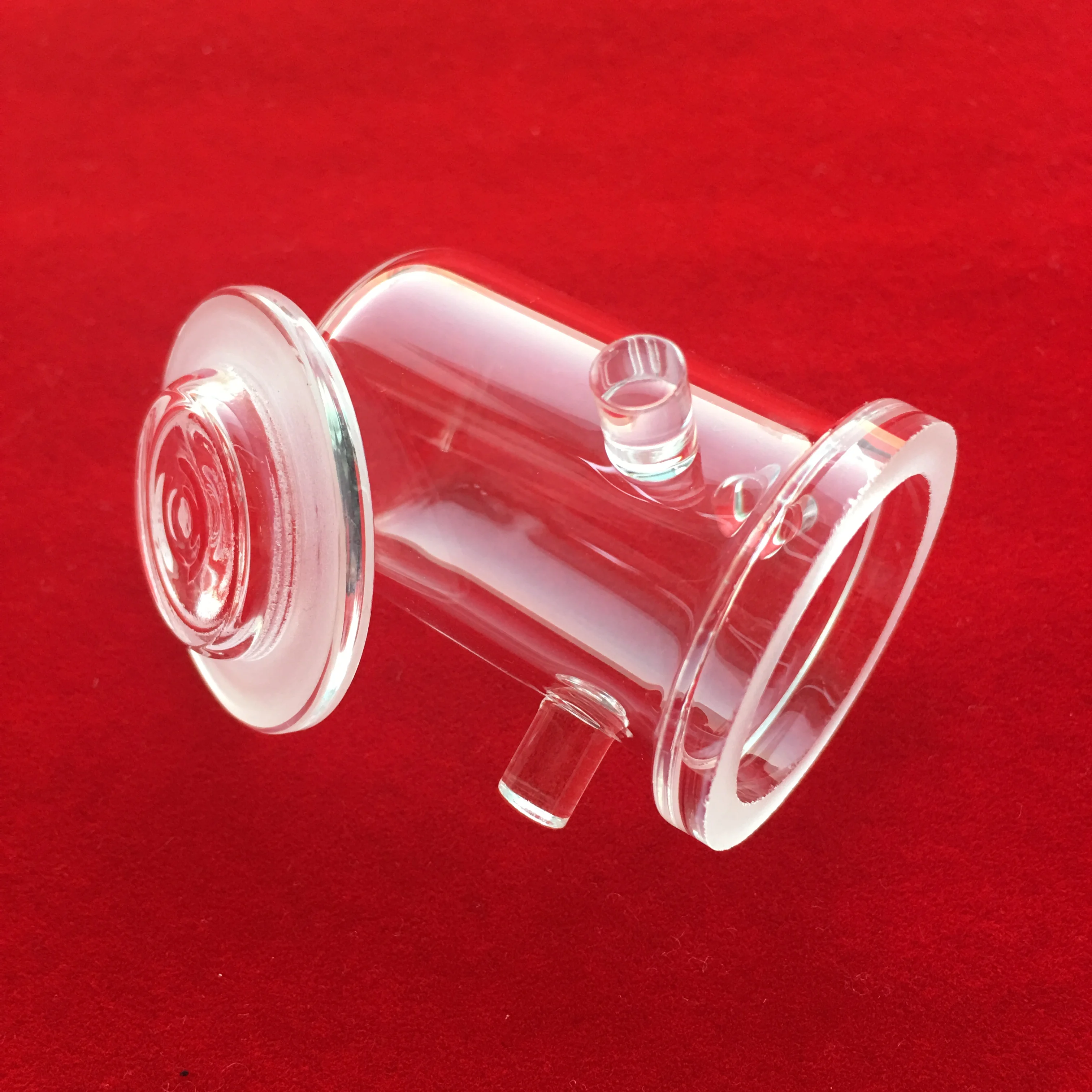

Quartz Glass Crucible
Quartz glass crucible is an important part of chemical instruments.
It is a container for melting and refining metal liquids as well as solid-liquid heating and reaction.
It is the basis for ensuring the smooth progress of chemical reactions.
Advantage of Quartz Crucible:
Material properties:
1.Both side polished
2.Can do flame polishing
3.Broad Transmission Spectrum
4.Low Thermal Expansion Coefficient
5.Vaulted quartz plate can work long time with 1100°C
5.Vaulted quartz plate can work long time with 1100°C
6.Softening point:1730°C=3146°F Annealing point:1180°C=2156°F
7.No bubble, no airline
7.No bubble, no airline
8.High Corrosion Resistance transmission of visible light>85%
Chemical composition (unit:ppm)
Al | Fe | K | Na | Cu | Li | B | Ca | Mg | OH |
20 | 0.4 | 1 | 1.5 | 0.01 | 1.4 | 0.2 | 0.5 | 0.05 | 120-260 |
Physical Properties:
Property Content | Unit | Property Index |
g/cm³ | 2.21 | |
Tensile Strength | Pa(N/?O) | 4.9×107 |
Compression Strength | Pa | >1.1×109 |
(20??-300??) Coefficient of Thermal Expansion | cm/cm?? | 5.5×10-7 |
Thermal Conductivity | W/m?? | 1.4 |
Softening Point | ?? | 1700 |
Annealing Point | ?? | 1210 |
1. Quartz crucible can be used below 1650 degrees, both transparent and opaque. The translucent quartz crucible made by the arc method is a large-diameter single crystal silicon, which is an indispensable basic material for the development of large-scale integrated circuits. Today, the world's semiconductor industry developed countries have used this to replace small transparent quartz crucibles. It has the advantages of high purity, high temperature resistance, large size, high precision, good heat preservation, energy saving and stable quality.
2, can not be in contact with HF, high temperature, it is easy to react with caustic and alkali metal carbonate.
3. The quartz crucible is suitable for melting the sample with K2S2O7, KHSO4 as a flux and treating the sample with Na2S207 (first dried at 212 degrees) as a flux.
4. Quartz is brittle and easy to break. Pay attention when using it.
5. In addition to HF, a common dilute mineral acid can be used as a cleaning liquid.
We supply all kind quartz product, containing: quartz glass tube, quartz glass plate, quartz glass crucible, quartz glass cuvette and all kinds quartz labware(such as beakers, flasks, measuring barrels, test tubes, , bell jar, volumetric flask, petri dish, quartz boat, weighing flask, dividing funnel, condensing tube and so on). If you need sample, please contact us.
We can customize products according to your requirements!
