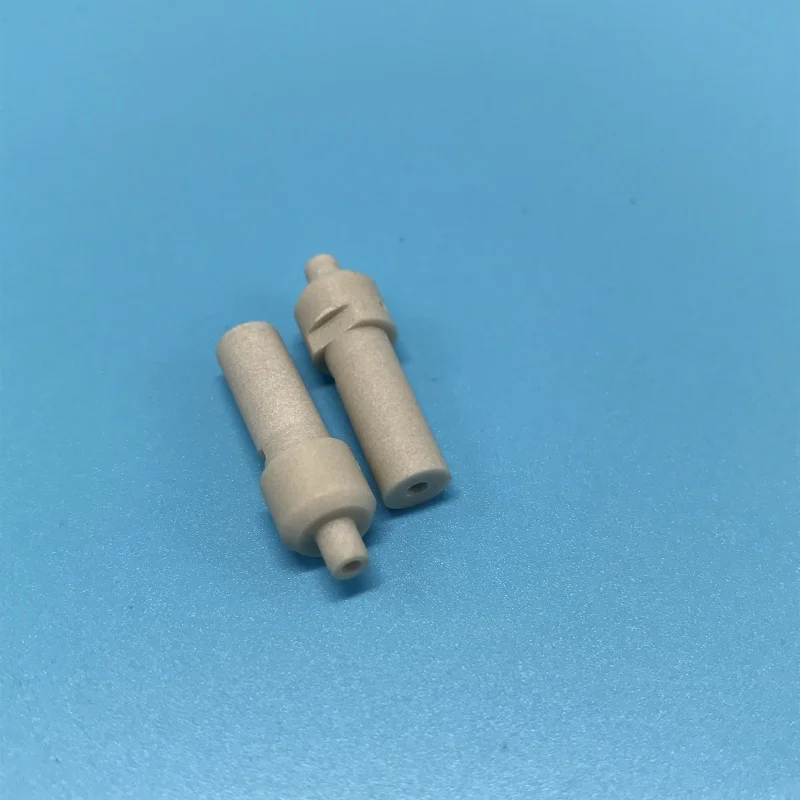

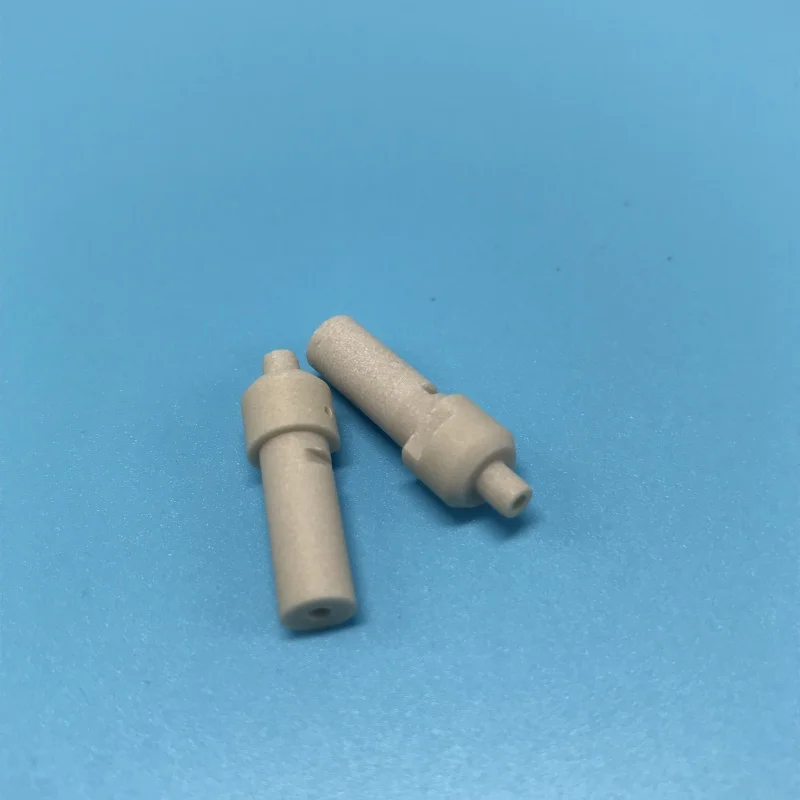

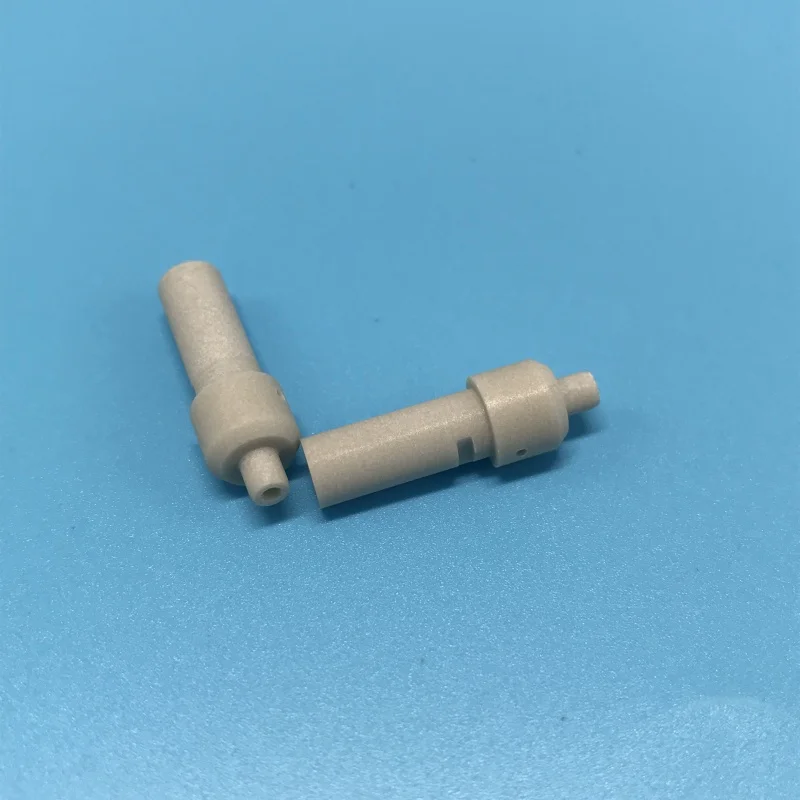

Aluminium Nitride Electronics Accessory AlN Ceramic Boquila Microphones Nozzle
$75.00
Product Description
Product Name | Electronics Accessory AlN Ceramic Boquila Microphones Nozzle |
Material | Alumina nitride |
Key words | Alumina nitride ceramic tube |
Advantage | Excellent thermal conductivity |
AlN nozzle introduction
It's a specialized component used in high-temperature and corrosive environments due to AlN's excellent thermal, mechanical, and
chemical properties.
chemical properties.
Key Properties
1.High Thermal Conductivity (~170-200 W/mK) – Efficient heat dissipation.
2.High Electrical Insulation – Useful in electronic and semiconductor applications.
3. Excellent Thermal Shock Resistance – Withstands rapid temperature changes.
2.High Electrical Insulation – Useful in electronic and semiconductor applications.
3. Excellent Thermal Shock Resistance – Withstands rapid temperature changes.
AlN application
– Used in MOCVD reactors for GaN and LED production.
– Resists corrosive gases (e.g., NH?, TMGa).
2. Metal & Alloy Processing
– Used in molten metal dispensing (e.g., aluminum, copper) due to non-wettability.
3. **3D Printing (Additive Manufacturing)**
– Used in high-temperature powder deposition systems.
Technical Date of ALN | ||||
Property content | Unit | Property index | ||
Density | g/cm3 | ≥3.30g/cm3 | ||
Water absorption | % | 0 | ||
Thermal conductivity | (20??, W/m.k) | ≥170 | ||
Linear expansion coefficient | (RT-400?棬10-6?? | 4.4 | ||
Flexural strength | Mpa | ≥330 | ||
Bulk resistance | ≥1014 | |||
Dielectric constant | 1 MHz | 9.0 | ||
Dissipation factor | 1 MHz | 3*10-4 | ||
Dielectric strength | KV/mm | ≥15 | ||
Surface roughness | Ra(μm?? | 0.3~0.5 | ||
Camber | ??~25.4??length)) | 0.03~0.05 | ||
Appearance | Dense | |||
Note: 1. Surface roughness can be reached 0.1μm after polished. | ||||
2. Size tolerance can be controlled in ±0.10mm with laser machined. | ||||
3. Special specifications can be suppled upon requests. | ||||
