High Thermal Conductivity 170W/m.K Thick Thick ALN Ceramic Round Block Alumina Nitride Disc
$40.00
Product Description
Product Name | Good thermal conductivity customized ALN alumina nitride ceramic disc |
Material | Alumina nitride |
Key words | ALN ceramic disc |
Advantage | Excellent thermal conductivity |

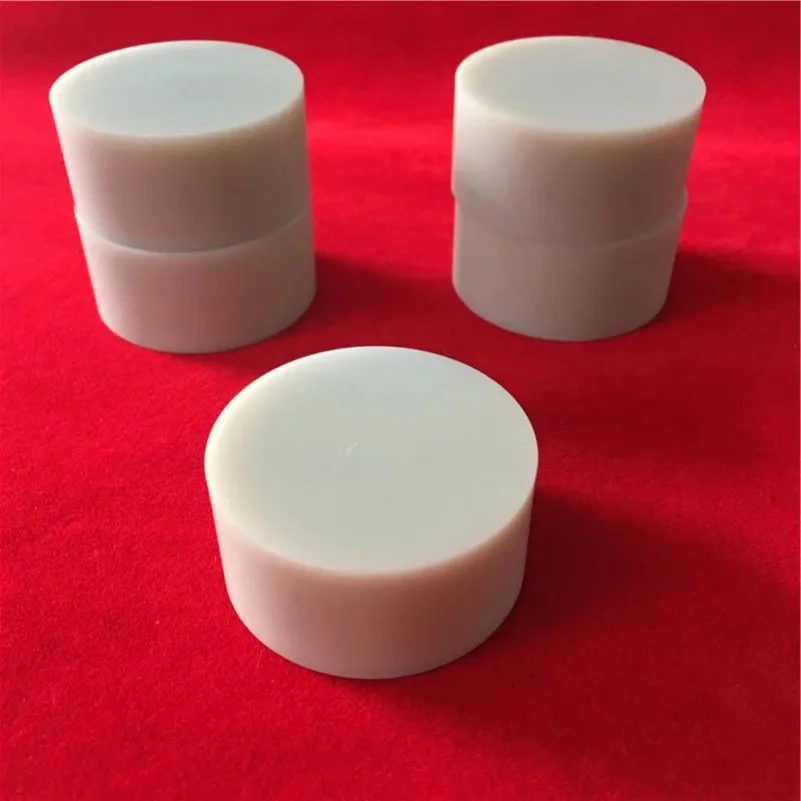

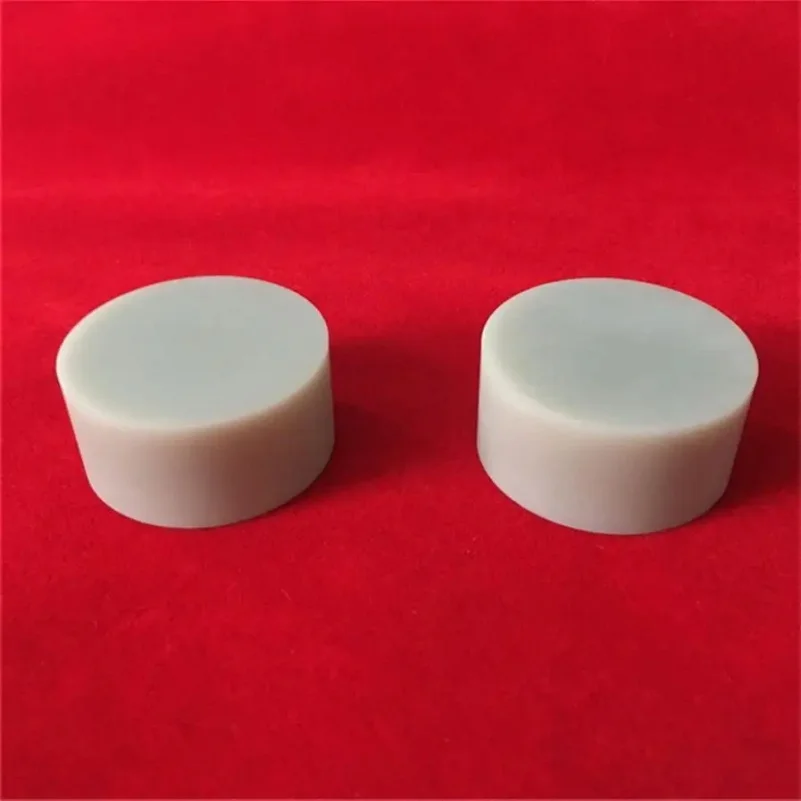

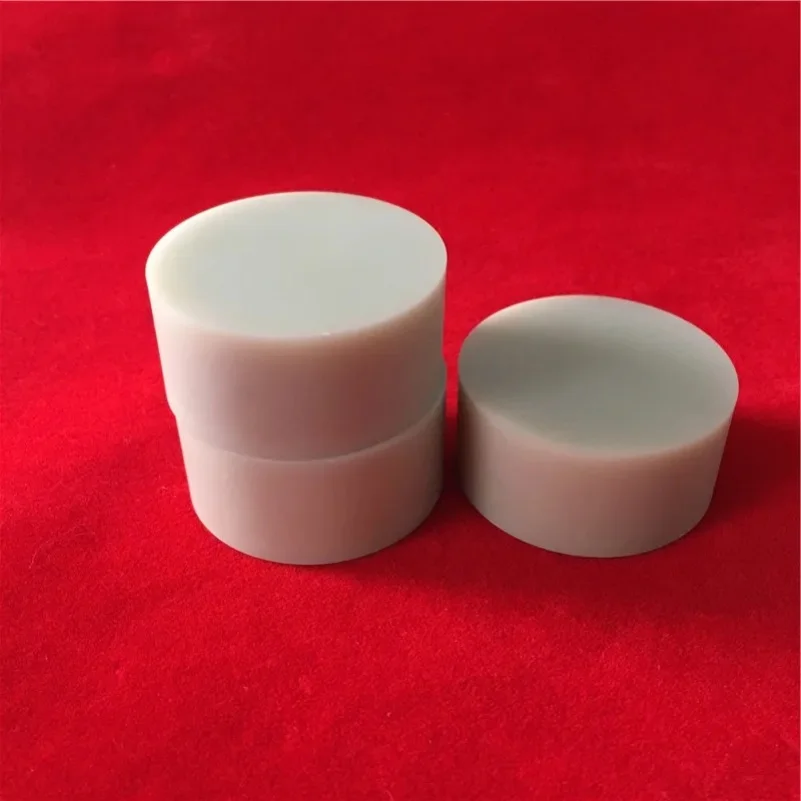

Alumina Nitride Disk
Introduction
Alumina nitride ceramic has high thermal conductivity of more than 170W/m. K, high resistivity, low dielectric loss, good insulation and some other excellent properties.
Features
1.High resistivity
2.High thermal conductivity of more than 170W/m. K
3. Low dielectric loss
4. Good insulation
2.High thermal conductivity of more than 170W/m. K
3. Low dielectric loss
4. Good insulation
Advantages
2. Wear resistance
3. High temperature resistant
4. Corrosion resistance
Technical Date of ALN | ||||
Property content | Unit | Property index | ||
Density | g/cm3 | ≥3.30g/cm3 | ||
Water absorption | % | 0 | ||
Thermal conductivity | (20??, W/m.k) | ≥170 | ||
Linear expansion coefficient | (RT-400?棬10-6?? | 4.4 | ||
Flexural strength | Mpa | ≥330 | ||
Bulk resistance | ≥1014 | |||
Dielectric constant | 1 MHz | 9.0 | ||
Dissipation factor | 1 MHz | 3*10-4 | ||
Dielectric strength | KV/mm | ≥15 | ||
Surface roughness | Ra(μm?? | 0.3~0.5 | ||
Camber | ??~25.4??length)) | 0.03~0.05 | ||
Appearance | Dense | |||
Note: 1. Surface roughness can be reached 0.1μm after polished. | ||||
2. Size tolerance can be controlled in ±0.10mm with laser machined. | ||||
3. Special specifications can be suppled upon requests. | ||||
