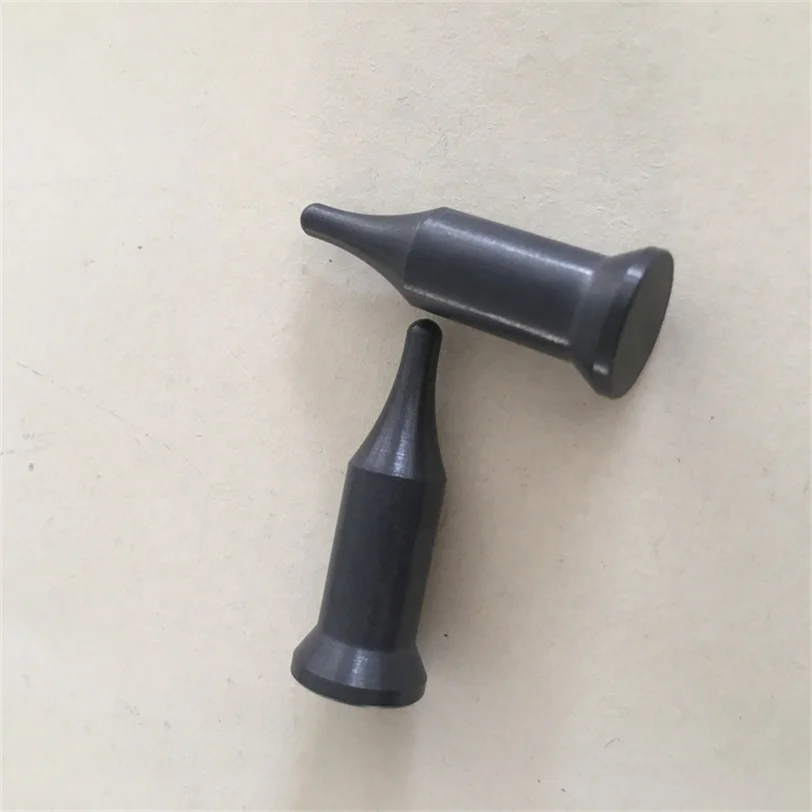

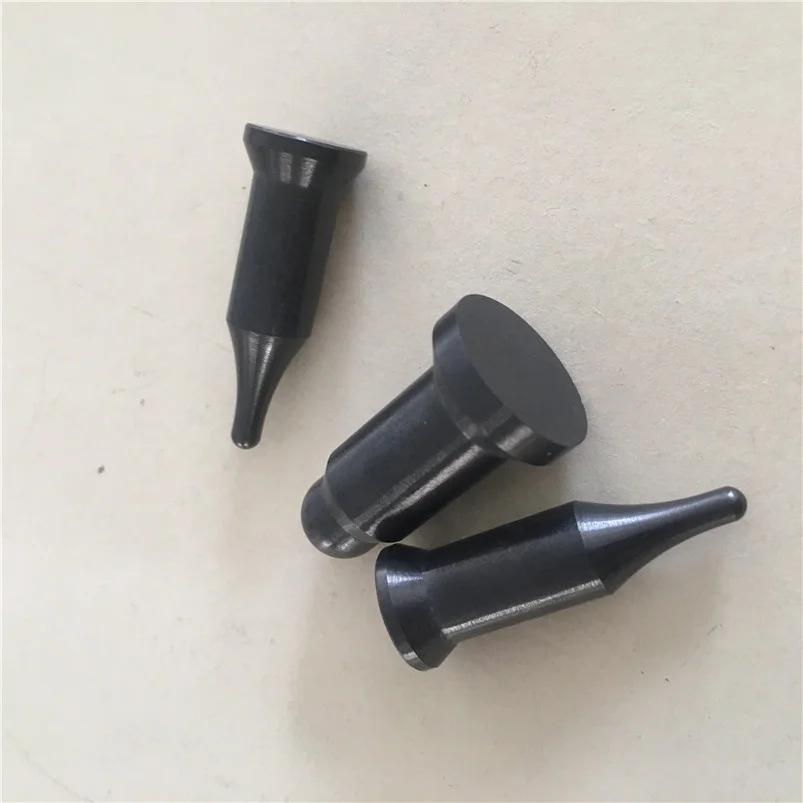

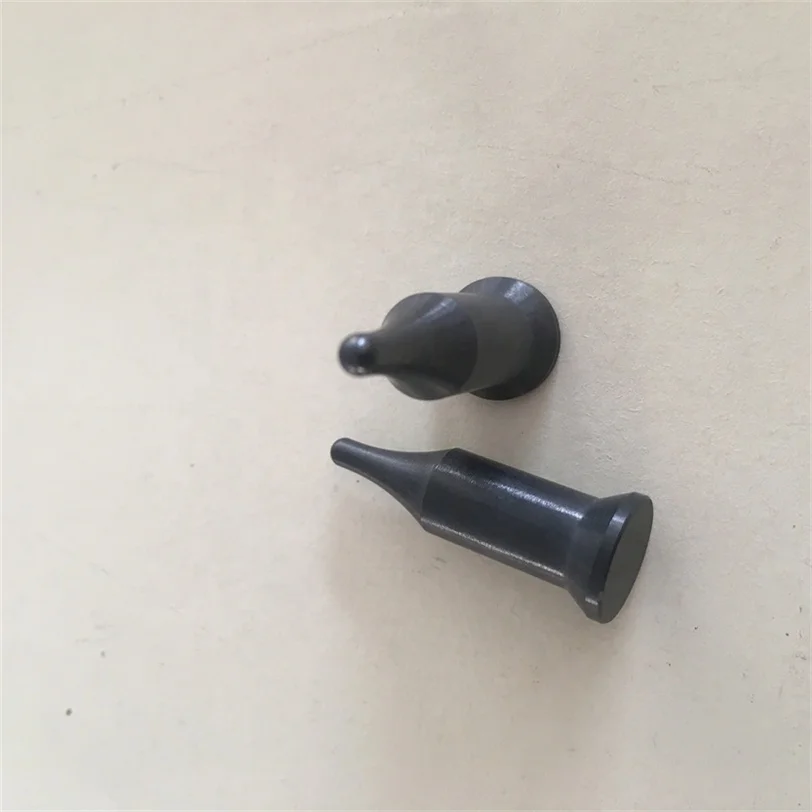

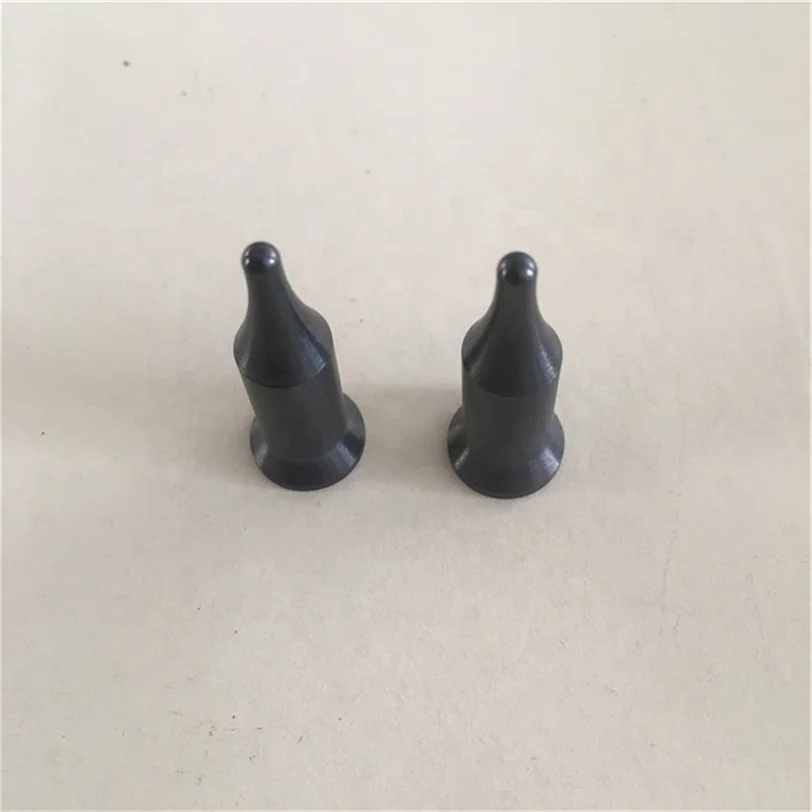

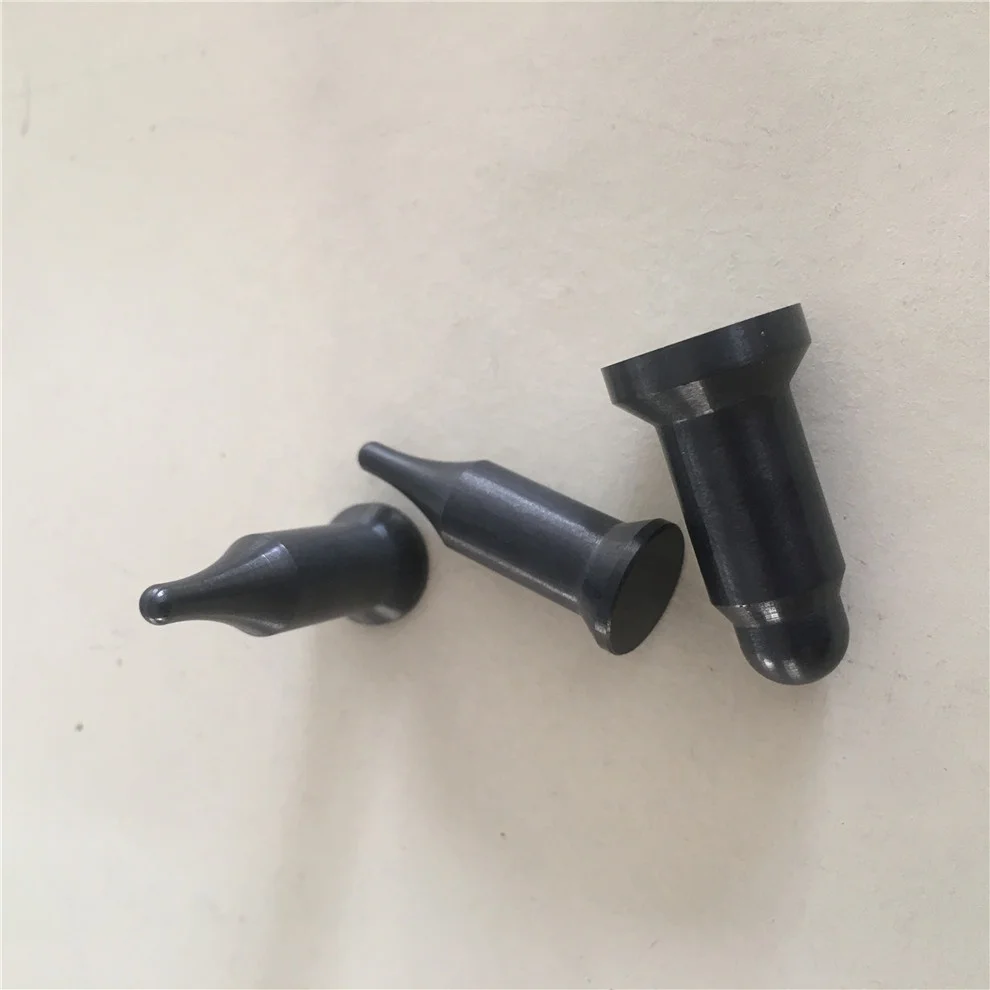

Black Silicon Nitride Location Pin Surface Polishing Si3N4 Ceramic Guide Pin
$10.00
100 in stock
Products Description
Product Name | Black Silicon Nitride Location Pin Surface Polishing Si3N4 Ceramic Guide Pin |
Material | Silicon nitride |
Key words | Silicon Nitride Ceramic part |
Advantage | Wear resistance and high thermal conductivity |
Silicon nitride positioning pin is used as projection welding (spot welding) joint, the insulated silicon nitride positioning pin can completely avoid unnecessary current passage during welding, so that the pin and the workpiece can avoid sparks, and the high wear resistance of silicon nitride makes the workpiece can be accurately positioned for a long time, and the welded workpiece maintains a very high quality and high pass rate. And because sparks are avoided, there is no need for additional through-hole operations for the workpiece.
Features
2. Ability to withstand high structural loads to high temperature
3. Superior wear resistance
4. Unusually high fracture toughness
1. Excellent thermal shock resistance
2. Ability to withstand high structural loads to high temperature
3. Superior wear resistance
4. Unusually high fracture toughness
Advantages
1.Because silicon nitride is an insulating material, there is no need for slag removal, which reduces the process and improves the welding quality.
2.Due to the very high hardness of silicon nitride (HRa>90), the wear resistance is very good; The service life is 5~30 times that of other material positioning pins.
Silicon nitride is the best choice for high-intensity, extreme conditions in the welding process.
Silicon nitride is the best choice for high-intensity, extreme conditions in the welding process.
Item | gas pressure sintering | hot pressing sintering |
Rockwell hardness (HRA) | ≥75 | |
volume density(g/cm3) | 3.25 | ??3.25 |
Dielectric constant (ε r20?棬1MHZ) | 8.0(1MHz) | |
electric volume resistivity(Ω.cm) | 1014 | 108 |
breaking tenacity??Mpa m1/2?? | 6-9 | 6-8 |
Elasticity modulus ??GPa?? | 300-320 | 300-320 |
thermal expansivity ??m/K *10-6/?棩 | 3.1-3.3 | 3.4 |
thermal conductivity (W/MK) | 15-20 | 34 |
weibull modulus??m?? | 12-15 | 15-20 |
