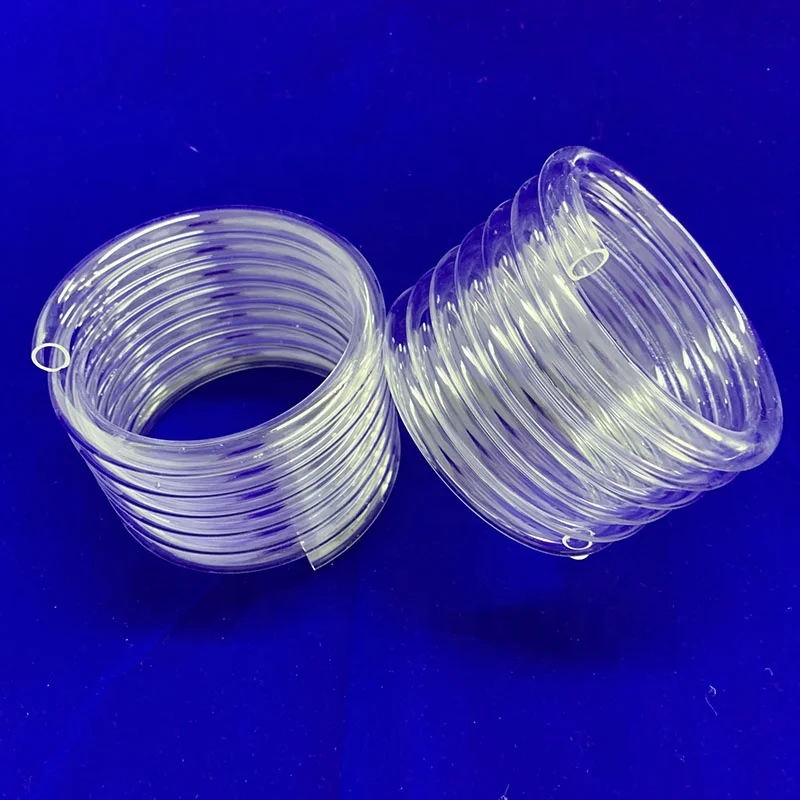

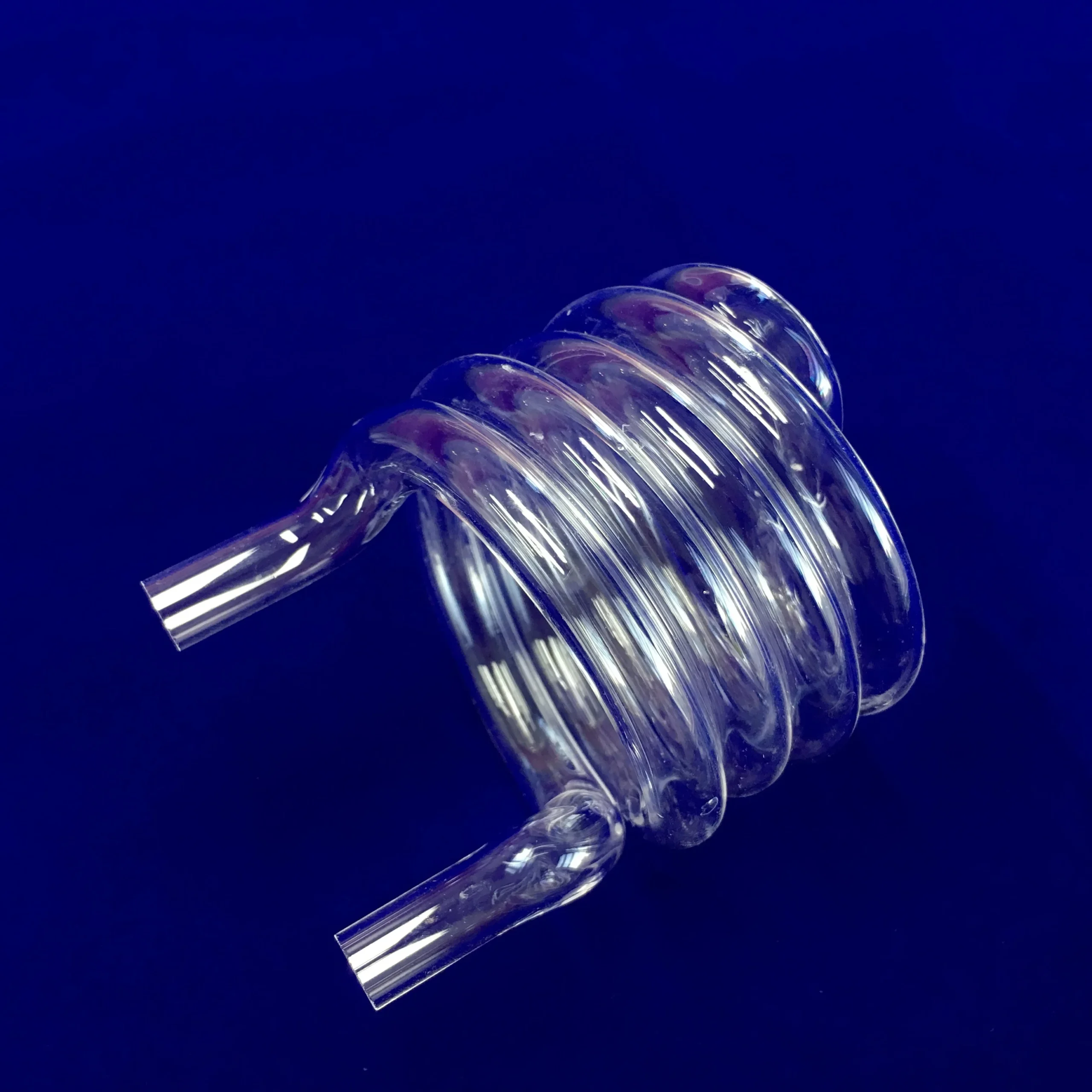

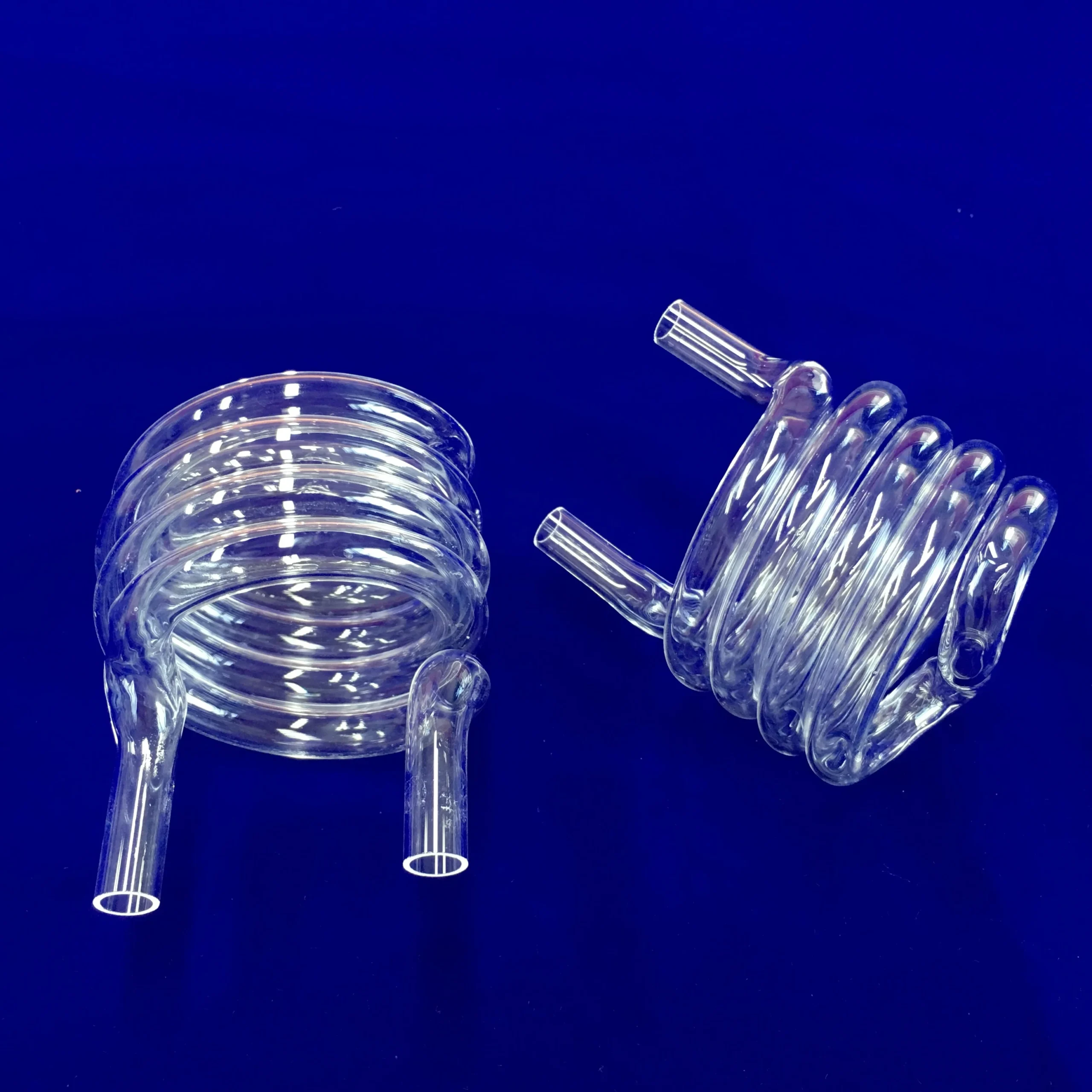

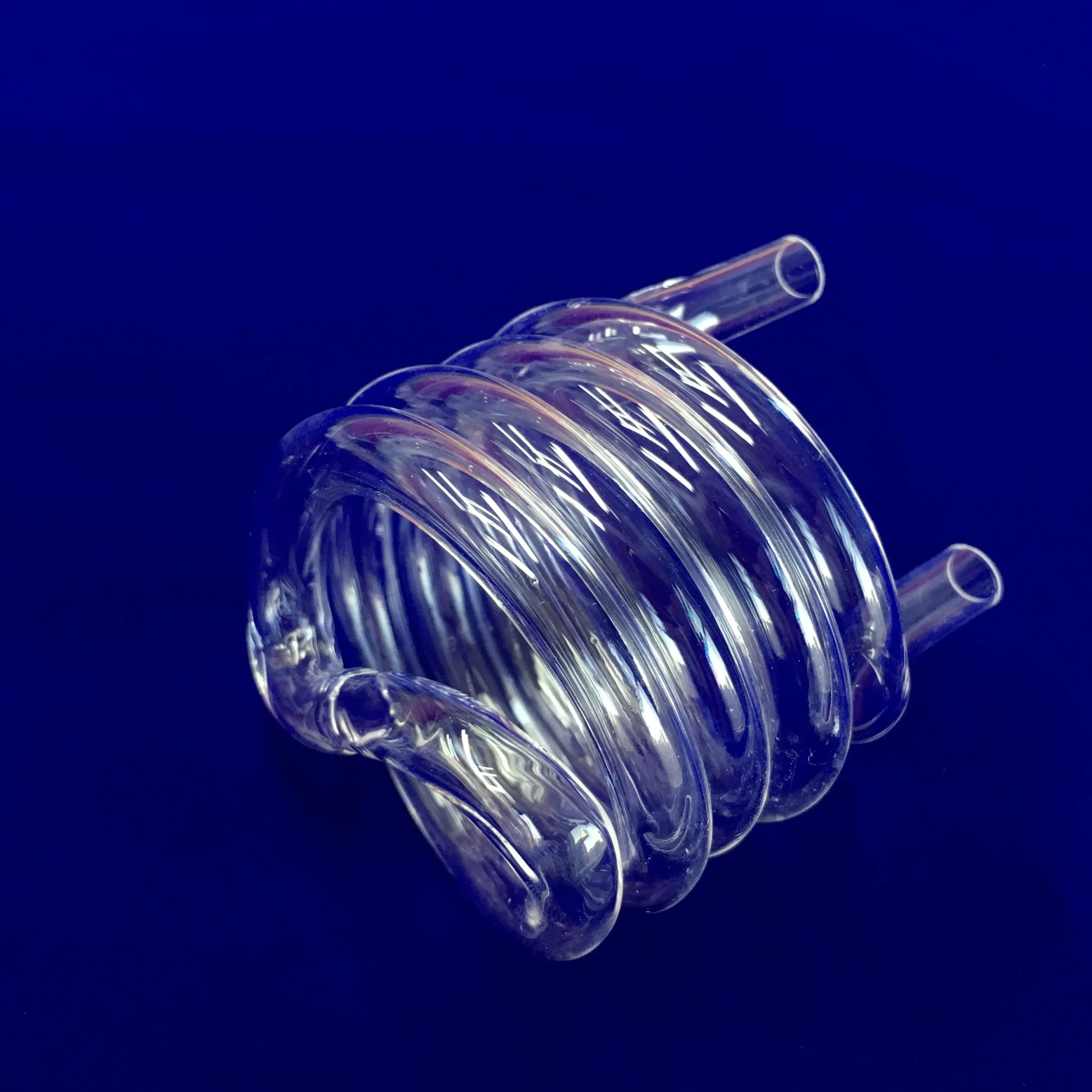

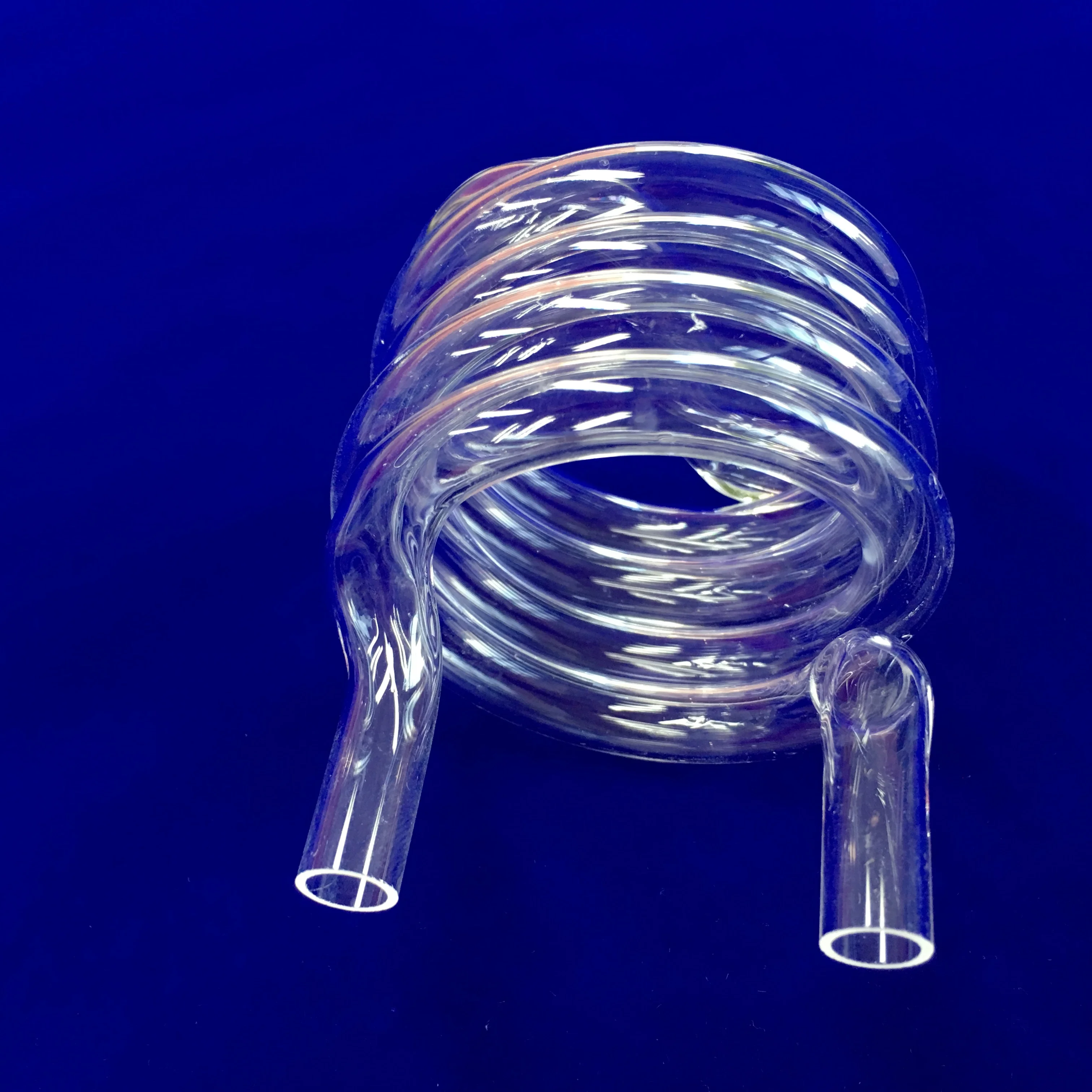

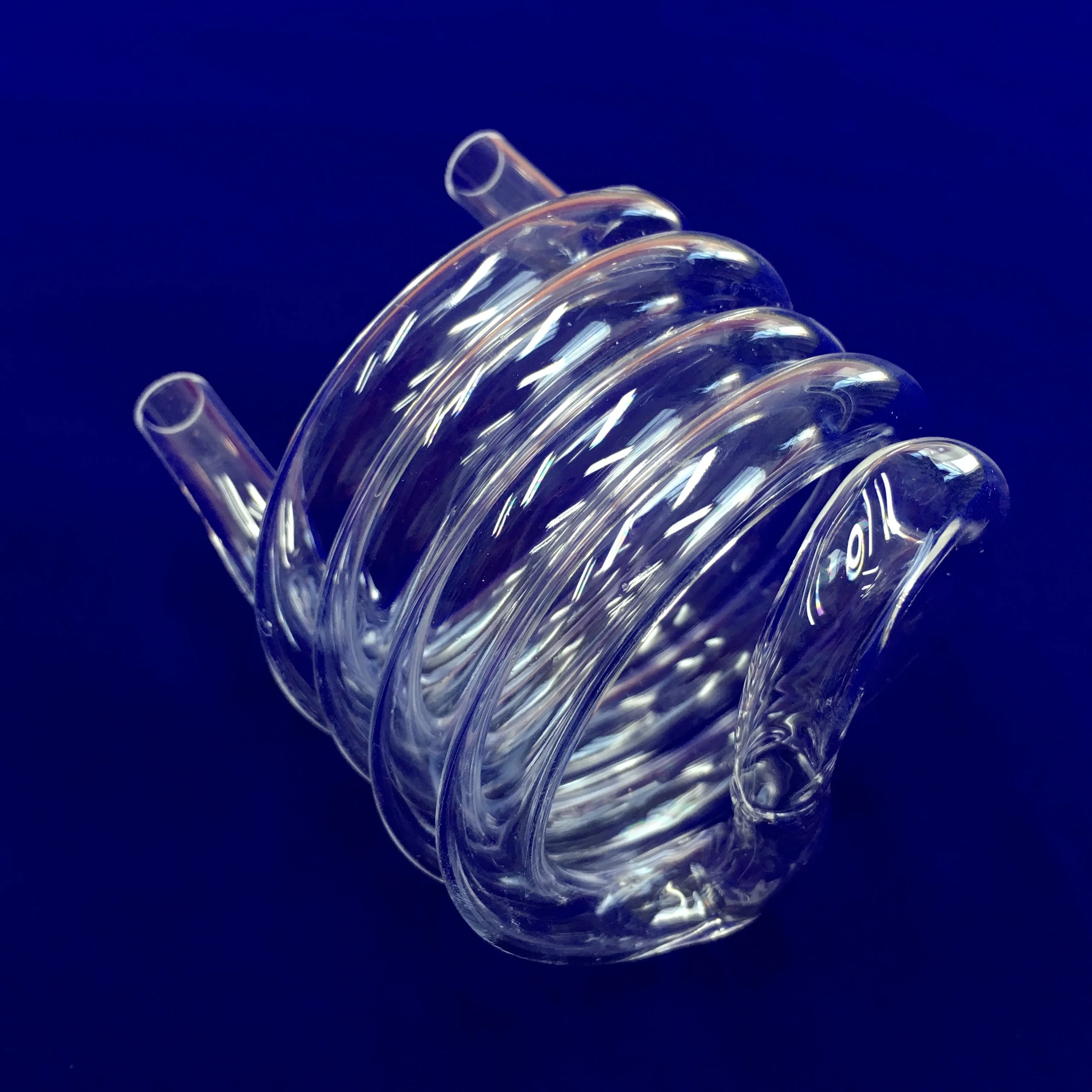

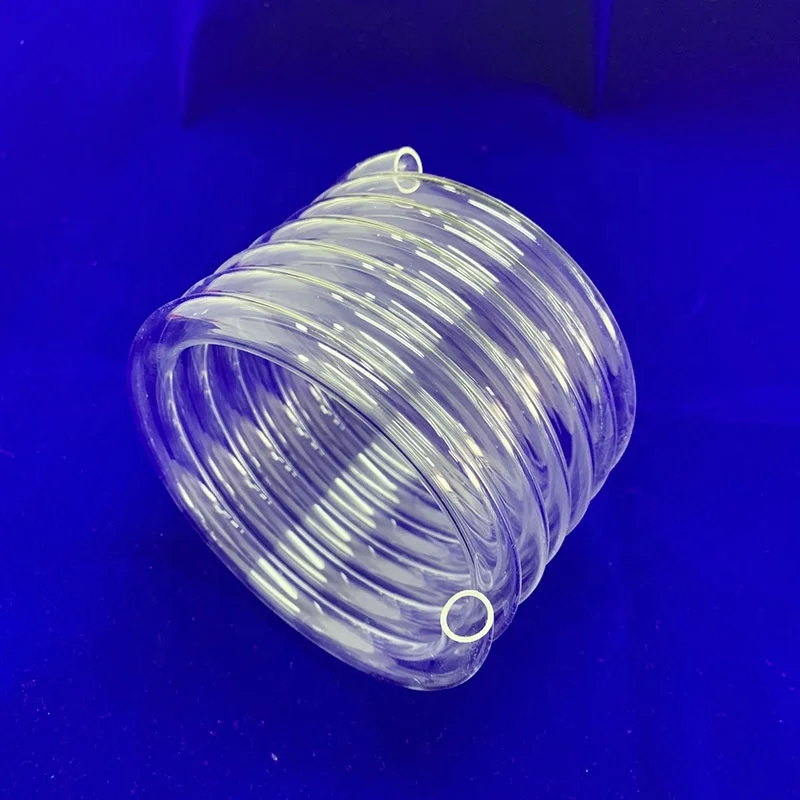

Clear Quartz Glass Helical Tube Used in Muffle Furnace
$10.00
Product Description
Quartz Tube Product features
1. Purity SiO2 content is more than 99.99%
2. Temperature Softening point temperature is about 1730 degrees Celsius ,1100 degrees Celsius in a long time used ,short-time
maximum use temperature is up to 1450 degrees Celsius
3. Anti-corrosion Quartz glass is acidic materials, except hydrofluoric acid and 300 degrees Celsius thermal phosphoric acid, on
any other acids were shown to be inert, is the best anti acid materials. At room temperature, alkali and salt on quartz glass
corrosion degree is minimal
2. Temperature Softening point temperature is about 1730 degrees Celsius ,1100 degrees Celsius in a long time used ,short-time
maximum use temperature is up to 1450 degrees Celsius
3. Anti-corrosion Quartz glass is acidic materials, except hydrofluoric acid and 300 degrees Celsius thermal phosphoric acid, on
any other acids were shown to be inert, is the best anti acid materials. At room temperature, alkali and salt on quartz glass
corrosion degree is minimal
Quartz Tube Product features
4. Transmittance good performance Compare to ordinary silicate glass, transparent quartz glass in the whole wavelength head
excellent permeability. In the infrared spectrum through than ordinary glass; in the visible region, quartz glass transmittance is
relatively high ,above 85%-90%.
5. Good electrical insulation properties Quartz glass with high dielectric strength and very low electrical conductivity, even in
high temperature, high pressure and high frequency,it can still maintain high dielectric strength and resistance.
6.Thermal stability The thermal expansion coefficient of quartz galss is extremely small ,it can be able to adapt drastic
temperature changes
excellent permeability. In the infrared spectrum through than ordinary glass; in the visible region, quartz glass transmittance is
relatively high ,above 85%-90%.
5. Good electrical insulation properties Quartz glass with high dielectric strength and very low electrical conductivity, even in
high temperature, high pressure and high frequency,it can still maintain high dielectric strength and resistance.
6.Thermal stability The thermal expansion coefficient of quartz galss is extremely small ,it can be able to adapt drastic
temperature changes
Property Content | Unit | Property Index |
Density | g/cm³ | 2.21 |
Tensile Strength | Pa(N/?O) | 4.9×107 |
Compression Strength | Pa | >1.1×109 |
Coefficient of Thermal Expansion | cm/cm?? | 5.5×10-7 |
Thermal Conductivity | W/m?? | 1.4 |
Specific Heat | J/kg?? | 680 |
Softening Point | ?? | 1700 |
Annealing Point | ?? | 1210 |
Specification
Item | Value |
Place of Origin | China |
Brand Name | BB |
Model Number | spiral quartz glass tube |
Type | Clear Quartz Pipe |
Color | TRANSPARENT |
Outside Diameter | as request |
Ozone Content | Ozone Free |
Processing Service | Bending, Welding, Punching, Decoiling, Cutting, Moulding |
Product Name | transparent spiral quartz glass tube with coils design |
Material | 99.99%SiO2 |
Work Temperature | 1100?? |
Soften point | 1680?? |
Size | Client Requirement |
OEM | Accept Quartz Tube Customized |
Surface | Polished Treatment |
Density | 2.2g/cm3 |
Company Profile
HIGHBORN is one of the leading high quality quartz glass and precise ceramics manufacturer and supplier in China.
HIGHBORN has always been a defining force in the sale and fabrication of quartz glass within the semi-conductor, chemical, solar energy and precise ceramics within semi-conductor , solar energy, textile, electronic, and laser industries.
Not only have we mastered the fabrication technology, our strength has always been based around listening to and understanding our customer's requirements and expectations.
Continuous improvement in all areas of our business is key to our grouth. What is equally important to us is maintaining in business, our inherent family values of trust, faimess and respect to our employees, suppliers and customers.
Certification
WE HONORS
OUR PATENTS
CE,ROHS,MSDS,POSI CERTIFICATIONS
Packing & Delivery
FAQ
Q:Are you a trading company or a manufacturer?
A:We are professional manufacturer which has almost 13 years of experience in this industry.
Q:Can you produce according to the samples?
A:Yes,we can produce by your samples or technical drawings.
Q:Would it be possible for us to visit your factory?
A:Sure,we welcomed our customers visit our factory in any time.
Q:Will your company supply samples?
A:Yes,the sample expense will be deducted from the value of your order.
Q:What's your payment terms?
A:T/T, L/C, Western Union, Money Gram, are available for us.
Q:Delivery time for my order?
A:Within 7-15 working days for your sample order; 20 working days for your bulk order( It depends on the models and quantity you are going to order).
A:We are professional manufacturer which has almost 13 years of experience in this industry.
Q:Can you produce according to the samples?
A:Yes,we can produce by your samples or technical drawings.
Q:Would it be possible for us to visit your factory?
A:Sure,we welcomed our customers visit our factory in any time.
Q:Will your company supply samples?
A:Yes,the sample expense will be deducted from the value of your order.
Q:What's your payment terms?
A:T/T, L/C, Western Union, Money Gram, are available for us.
Q:Delivery time for my order?
A:Within 7-15 working days for your sample order; 20 working days for your bulk order( It depends on the models and quantity you are going to order).
You May Like
| Grade |
A ,free of bubble or airline ,low OH ,precise size tolerance ,safety package by ply-wood box ,cutting or polished or grinded ends |
|---|
