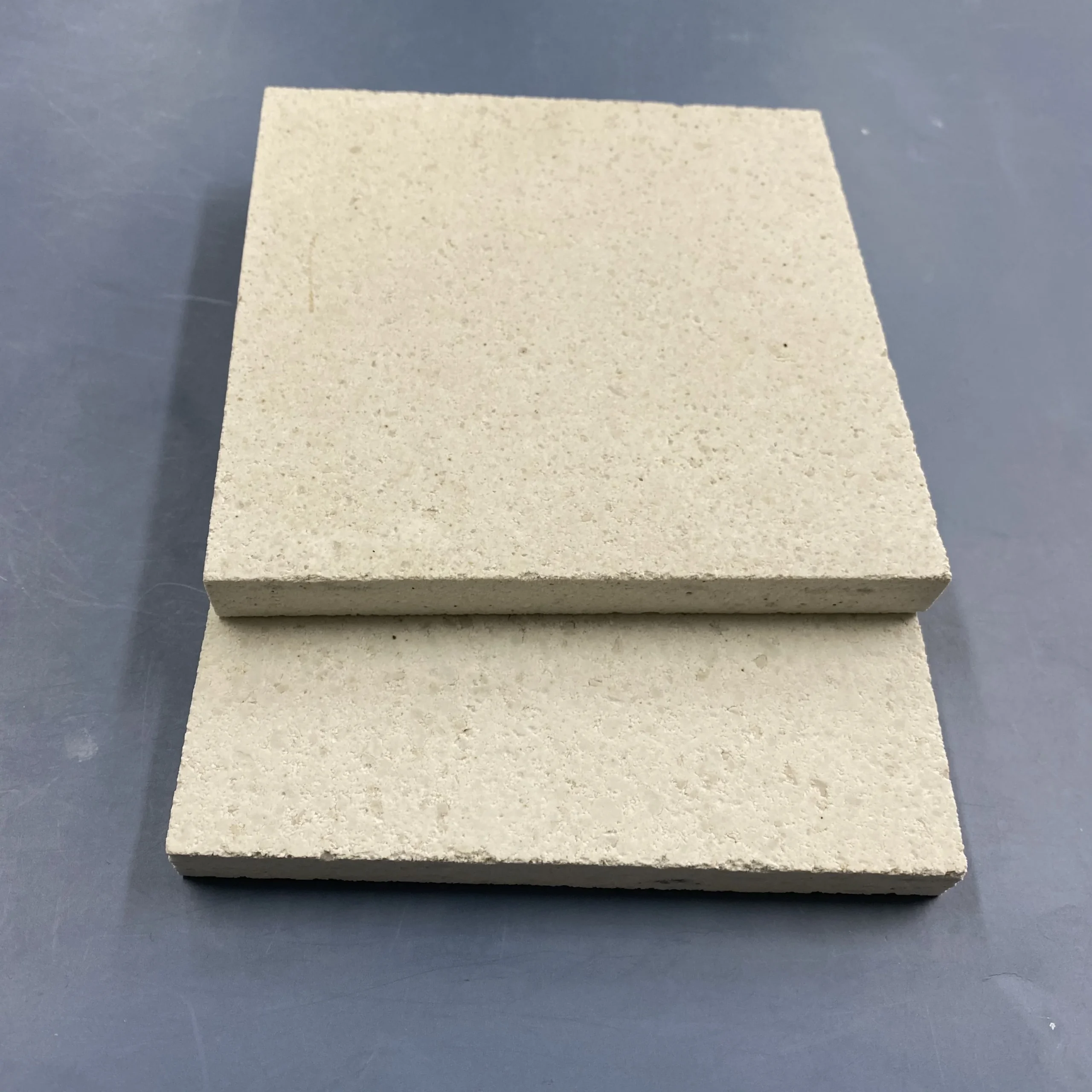

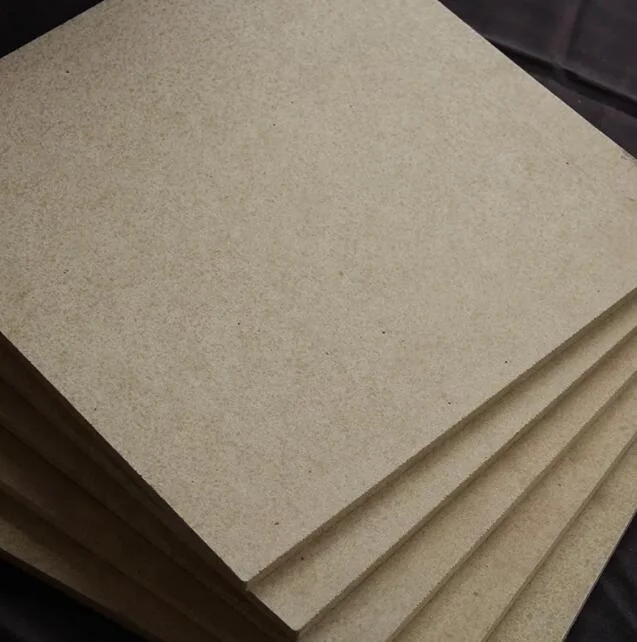

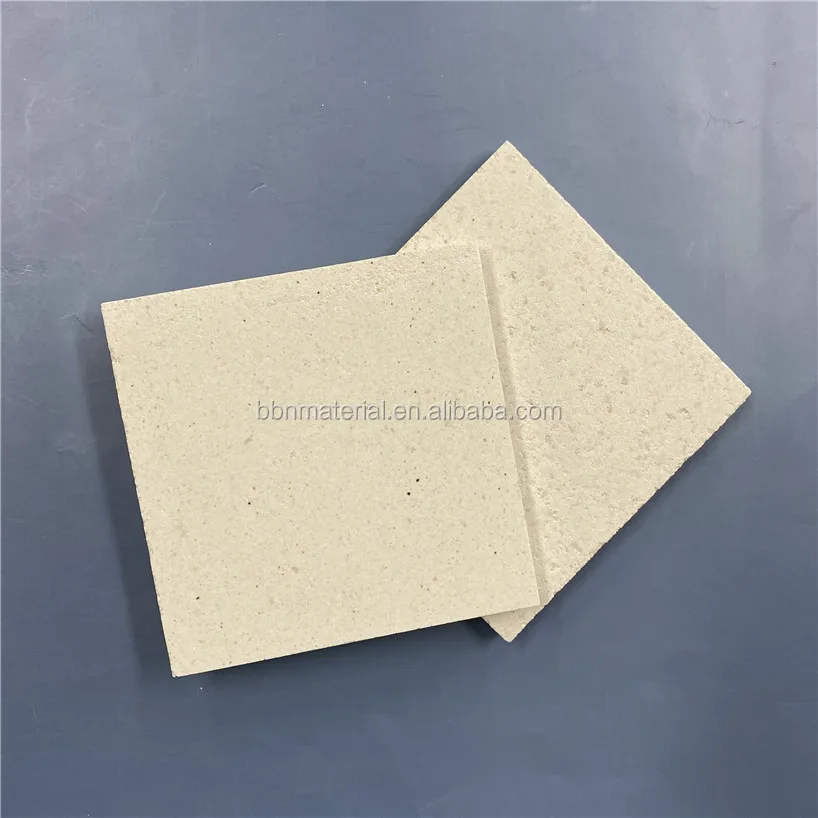

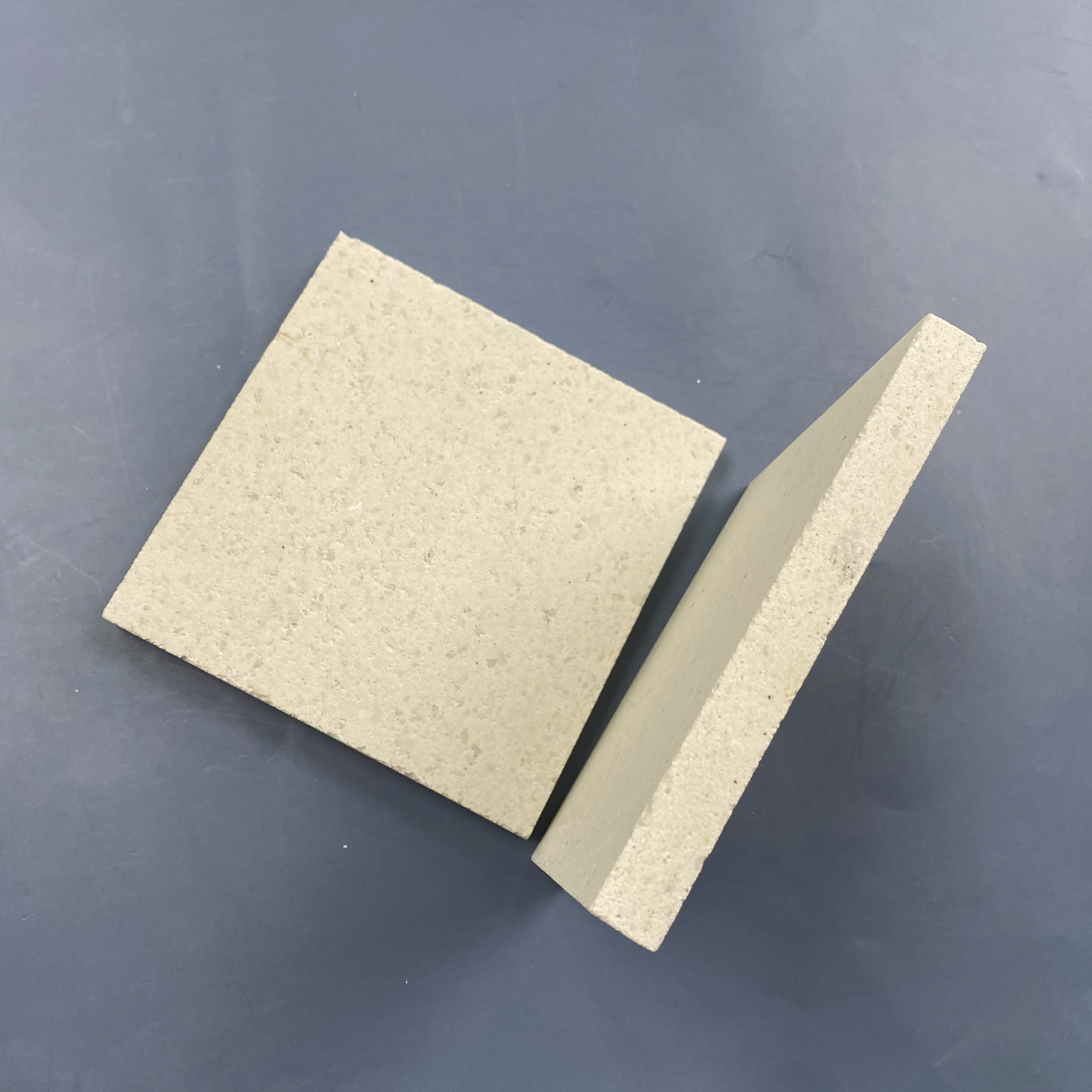

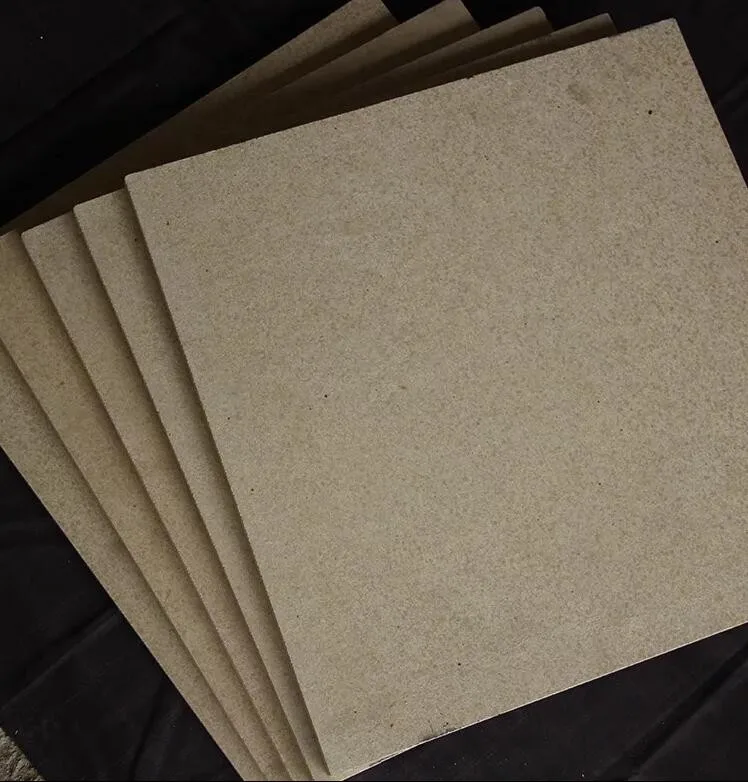

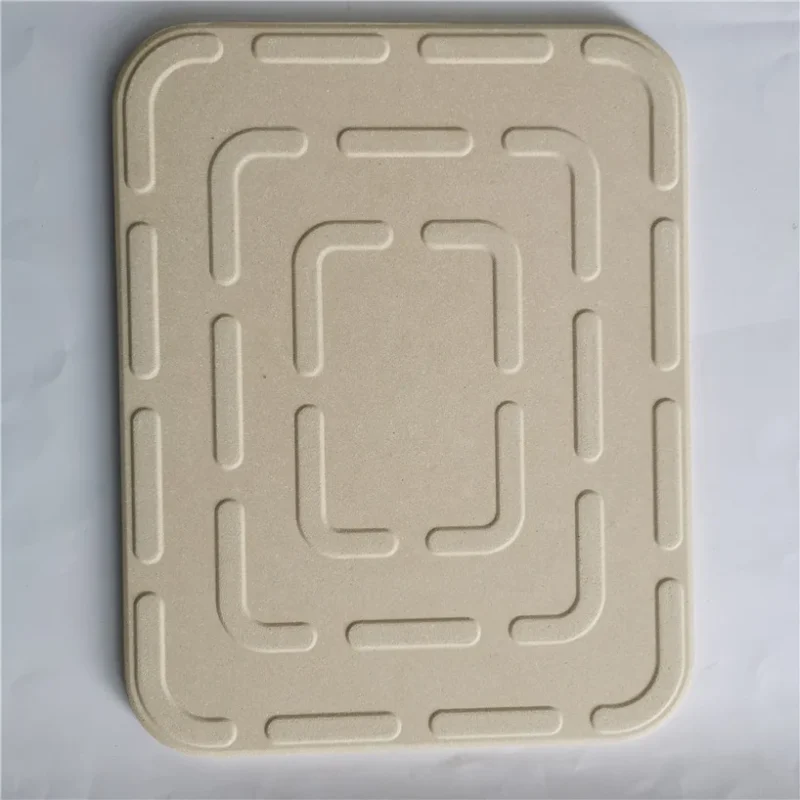

Cordierite Mullite Refractory Plate for Ceramic Kiln
$8.00
100 in stock
Product Description
Refractory ceramic kiln furnitures,ceramic kiln furnitures,kiln furniture,cordierite kiln furniture
Features:
Material: cordierite &mullite
It is used in heat shock applications that would crack and shatter most other ceramic materials, it can survive thousands of heating and cooling cycles.
it is characterized by high purity, high density, high strength and good thermal shock resistance, is mainly used as high temperature (1350-1650oC) kiln linings or kiln furniture in ceramics and refractories industries, gas combustion furnace in petrochemical industry and other high temperature services where thermal shock happens frequently.
Features:
Material: cordierite &mullite
It is used in heat shock applications that would crack and shatter most other ceramic materials, it can survive thousands of heating and cooling cycles.
it is characterized by high purity, high density, high strength and good thermal shock resistance, is mainly used as high temperature (1350-1650oC) kiln linings or kiln furniture in ceramics and refractories industries, gas combustion furnace in petrochemical industry and other high temperature services where thermal shock happens frequently.
Chemical & Physical index | cordierite | Dense cordierite | cordierite-mullite | Mullite | Corundum-mullite | ||
composition(%) | SiO2 | 45-55 | 45-55 | 35-45 | 25-38 | 20-32 | |
Al2O3 | 30-38 | 33-43 | 40-50 | 50-65 | 65-73 | ||
MgO | 10-15 | 5-13 | 3-13 | – | – | ||
K2O+Na2O | <1.0 | <1.0 | <1.0 | <1.0 | <1.0 | ||
Fe2O3 | <1.5 | <1.5 | <1.5 | <1.5 | <1.5 | ||
Thermal Expansion Coefficient | <2 | <4 | <4 | <5 | <7 | ||
Specific Heat J/kg.K | 830-900 | 850-950 | 850-1000 | 900-1050 | 900-1100 | ||
Working Temperature ?? | <1300 | <1300 | <1350 | <1450 | <1500 | ||
Shapes:
Lots of sizes and shapes with the thickness of 25mm,30mm,38mm,45mm,70mm and width under 700mm,length under 1650mm.

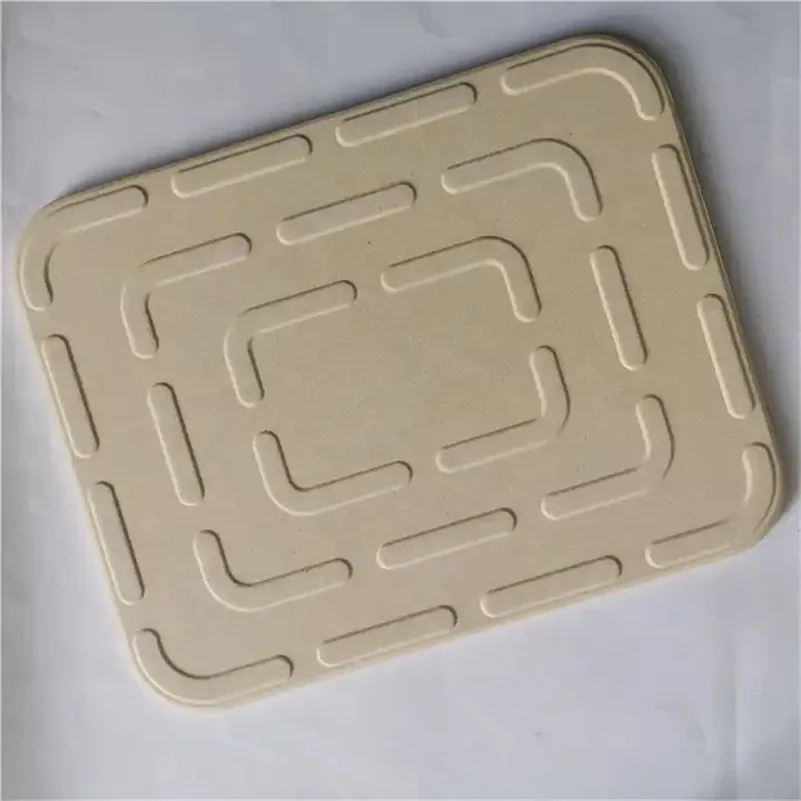

Extra Large Batt, Extra Thin Batt, Plain Batt, Perforated Batt, Grooved Batt,Trapezoid Batt, Recessed Batt, Full Disc, Half Disc
and Special Batt are also workable according to the design of the customers.
The characteristics of the honeycomb ceramic regenerator are as follow: they have low heat expansion, high specific heat capacity, high specific surface area, low pressure drop, low thermal resistance, good thermal conductivity, thermal shock resistant and much more. So, in metallurgy and chemical industries, it's used as HTAC, while we combine recycling the heat of the emissions, high efficient combustion with reducing NOx. It becomes a true energy saver and decreases Nox.
Infrared Honeycomb Ceramic Board Plate | ||||||
Water absorption | 50.4% | Thermal expansion coeffecient | 1.5-3(×10-6K-1) | |||
Open Porosity | 61% | Temperature softening | >1280°C | |||
Specific gravity | 0.6-0.9g/cm3 | Cooking Surface Temperature | 1000-1200°C | |||
