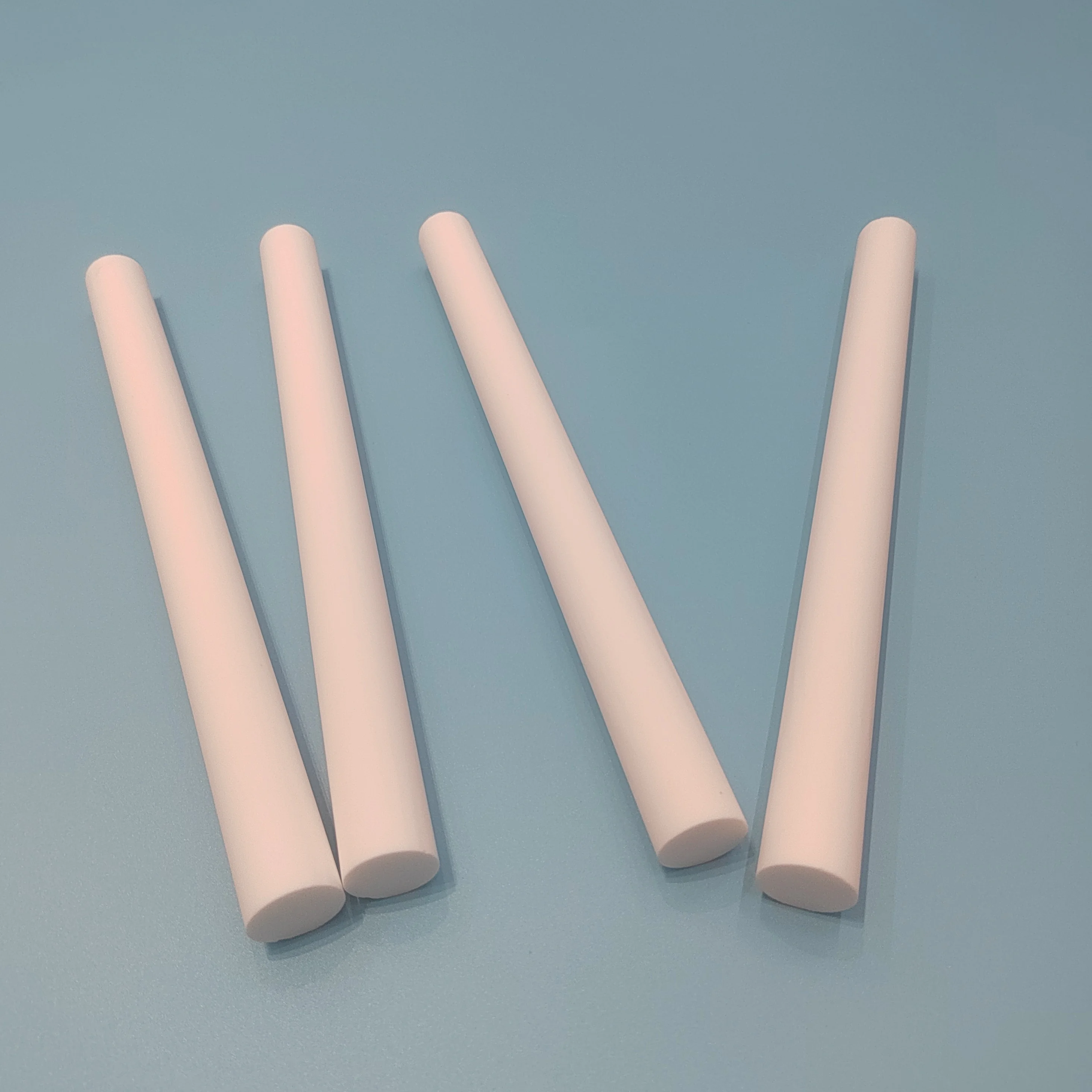

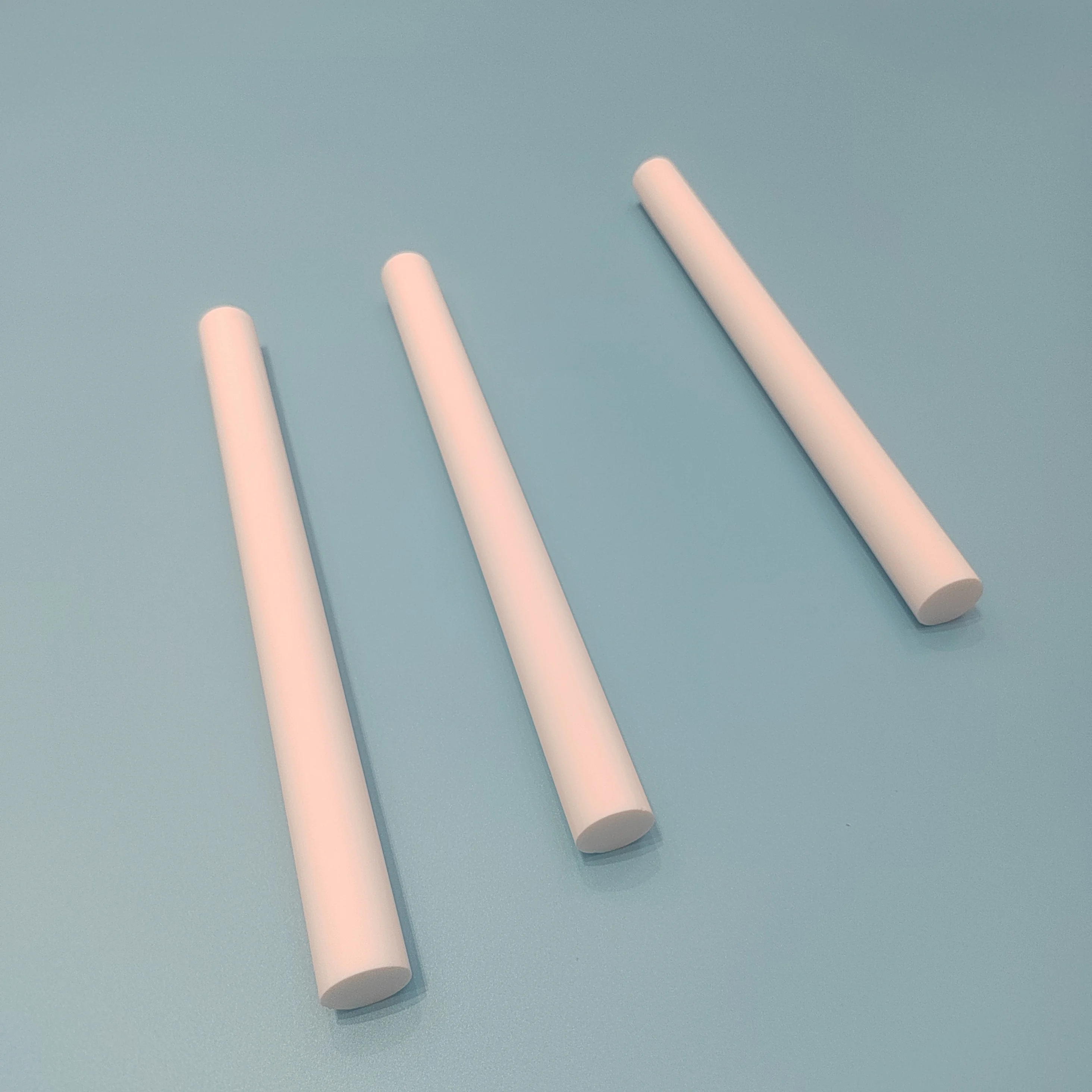

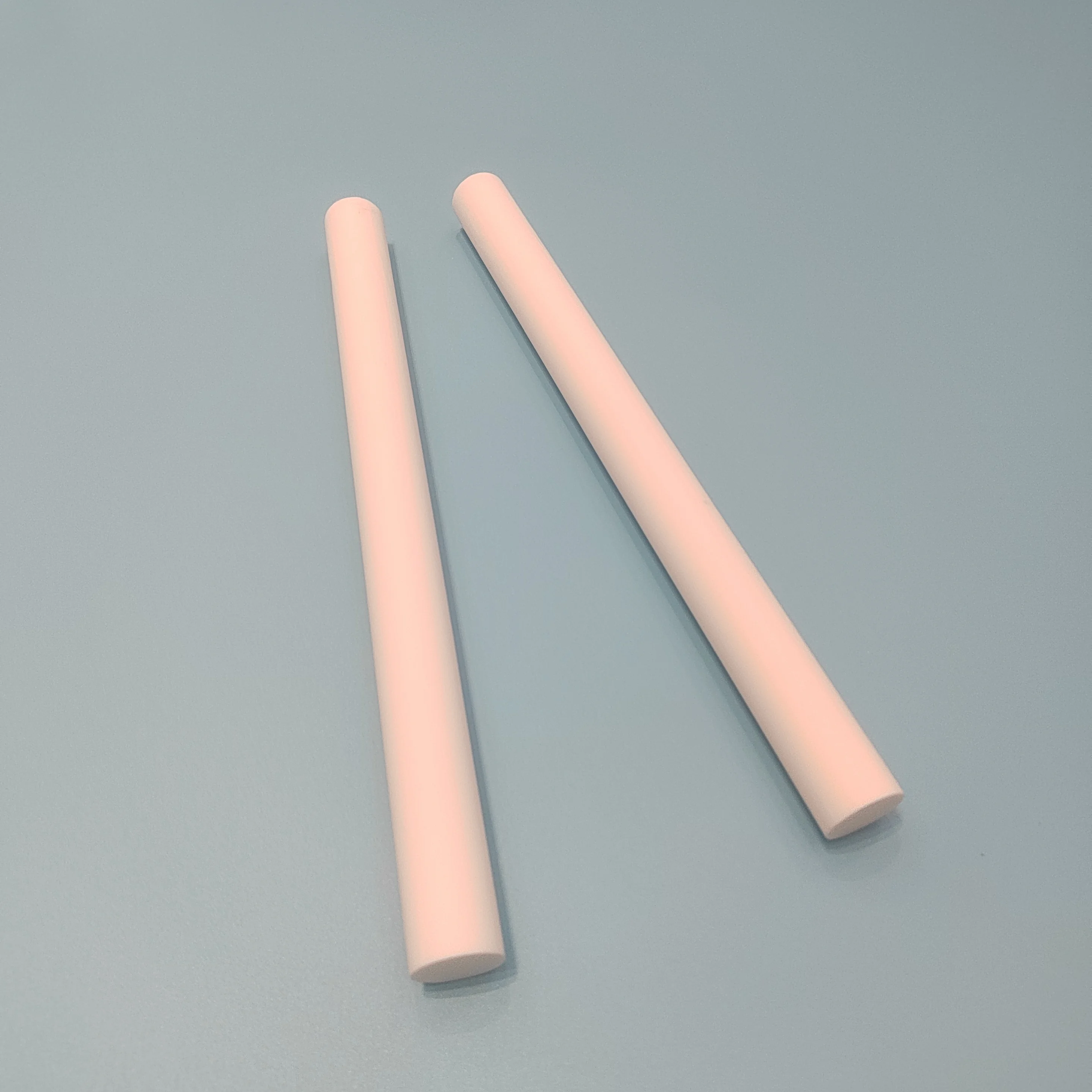

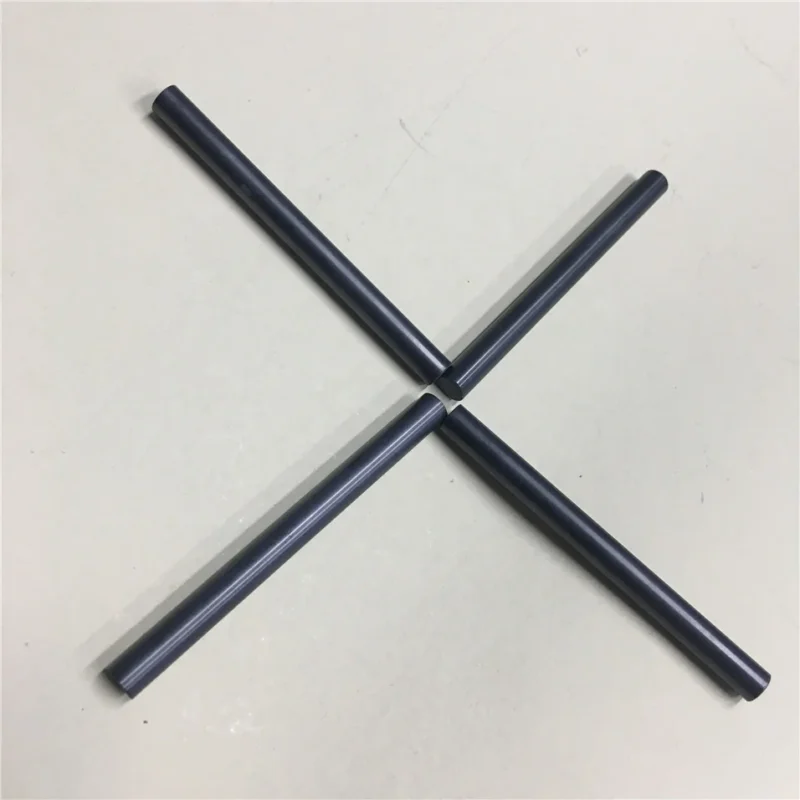

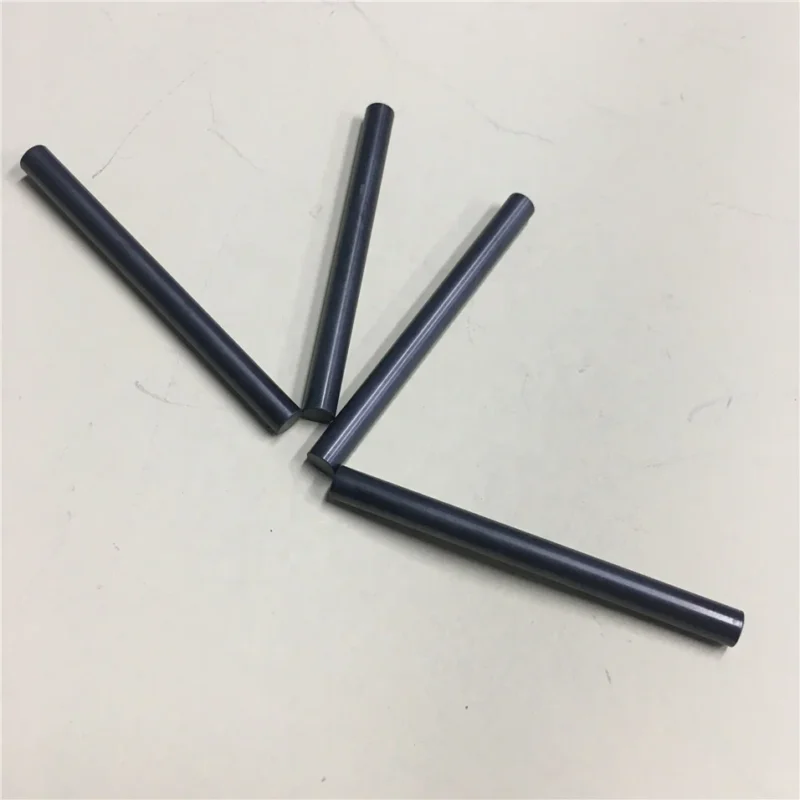

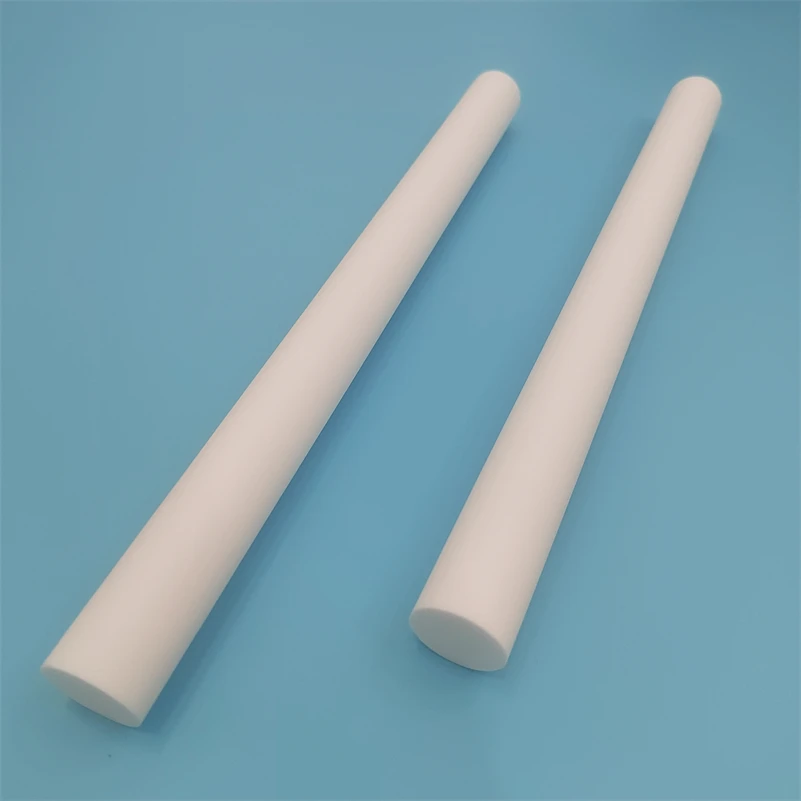

Customized High Precision Macor Machinable Glass Ceramic Rod Mica Ceramic bar
$19.99
Customized High Precision Macor machinable glass ceramic rod mica ceramic bar
ָ ?? Property Content | ?? ֵ Property Index | ˵ ?? Instruction |
?ܶ? Density | 2.6g/cm3 | |
???????? Apparent Porosity | 0.069% | |
??ˮ?? Water Absorption | 0 | |
Ӳ?? Hardness | 4~5 | Ī?? Mohs |
??ɫ Color | ??? White | |
??????ϵ?? Coefficient of Thermal Expansion | 72×10 -7 /?? | -50?? ?? 200?? ƽ??ֵ -50?? to 200?? average |
?ȵ??? Thermal Conductivity | 1.71W/m.k | 25?? |
????ʹ???¶? Long Working Temperature | 800?? | |
????ǿ?? Flexural Strength | >108MPa | |
ѹ??ǿ?? Compression Strength | >508 MPa | |
??????? Impact Toughness | >2.56KJ/ m2 | |
????ģ?? Modulus of Elasticity | 65GPa | |
??????? Dielectric Loss | 1~ 4×10 -3 | ???? Room Temperature |
??糣?? Dielectric Constant | 6~7 | ???? Room Temperature |
????ǿ?? Puncture Strength | >40KV/mm | ??Ʒ??? 1mm Sample Thickness 1mm |
Machinable ceramic is a kind of mica glass-ceramic with synthetic mica as the main crystal phase. It is a kind of ceramic material
that can be machined. Corrosion and other excellent properties.
The excellent properties of machinable ceramics make it widely used in automobile, military, aerospace, precision instruments,
medical equipment, electric vacuum devices and other fields.
1. Machinability, the outstanding feature is that standard metalworking tools and equipment can be used for turning, milling,
planing, grinding, drilling, sawing and tapping.
2. Electrical properties, it is an excellent high-temperature electrical insulating material and can be used in many electrical
equipment. It has high electrical insulating strength, volume resistance and low dielectric loss.
3. Thermal properties, it is a high temperature resistant insulating material and a corrosion resistant electrical insulating
material that can be used in the low temperature field. Its use range is -270°C ~ +800°C.
Main performance:
1. Machinability, the outstanding feature is that standard metalworking tools and equipment can be used for turning, milling,
planing, grinding, drilling, sawing and tapping.
2. Electrical properties, it is an excellent high-temperature electrical insulating material and can be used in many electrical equipment. It has high electrical insulating strength, volume resistance and low dielectric loss.
3. Thermal properties, it is a high temperature resistant insulating material and a corrosion resistant electrical insulating material that can be used in the low temperature field. Its use range is -270°C ~ +800°C.
Introduction
1000 clients, and we have gotten good reputation from our clients .
Packing Details: | We will packing by plastic/ polybay and bubble bags first , and then into the foam box,finally into the wooden cases/ carton/pallet or customized package.Every package can be offered with English installation instruction. |
Delivery Details | We can deliver by any courier, eg, TNT, UPS, FedEx, EMS etc.We can also by air, sea etc.We can choose the way according to the requirements of customers to ensure the most safe, efficient and convenient transportation. |
we are supplying Quartz Glass (Tube, Rod, Plate and customized parts), optical glass and cuvette, and also various precise ceramics, porous ceramics and refractory ceramics. We have the full processing line for ceramic thick film resistors, far infrared ceramic glass heating panel, quartz tube/ceramic plate ozone generator and porous metal fiber felt. For all the products, we can design and customize according to the clients’ demand.
Answer: We are willing to offer samples to lower your purchasing risk. Generally, if from inventory, we can deliver out within 3 days, however if need processing, we can deliver out within 15 days. For some difficult items, the delivery time will be decided by its grade of difficulty. For some low value items, we can offer free sample, however we would like you to afford the freight cost. For customized products, we need to charge the developing cost.
achievements have you made in research and development? Answer: Till the end of 2021, we have passed many ROHS, CE, MSDS tests and also the ISO9001 authentication. We have 8 registered trademark and 25 patents. Also we won the title of China High-tech Enterprise and Jiangsu Private Science and Technology Enterprises.
products directly? Answer: Till the end of 2021, we haven’t authorized any company or person as our regional agent. From 2008, we have the export qualification and professional export team, and till the end of 2021, we have exporting our products to more than 113 countries and regions, and our clients can contact us and purchase our products or service directly.
| Model Number |
HKCF46 |
|---|
