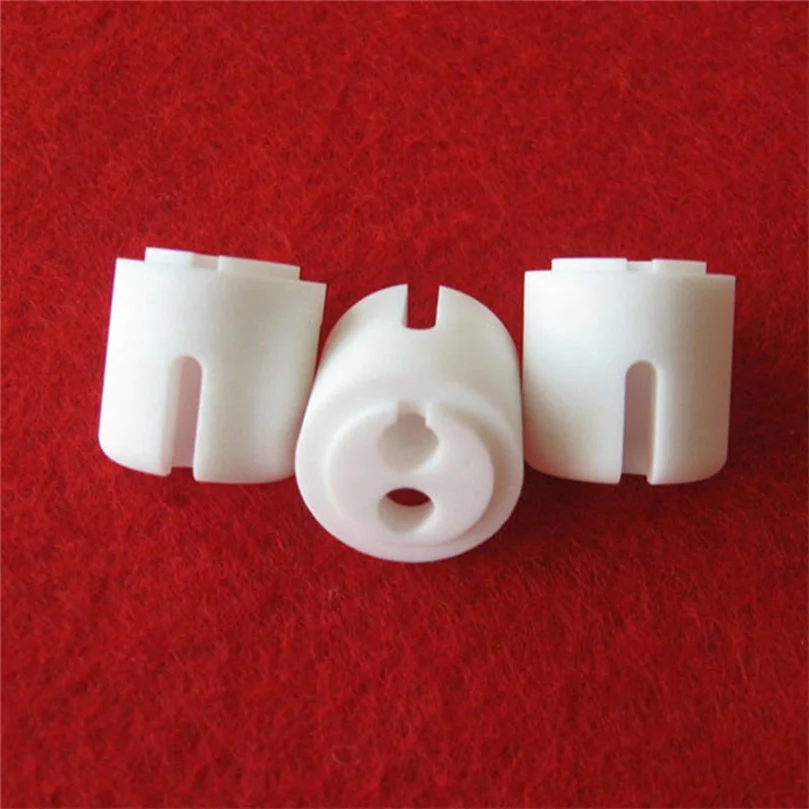

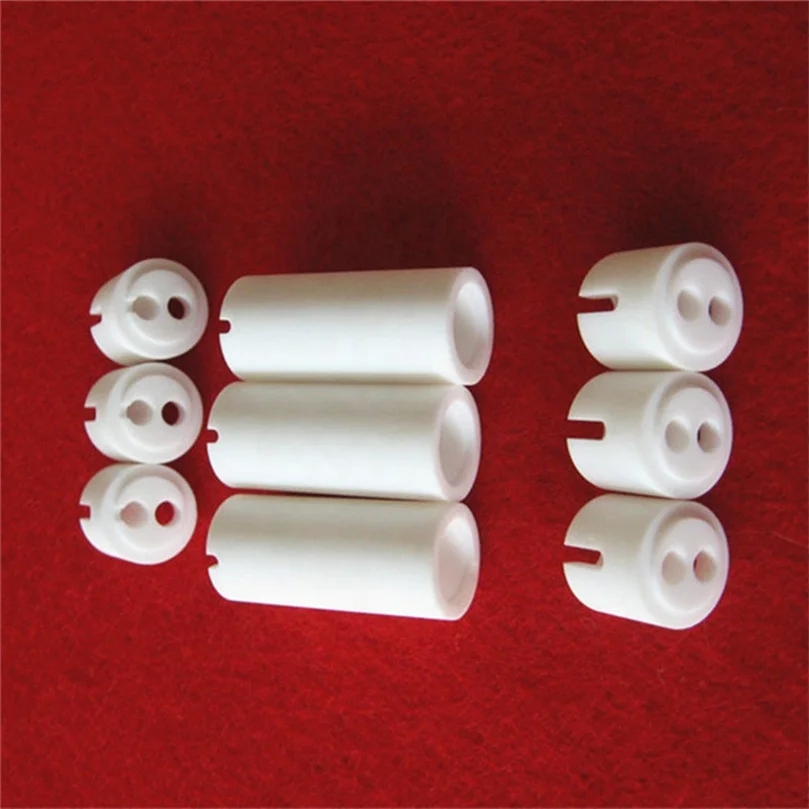

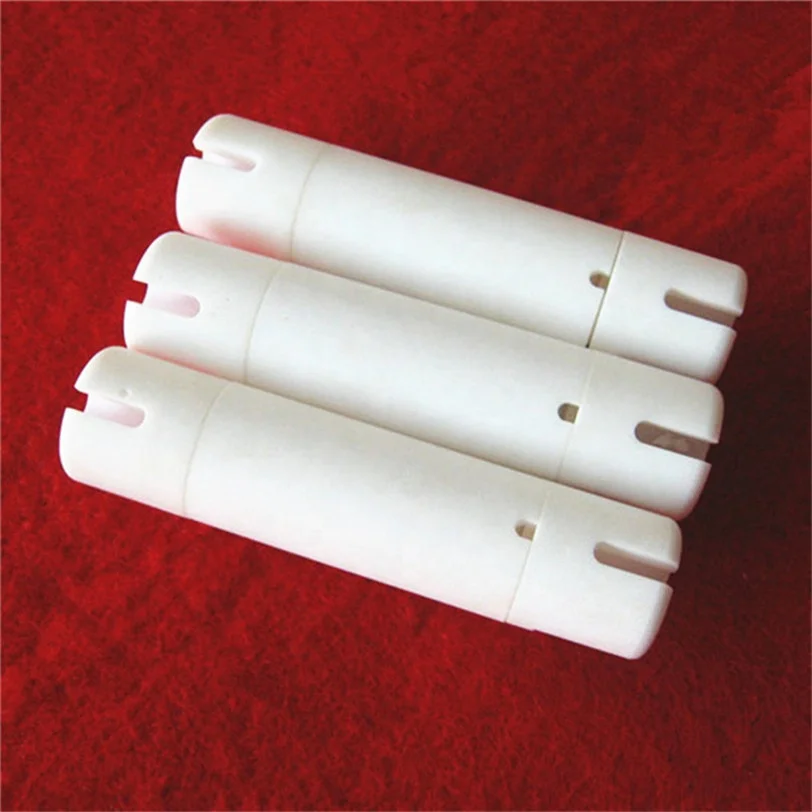

Customized Macor Insulator Tube Machinable Glass Ceramic Tubes
$10.00
Product Description
Product Name | Customized macor solid shaft machinable glass ceramic thread bar with SS inserts |
Material | Macor |
Key words | machinable glass ceramic shaft |
Advantage | Low density and machinable easily |
Macor ceramic shaft Introduction
Machinable glass ceramic is a highly electrical insulating, heat insulating, vacuum tight composite material of glass and ceramics. It is machinable with common tungsten carbide or high speed steel cutting tools by turning, milling, drilling and sawing.
Machinable glass ceramic shaft Features
1.Is machinable with ordinary metal working tools.2.Allows fast turnaround,no post firing required.
3.Holds tight tolerances, up
to .0005"
4.Withstands high temperature, up to 800
5.Is clean, no outgasing and zero porosity
3.Holds tight tolerances, up
to .0005"
4.Withstands high temperature, up to 800
5.Is clean, no outgasing and zero porosity
Macor shaft Application
MGC: Machinable glass ceramic have the following applications:
1) Electrical or thermal insulator
2) Structural components
3) Semi-conductor processing
4) Electrical and opto-electronic equipment
5) Many other uses.
Machinable glass ceramic | ||||
Property Content | Property Index | Instruction | ||
Density | 2.6g/cm3 | |||
Apparent Porosity | 0.07% | |||
Water Absorption | 0 | |||
Hardness | 4-5 | Mohs | ||
Color | White | |||
Thermal Conductivity | 1.71W/m.k | |||
Long Working Temperature | 800?? | |||
Flexural Strength | ??108MPa | |||
Compression Stength | ??508MPa | |||
