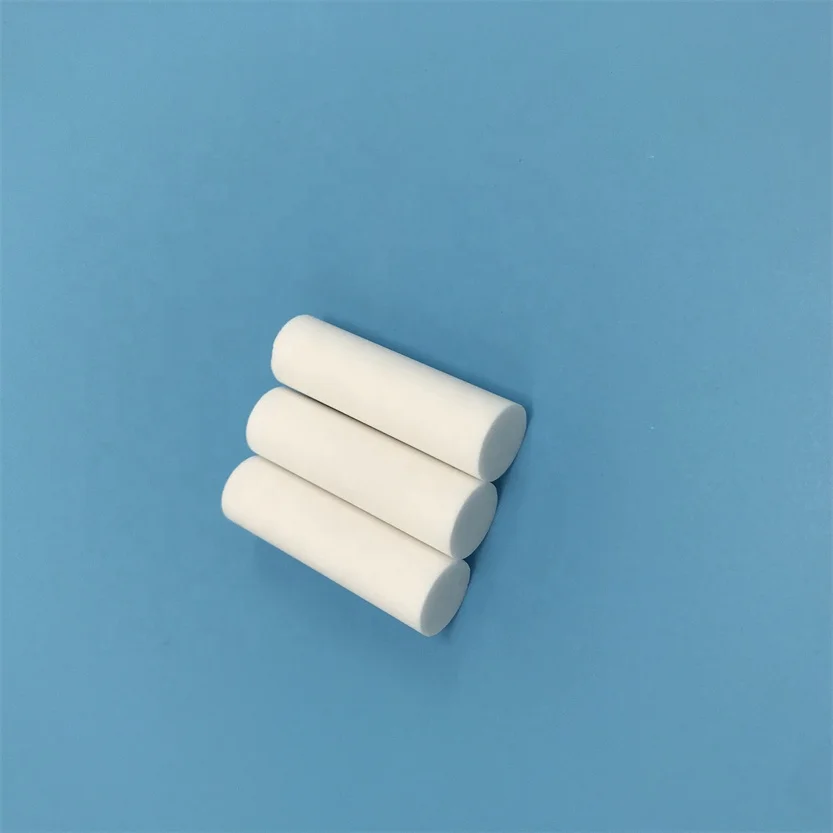

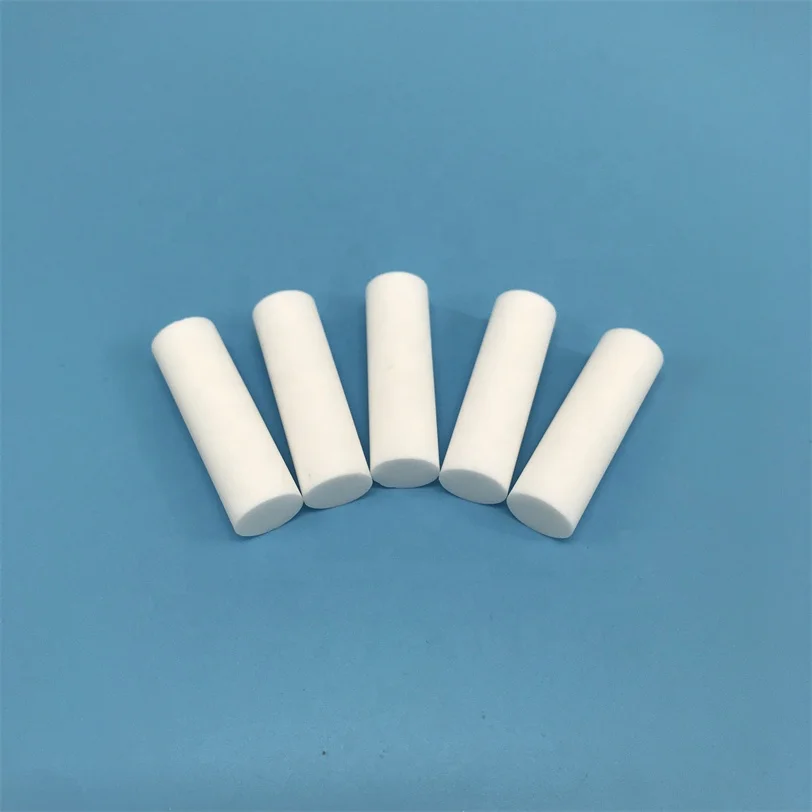

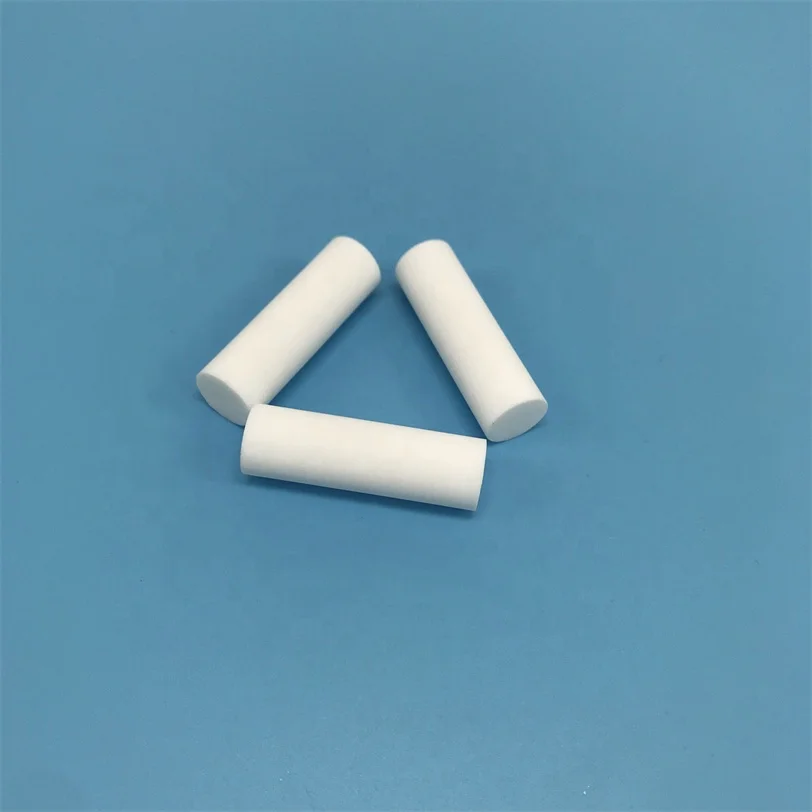

Customized No Porosity Machinable Glass Ceramic Shaft Insulator Ceramic Rod
$35.00
100 in stock
Products Description
Product Name | Customized No Porosity Machinable Glass Ceramic Shaft Insulator Ceramic Rod |
Material | Machinable glass ceramic |
Key words | machinable glass ceramic component |
Advantage | Low density and machinable easily |
Introduction
Machinable glass-ceramic is a fluorphlogopite glass-ceramic with synthetic mica as the main crystal phase, and the main components are fluorphlogopite (Mg3K[AlF2O(SiO3)3]) and glass with silica as the main component. Contains 55% fluorphlogopite and 45% borosilicate glass matrix.
Features
1.Is machinable with ordinary metal working tools.
2.Allows fast turnaround,no post firing required.
3.Holds tight tolerances, up
to .0005"
4.Withstands high temperature, up to 800
5.Is clean, no outgasing and zero porosity
3.Holds tight tolerances, up
to .0005"
4.Withstands high temperature, up to 800
5.Is clean, no outgasing and zero porosity
Application
1.Precision coil holders
2.High voltage insulators
3.Gaskets, cavities and reflectors in laser components
4.Thermal fracture in high-temperature processing equipment.
5.Coil support and vacuum feedthrough 6.Aircraft hinges, fixing rings on windows and doors
Machinable glass ceramic | ||||
Property Content | Property Index | Instruction | ||
Density | 2.6g/cm3 | |||
Apparent Porosity | 0.07% | |||
Water Absorption | 0 | |||
Hardness | 4-5 | Mohs | ||
Color | White | |||
Thermal Conductivity | 1.71W/m.k | |||
Long Working Temperature | 800?? | |||
Flexural Strength | ??108MPa | |||
Compression Stength | ??508MPa | |||
