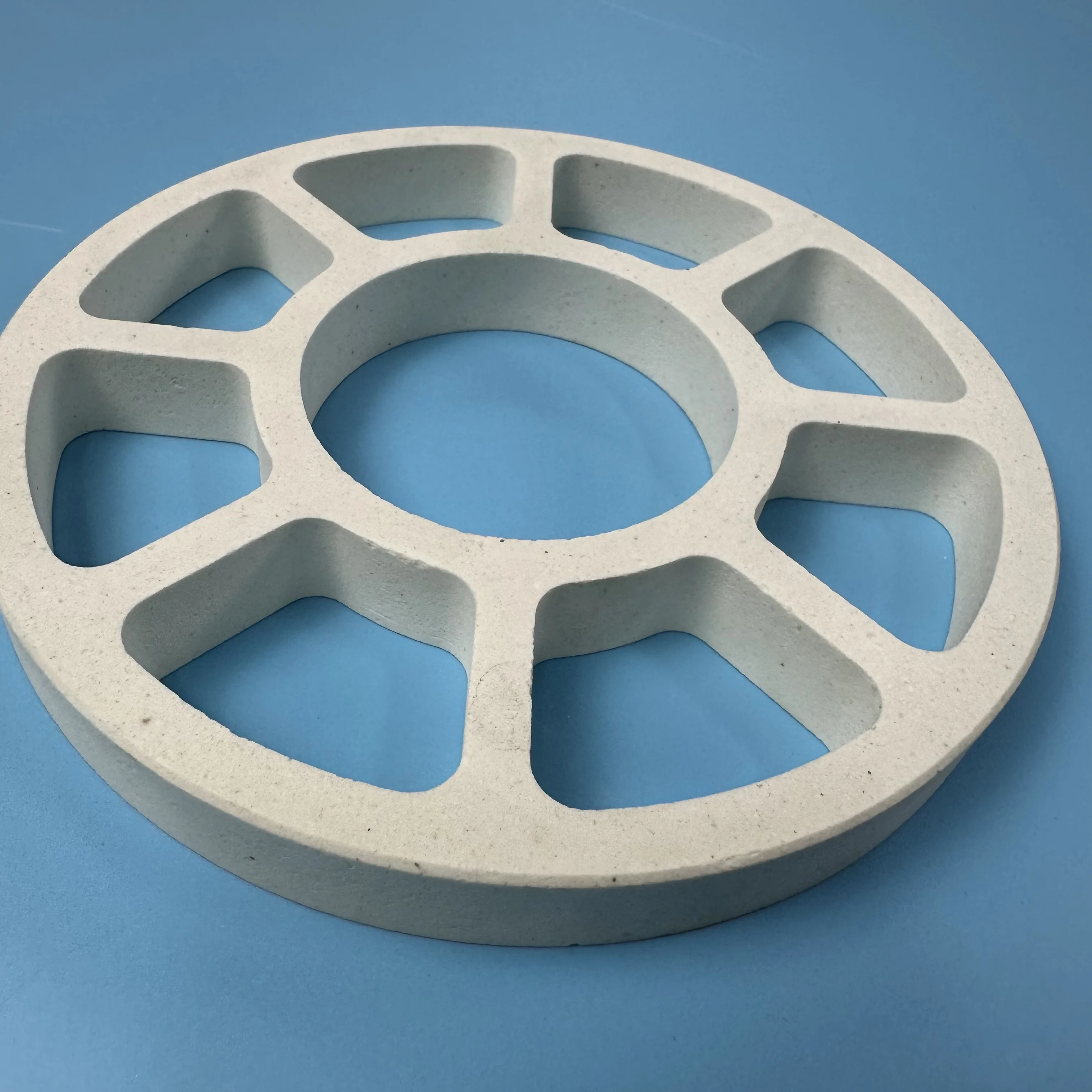

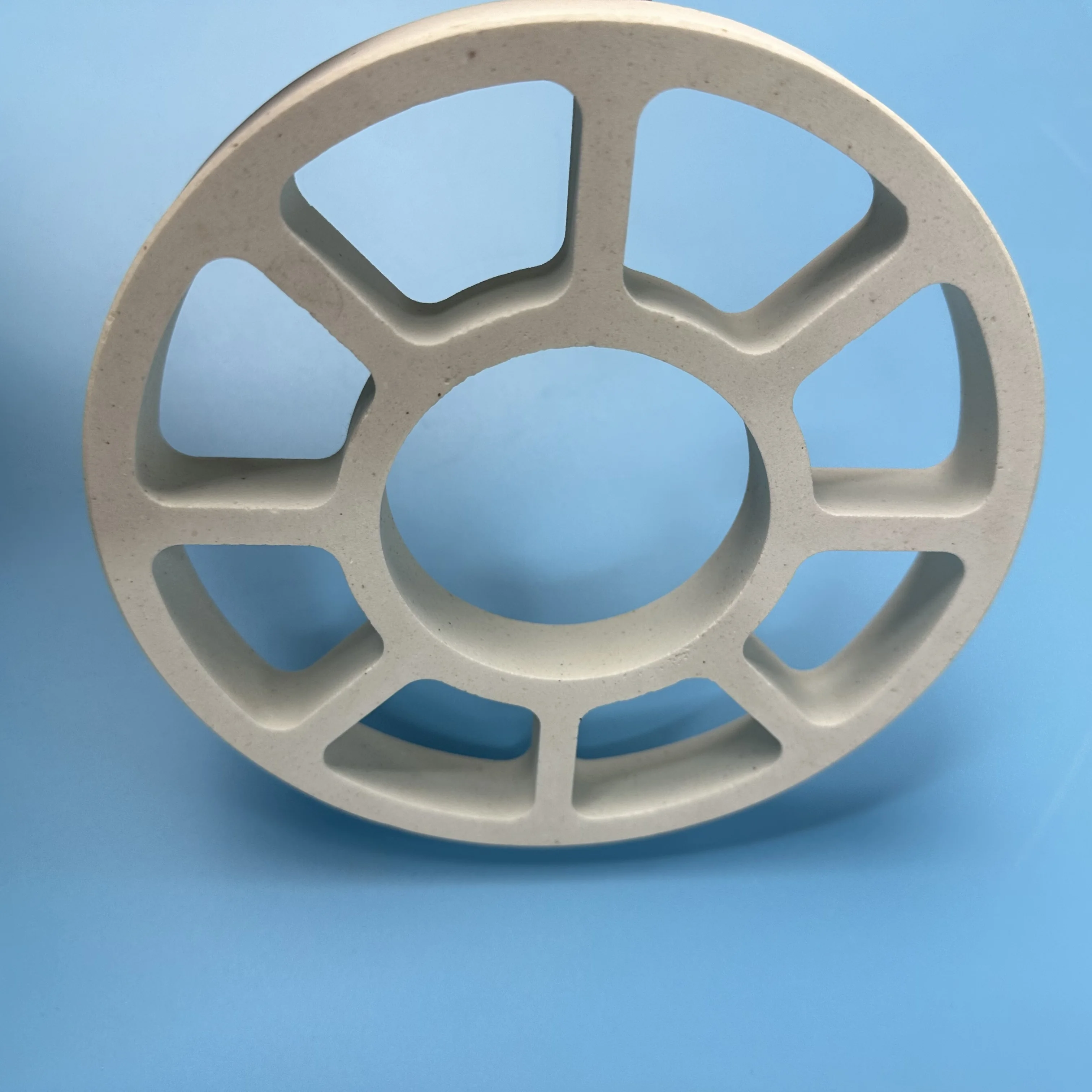

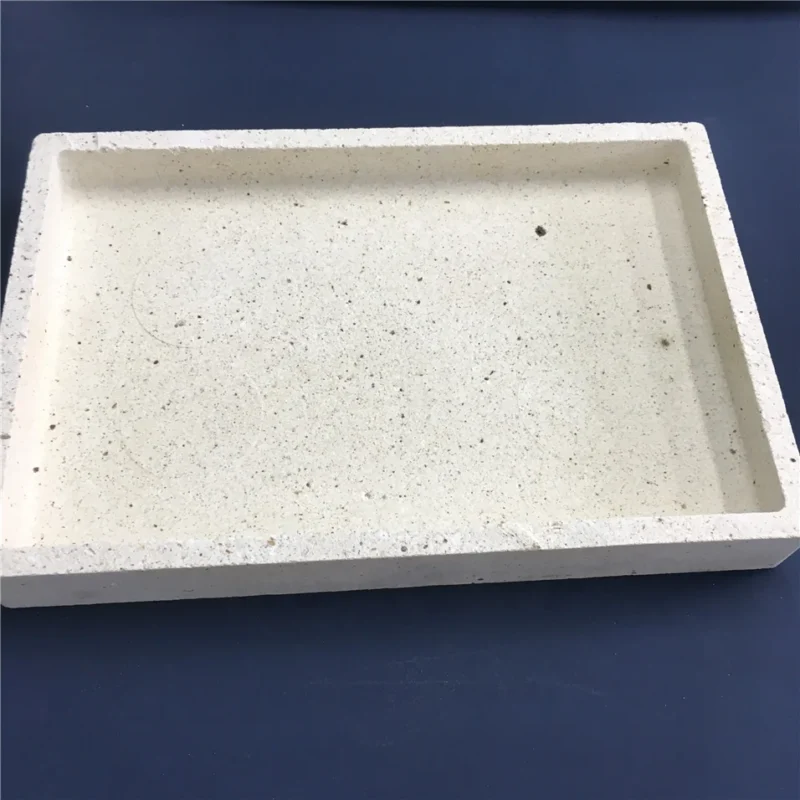

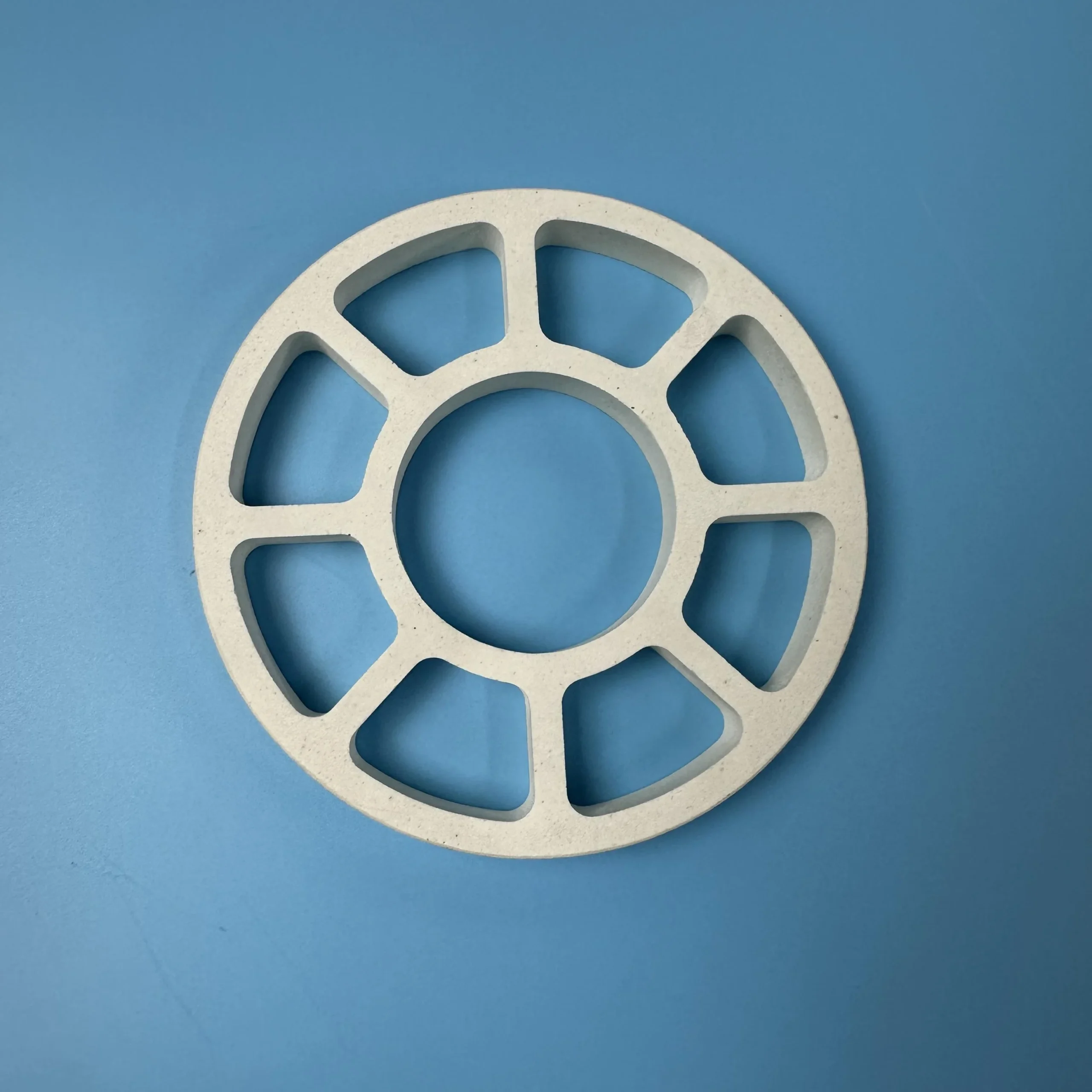

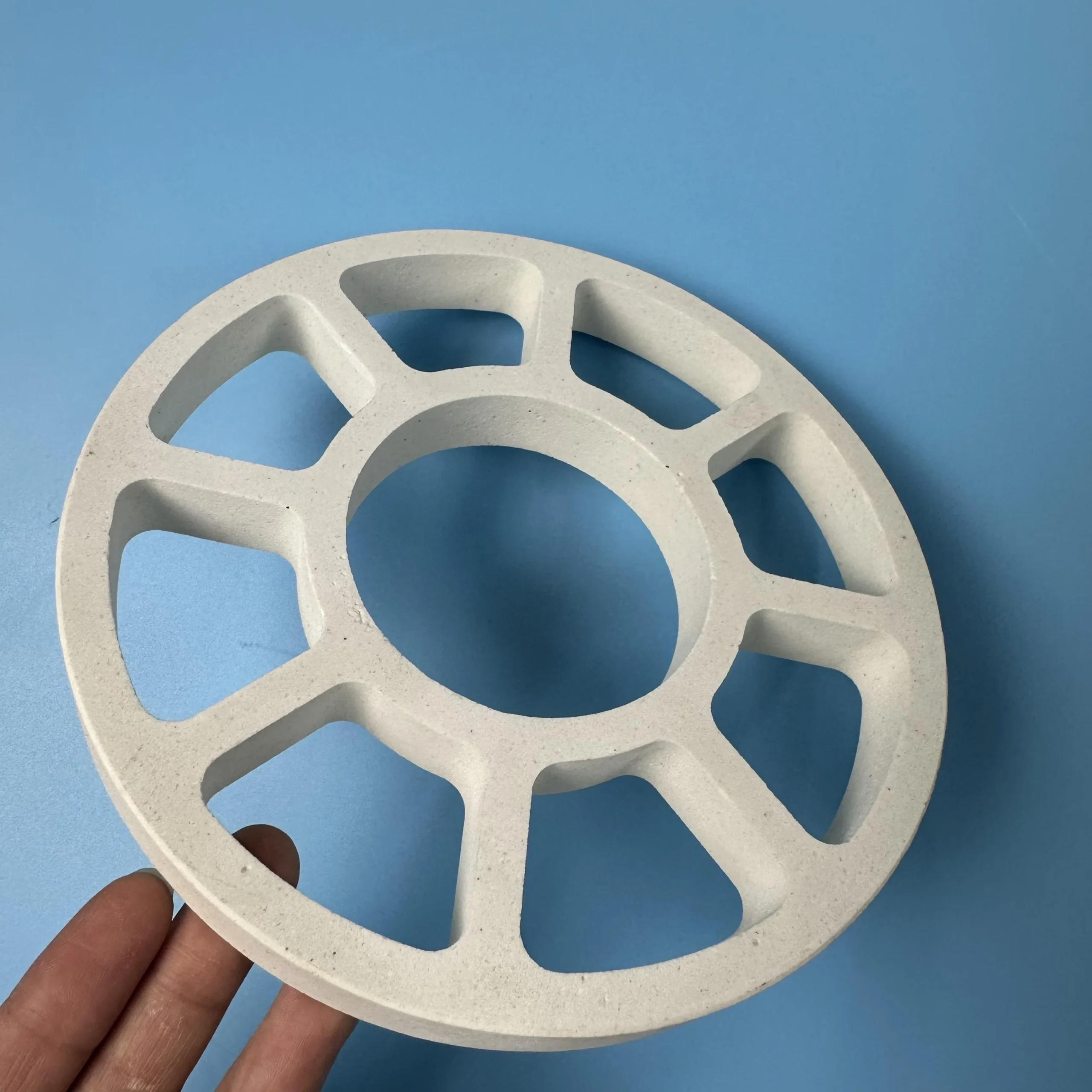

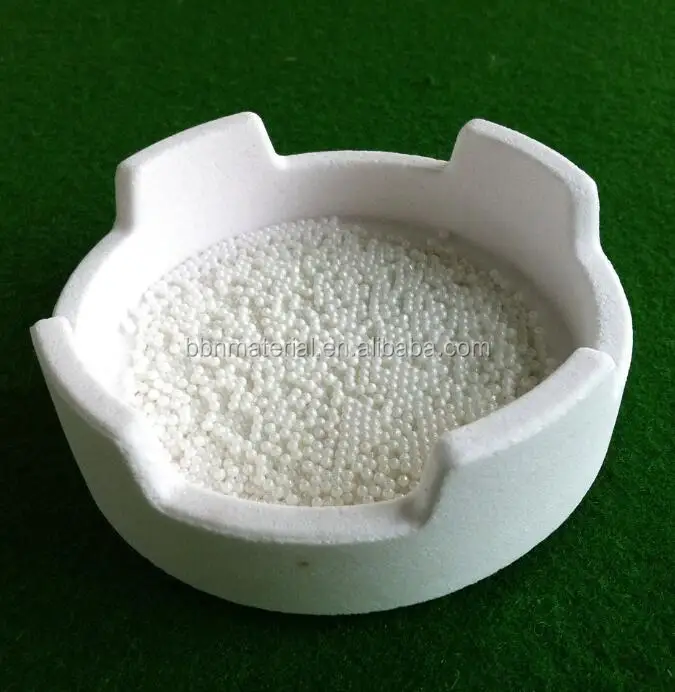

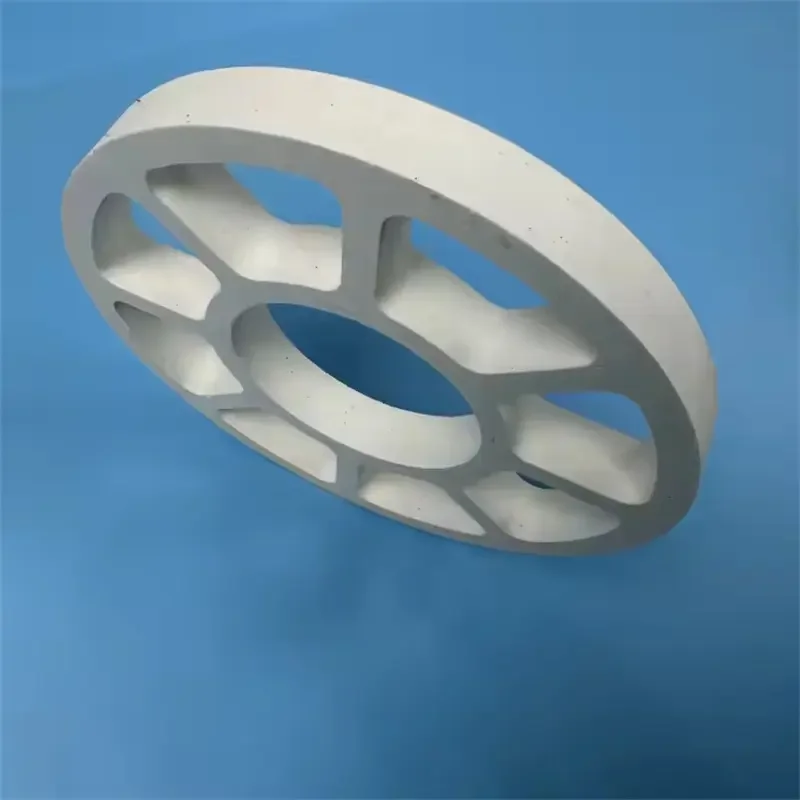

Customized Size Cordierite Mullite Ceramic Saggar Refractory Kiln Setter Plate with Hole for Sintering Use
$12.40
100 in stock
Product Description
Refractory mullite cordierite ceramic setter plate for stove furniture
Chemical composition (%) | Al2O3 | 55 ~65 | 25 ~38 | 40~52 | 60 ~70 | 70 ~80 | |
SiO2 | 25~35 | 50 ~60 | 45 ~55 | 25 ~35 | 15 ~25 | ||
MgO | 1~3 | 5 ~10 | 7~9 | 0 ~1 | 0 ~2 | ||
others | <5 | <5 | <5 | <5 | <5 | ||
Coefficient of heat expansion(×10-6K-1)(20~800°C) | ≤5 | ≤3.5 | ≤3.5 | ≤5 | ≤6 | ||
Specific Heat (J/Kg.K)(20~1000°C) | 900~1150 | 900~1100 | 900~1150 | 1000~1150 | 1100 ~1300 | ||
Thermal Conductivity (W/m.k) (20~1000°C) | 1.5~2.0 | 1.5~2.5 | 1.5~2.0 | 1.5~2.0 | 1.5~2.5 | ||
Impact Thermal Resistance(°C/min) | ≥300 | ≥300 | ≥350 | ≥350 | ≥300 | ||
Max. Working Tem.(°C) | 1350 | 1300 | 1320 | 1450 | 1550 | ||
Water absorption(%) | 15-25 | 15 ~25 | 15 ~25 | 15 ~25 | 15 ~25 | ||
Compressive strength (MPa) | ≥28 | ≥28 | ≥25 | ≥28 | ≥30 | ||
* Introduction
Cordierite Ceramic main raw material include the talc, clay, alumina, feldspar general manufacturing ceramic technology. Its
sintering range is narrower, it is difficult to obtain a dense body. It often used chlorite, magnesium carbonate, barium
carbonate, zirconium silicate, zirconium dioxide, boron oxide, spodumene as the additives capable because of lowering the
sintering .
Features
1.Low thermal conductivity
2.Well thermal shock resistance
3.High temperature stable performance
4.Good sound insulation
5.Wide range of bulk density (300-600 kg/m3
Our Company
Baibo is a modern enterprise management company, who devote themselves to the service of product research and development, construction and maintenance.
Our company has a long history. We own the advanced equipment, a young, energetic, proficient and experienced team of professionals which with leading technology strength, excellent operational management and high-quality services what made us be recognized by customers of the chemical, petroleum, electric power, metallurgy, building material, aerospace, machinery and other industries.
Our company has a long history. We own the advanced equipment, a young, energetic, proficient and experienced team of professionals which with leading technology strength, excellent operational management and high-quality services what made us be recognized by customers of the chemical, petroleum, electric power, metallurgy, building material, aerospace, machinery and other industries.
Reputation
Our Service
Packing & Delivery
FAQ
1??What products and service can you offer us?
Answer: With the development more than 20 years, now we have 6 business division and we are supplying Quartz Glass (Tube, Rod,
Plate and customized parts), optical glass and cuvette, and also various precise ceramics, porous ceramics and refractory
ceramics. We have the full processing line for ceramic thick film resistors, far infrared ceramic glass heating panel, quartz
tube/ceramic plate ozone generator and porous metal fiber felt. For all the products, we can design and customize according to the
clients’ demand.
2: Before mass order, can you offer samples? How will you charge for them?
Answer: We are willing to offer samples to lower your purchasing risk. Generally, if from inventory, we can deliver out within
3days, however if need processing, we can deliver out within 15days. For some difficult items, the delivery time will be decided
by its grade of difficulty. For some low value items, we can offer free sample, however we would like you to afford the freight
cost. For customized products, we need to charge the developing cost.
3: What test report or certificate can you offer? What achievements have you made in research and development?
Answer: Till the end of 2021, we have passed many ROHS, CE, MSDS tests and also the ISO9001 authentication. We have 8 registered
trademark and 25 patents. Also we won the title of China High-tech Enterprise and Jiangsu Private Science and Technology
Enterprises.
4: Do you have any agent in our area? Can you export your products directly?
Answer: Till the end of 2021, we haven’t authorized any company or person as our regional agent. From 2008, we have the export
qualification and professional export team, and till the end of 2021, we have exporting our products to more than 108 countries
and regions, and our clients can contact us and purchase our products or service directly.
5: If the quality can not meet the requirement or any loss during the freight, how should we do?
Answer: We have strict QC test and professional QC team. We are always offering qualified products. If anything goes wrong, the
quality can not meet requirement on the contract, we will reproduce the qualified products or refund the payment. We have the
professional packing team and will pack the product in safe package for long distance delivery. If any loss during the freight, we
hope you can assistant us to claim from the logistics company and we will arrange the replacement accordingly.
