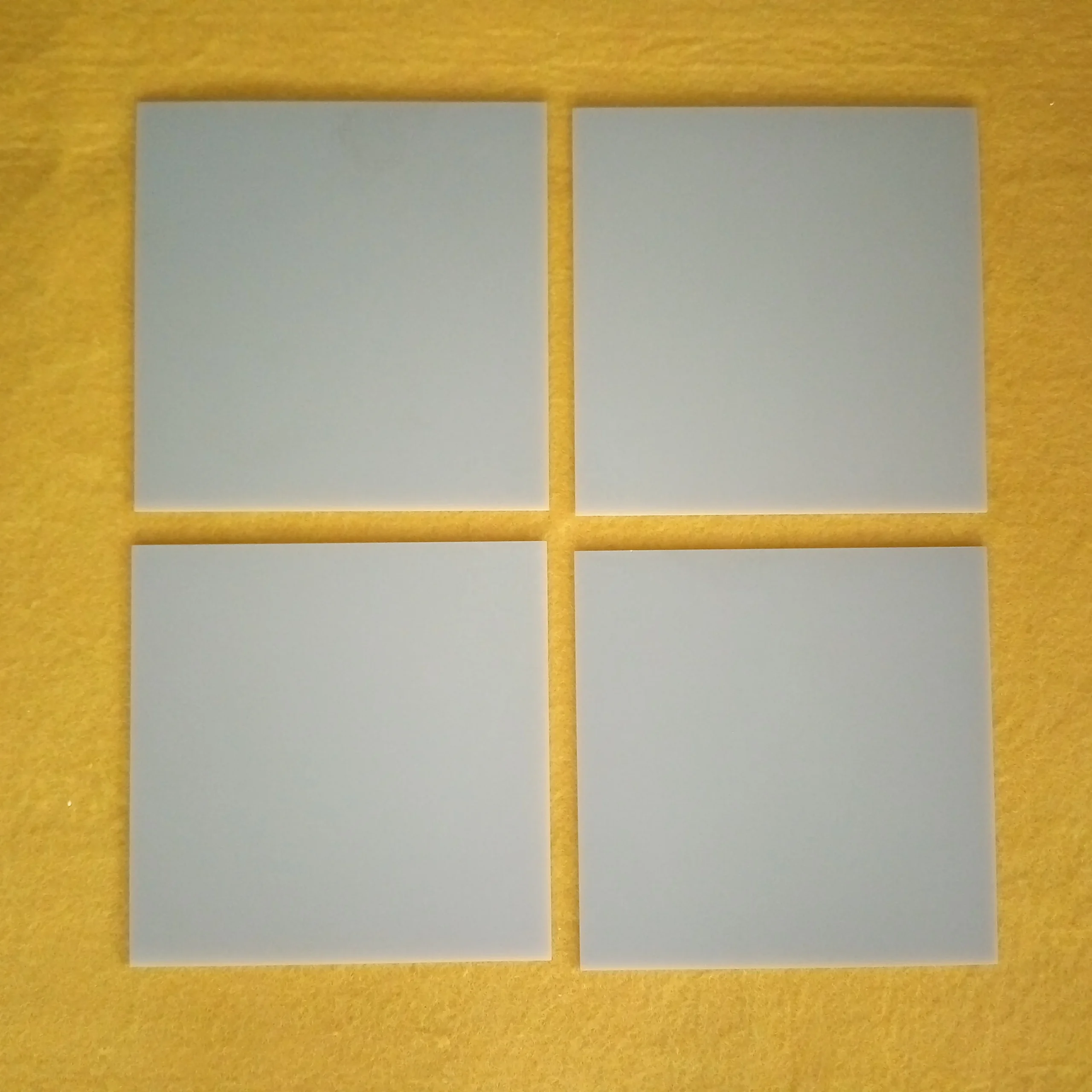

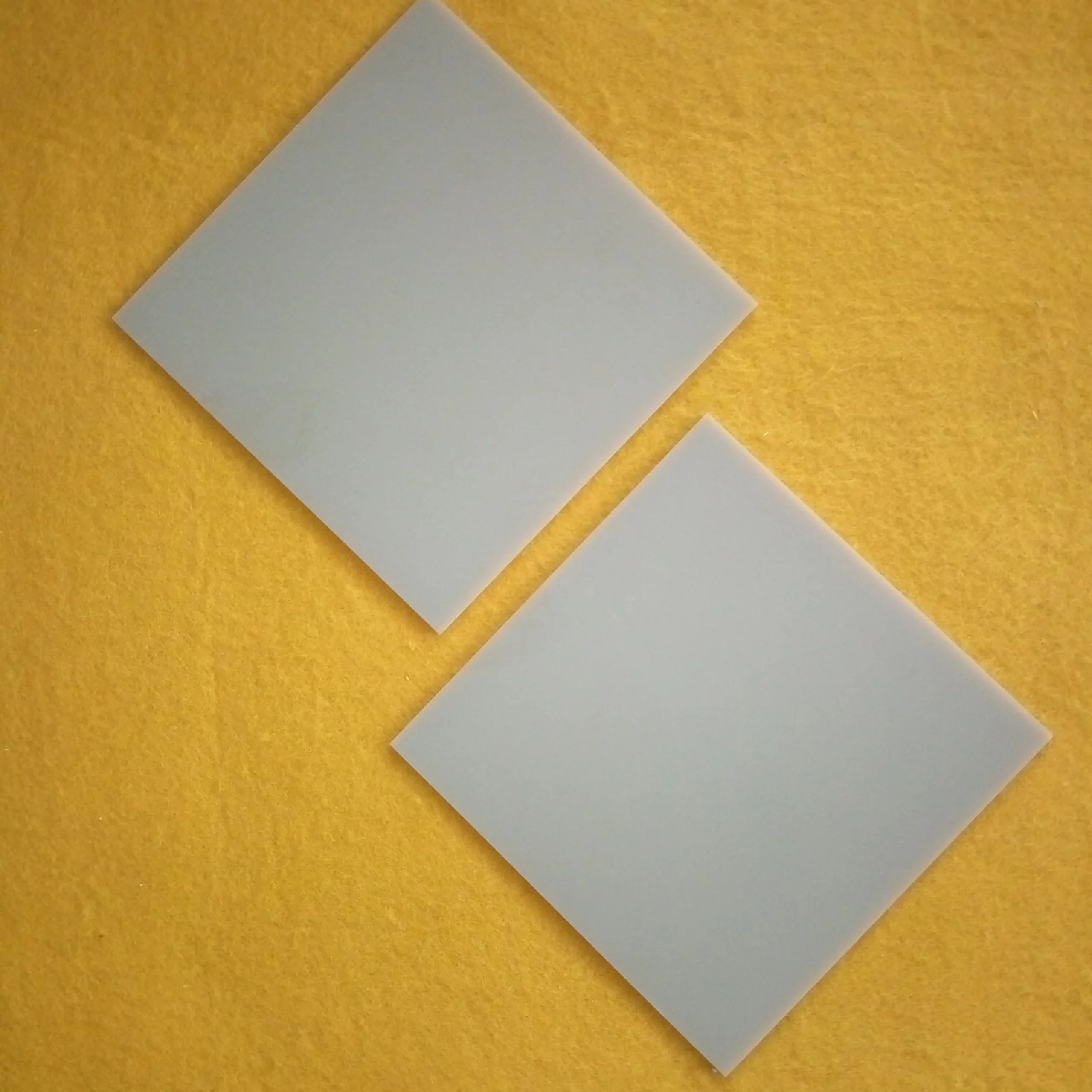

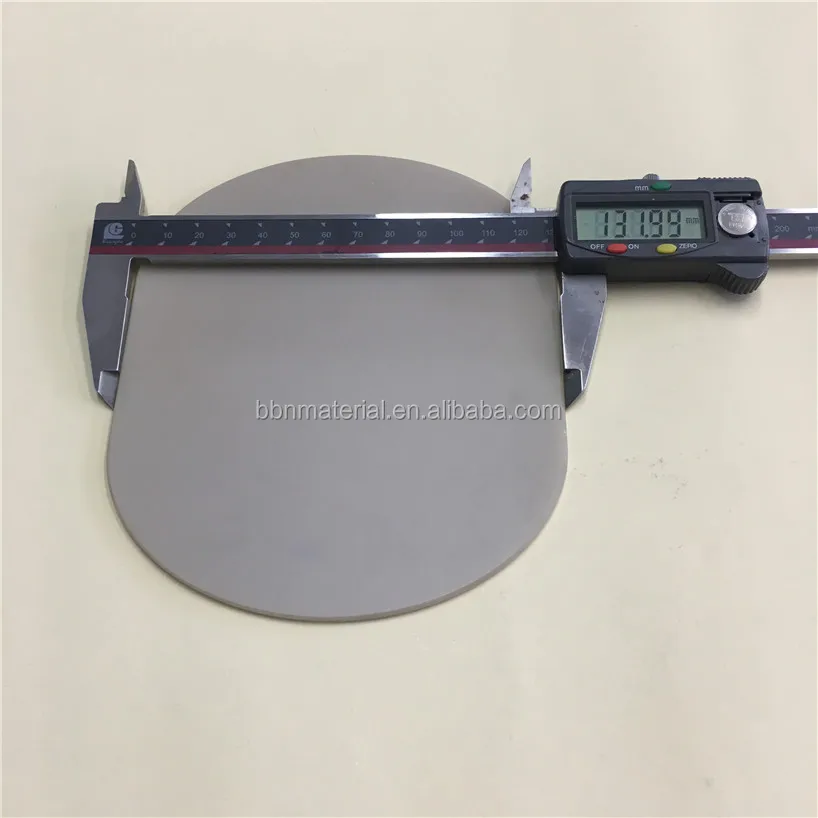

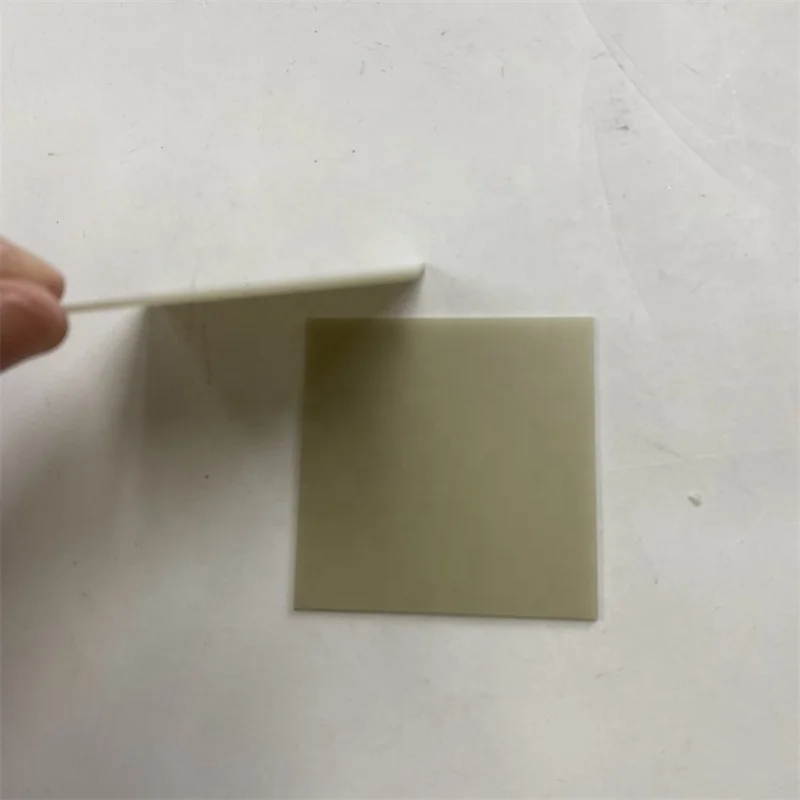

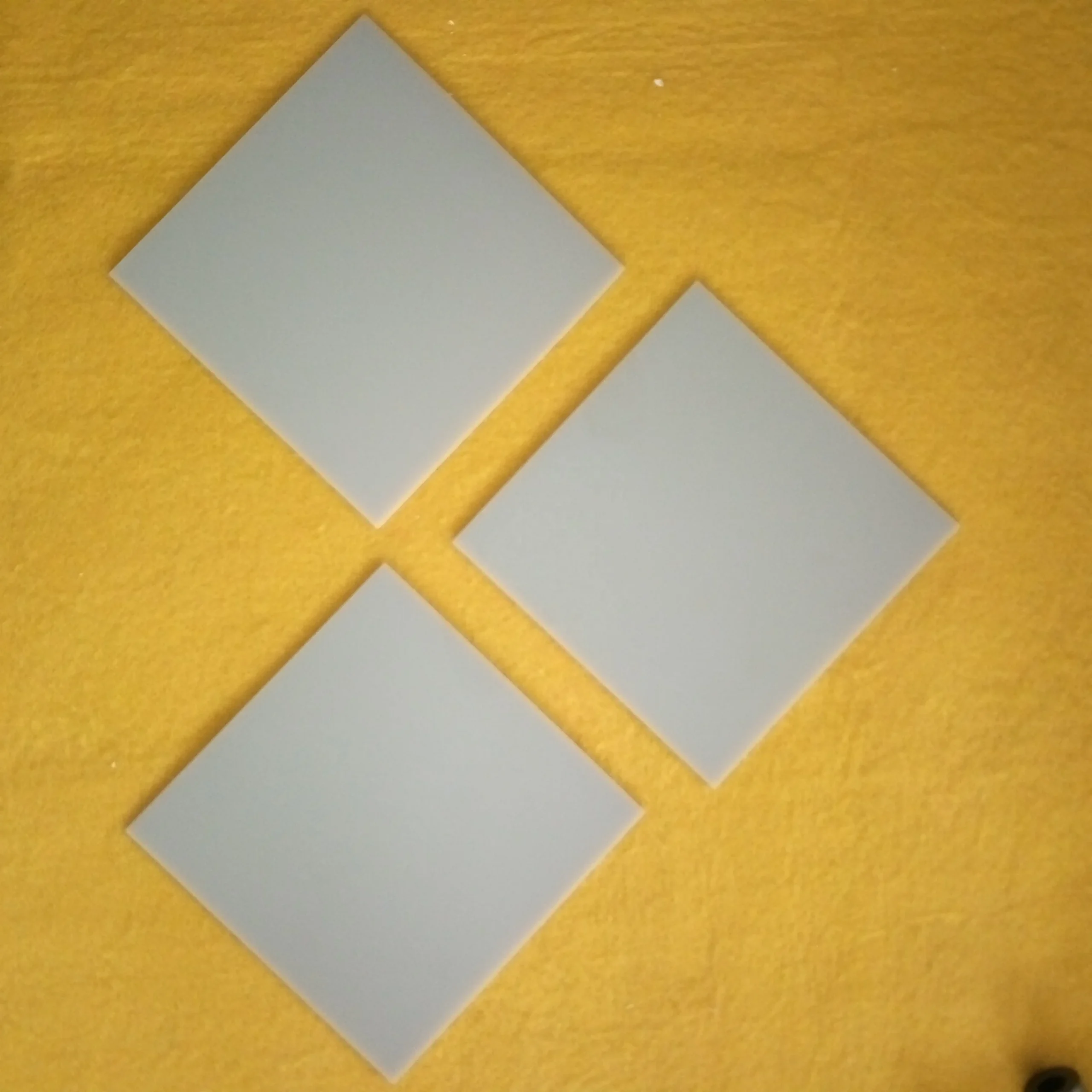

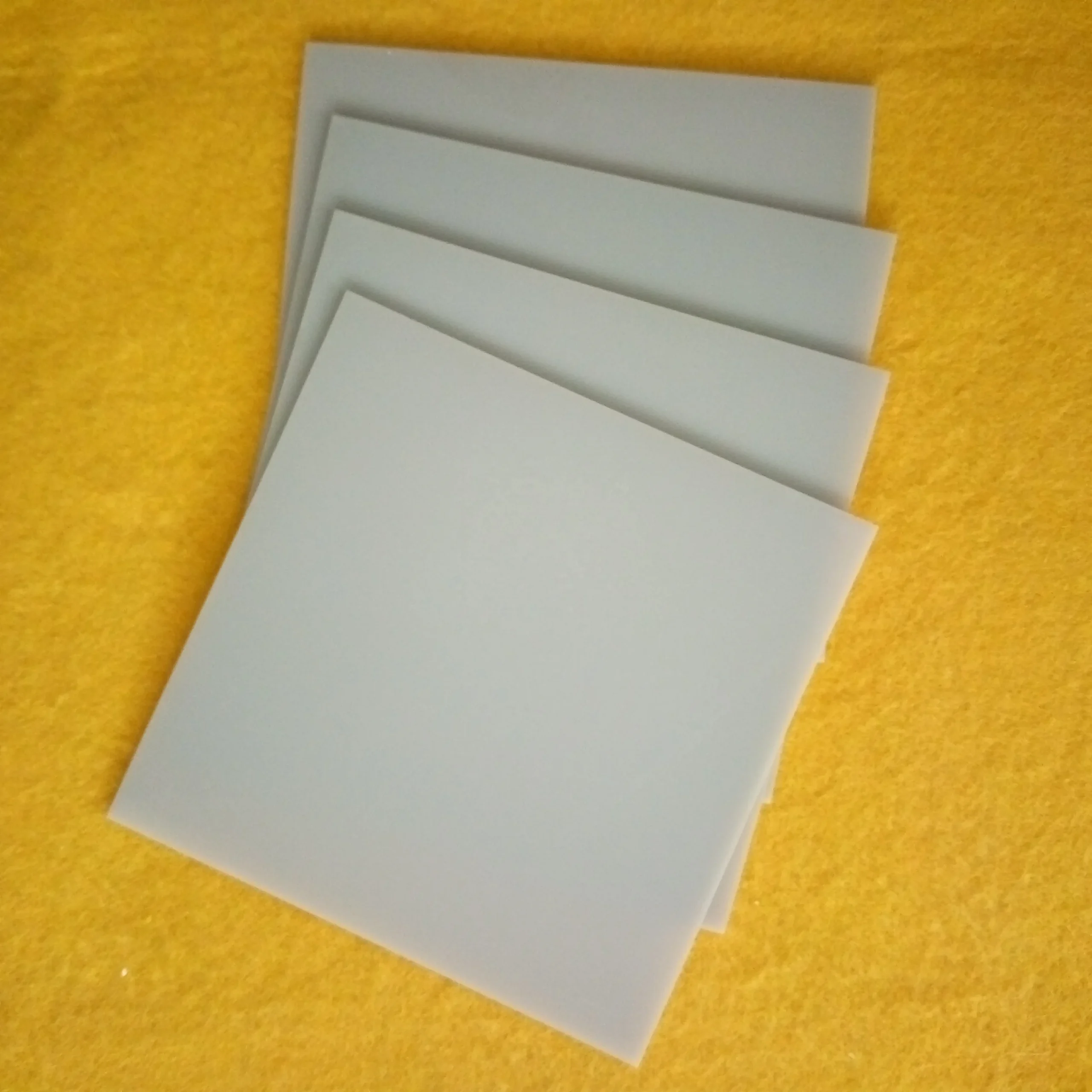

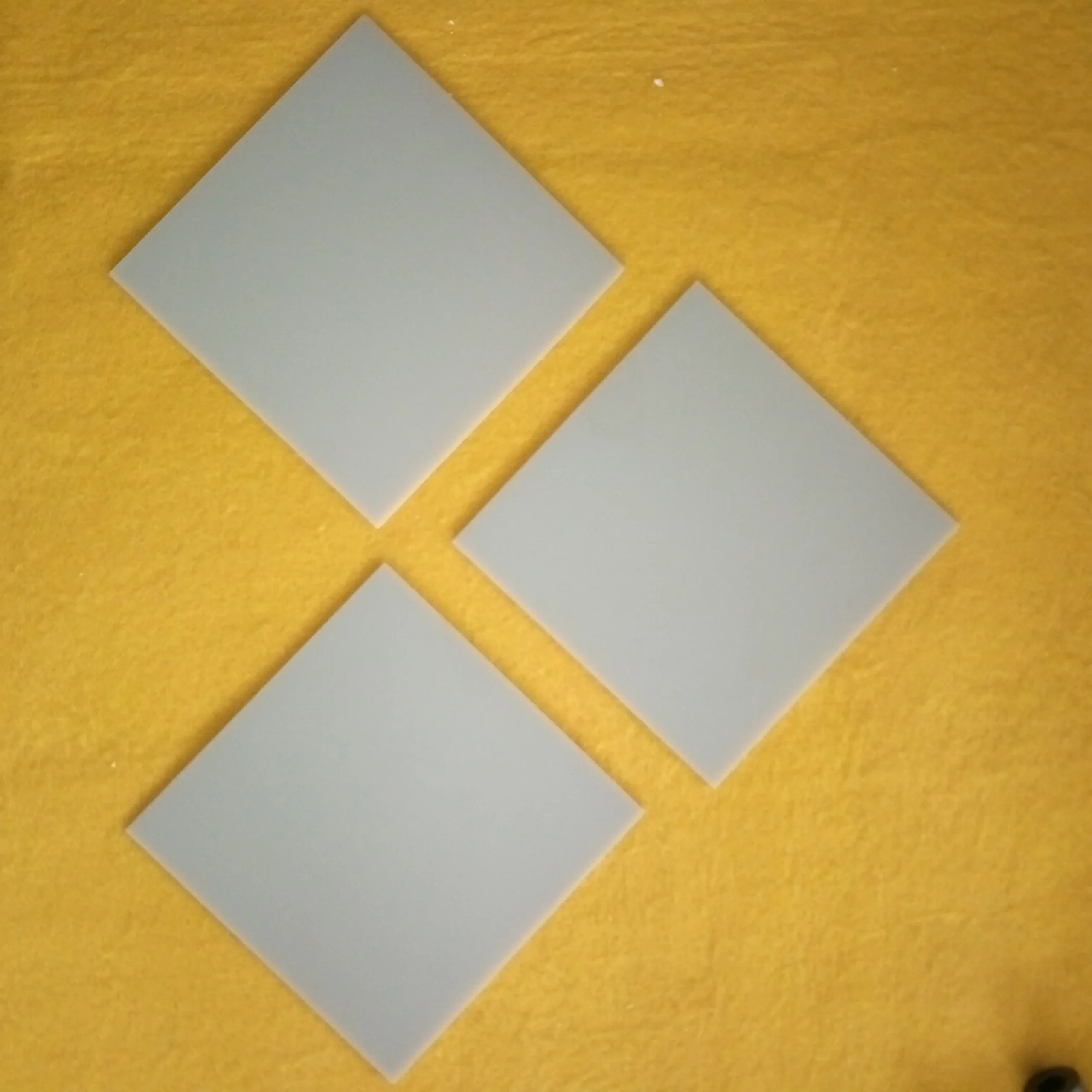

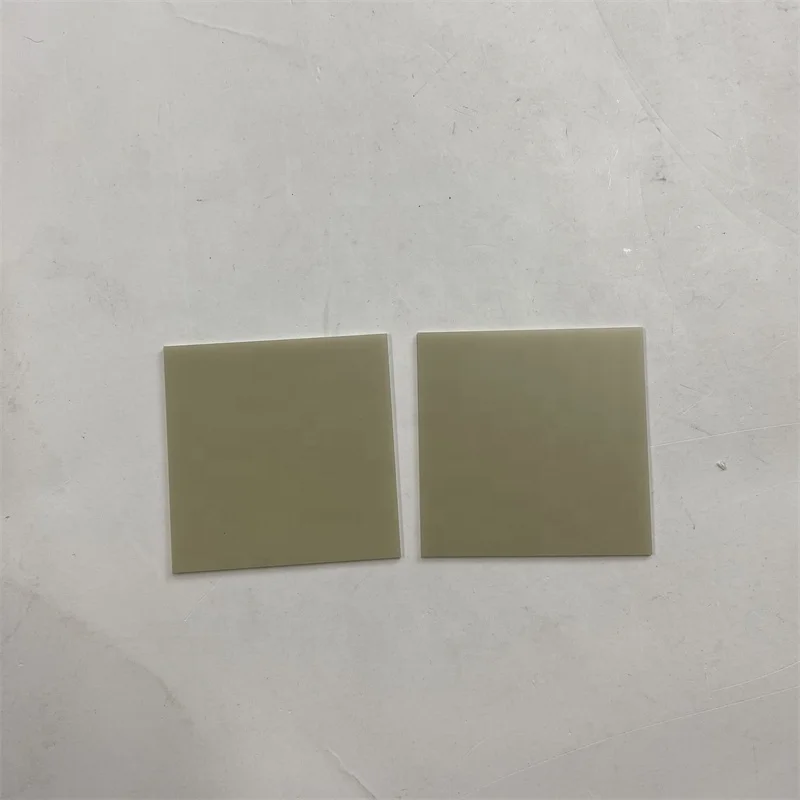

High Thermal Conductivity ALN Ceramic Plates With min 170 W/m/K
$100.00
100 in stock
Product Description
low thermal coefficient alumina nitride ceramic PCB sensor plate sheet
The aln ceramic has high thermal conductivity of more than 170W/m. K, high resistivity, low dielectric loss, good insulation and some other excellent properties.

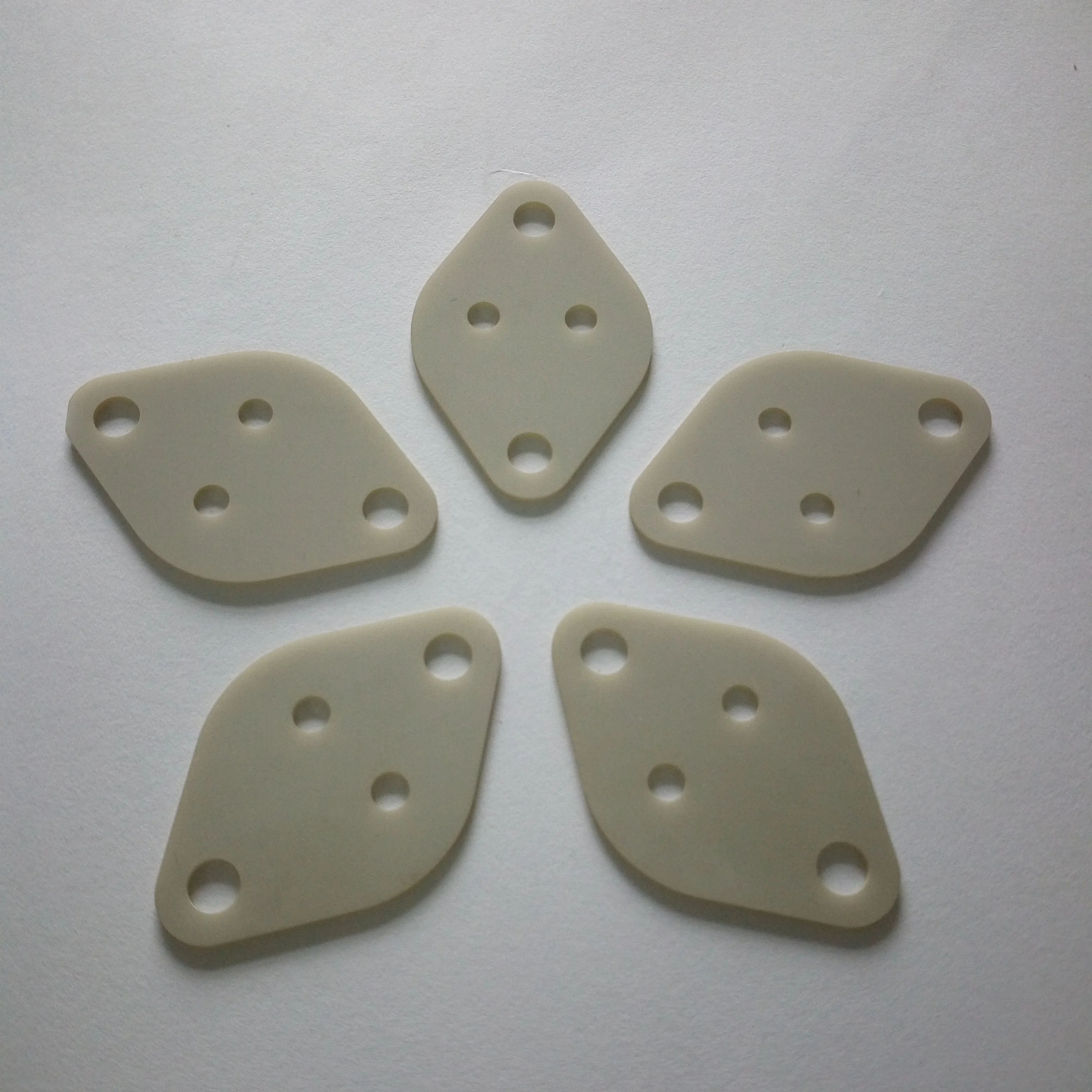

Baibo's AlN can be the best solution in electronics applications where strict conditions are required, such as power modules (MOSFET, IGBT), LED packages for cooling and protecting circuits, packages and modules.
Main Features
High thermal conductivity,(170-230W/mK), up to 9.5 times than that of Alumina
Similar coefficient of thermal expansion to that of silicon (Si)
Higher electric insulation, and Smaller dielectric constant
Higher mechanical strength (450MPa)
Superior corrosion resistance against molten metal
Very high purity, no toxicity
Advantage
AlN is stable in inert atmospheres at temperatures over 2000°C. It exhibits high thermal conductivity but is, uniquely, a strong dielectric. This unusual combination of properties makes AlN a critical advanced material for many future applications in optics,lighting, electronics and renewable energy.
Technical Date of ALN | ||||
Property content | Unit | Property index | ||
Density | g/cm3 | ≥3.30g/cm3 | ||
Water absorption | % | 0 | ||
Thermal conductivity | (20??, W/m.k) | ≥170 | ||
Linear expansion coefficient | (RT-400?棬10-6?? | 4.4 | ||
Flexural strength | Mpa | ≥330 | ||
Bulk resistance | ≥1014 | |||
Dielectric constant | 1 MHz | 9.0 | ||
Dissipation factor | 1 MHz | 3*10-4 | ||
Dielectric strength | KV/mm | ≥15 | ||
Surface roughness | Ra(μm?? | 0.3~0.5 | ||
Camber | ??~25.4??length)) | 0.03~0.05 | ||
Appearance | Dense | |||
Note: 1. Surface roughness can be reached 0.1μm after polished. | ||||
2. Size tolerance can be controlled in ±0.10mm with laser machined. | ||||
3. Special specifications can be suppled upon requests. | ||||
