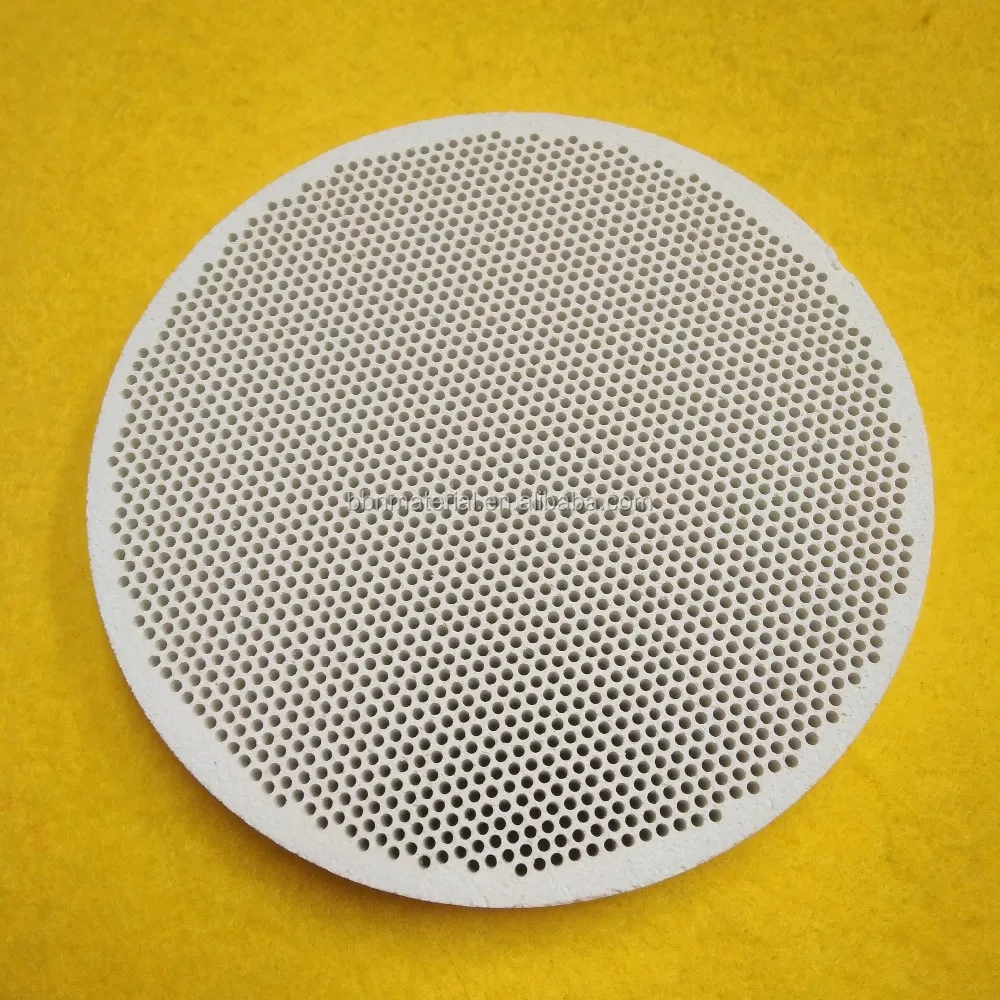

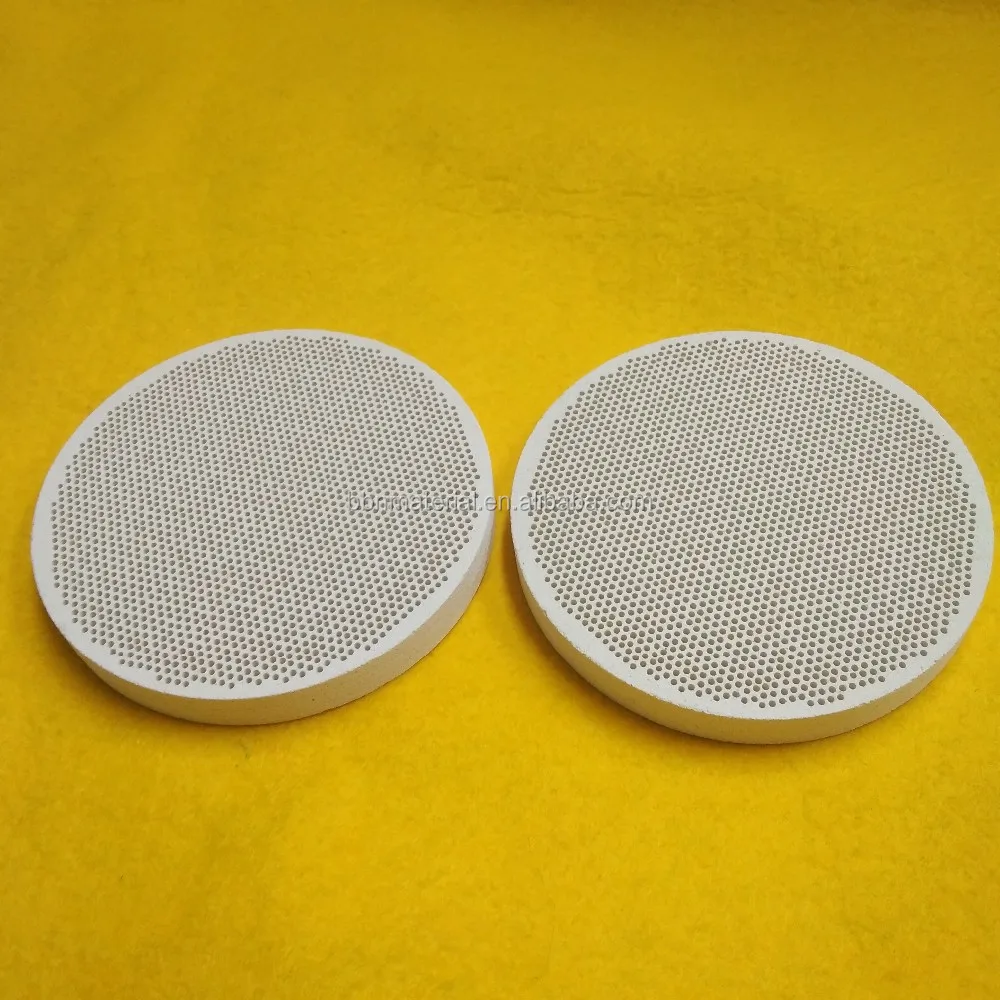

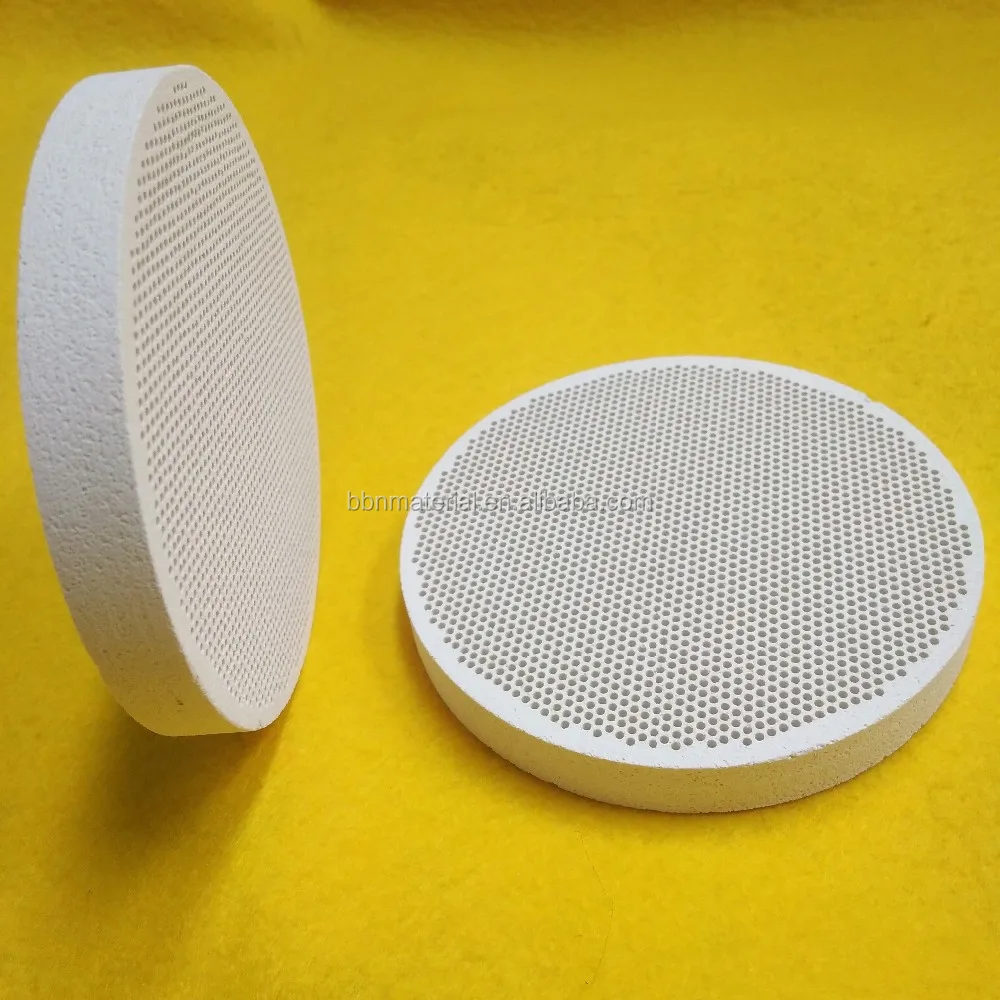

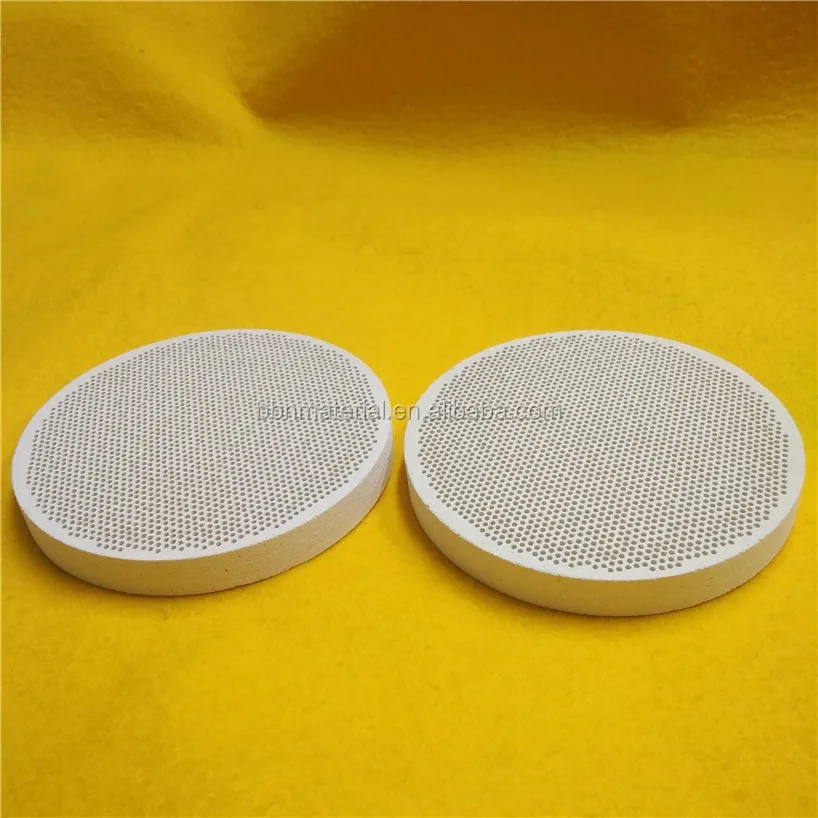

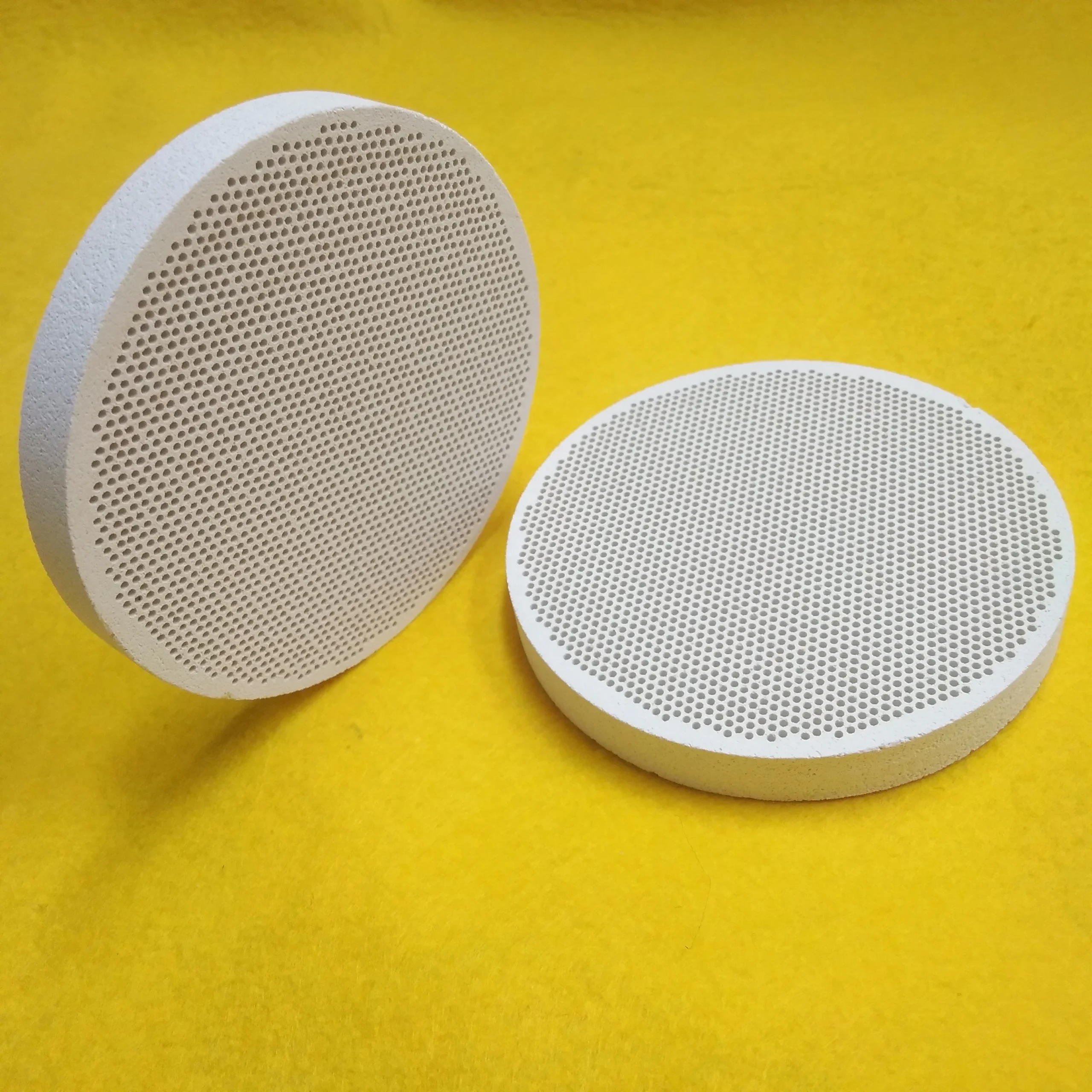

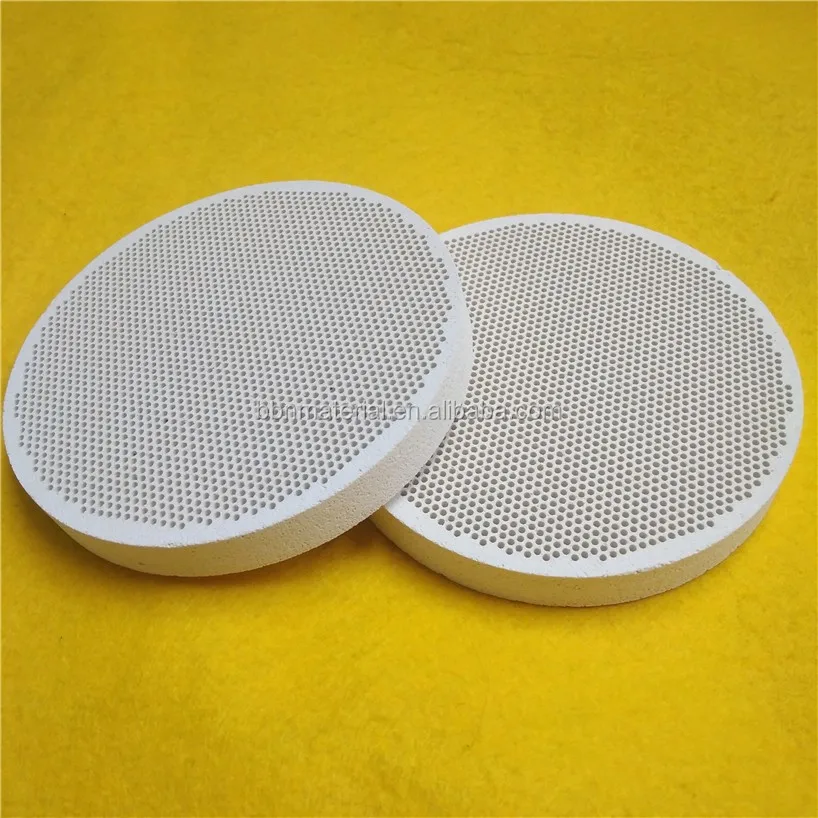

Infrared Honeycomb Ceramic Plate for Gas burner Infared Radiation Heat Extruder Honeycomb Ceramic Cordierite Plate
$2.00
Chemical composition (%) | Al2O3 | 55 ~65 | 25 ~38 | 40~52 | 60 ~70 | 70 ~80 | |
SiO2 | 25~35 | 50 ~60 | 45 ~55 | 25 ~35 | 15 ~25 | ||
MgO | 1~3 | 5 ~10 | 7~9 | 0 ~1 | 0 ~2 | ||
others | <5 | <5 | <5 | <5 | <5 | ||
Coefficient of heat expansion(×10-6K-1)(20~800°C) | ≤5 | ≤3.5 | ≤3.5 | ≤5 | ≤6 | ||
Specific Heat (J/Kg.K)(20~1000°C) | 900~1150 | 900~1100 | 900~1150 | 1000~1150 | 1100 ~1300 | ||
Thermal Conductivity (W/m.k) (20~1000°C) | 1.5~2.0 | 1.5~2.5 | 1.5~2.0 | 1.5~2.0 | 1.5~2.5 | ||
Impact Thermal Resistance(°C/min) | ≥300 | ≥300 | ≥350 | ≥350 | ≥300 | ||
Max. Working Tem.(°C) | 1350 | 1300 | 1320 | 1450 | 1550 | ||
Water absorption(%) | 15-25 | 15 ~25 | 15 ~25 | 15 ~25 | 15 ~25 | ||
Compressive strength (MPa) | ≥28 | ≥28 | ≥25 | ≥28 | ≥30 | ||
honeycomb ceramic appear incandescent, but there is no obvious flame on the surface.
It mainly heats objects in the form of thermal radiation, which is penetrating to the heated material, and its heat is easily absorbed by the heated object.
2. The product has high strength and good thermal shock resistance.
3. Low noise when igniting, no obvious flame when burning.
4. Reduce about 90% of harmful exhaust emissions, such as nitrogen oxides, carbon monoxide, etc. when working.
1??What products and service can you offer us?
Answer: With the development more than 20 years, now we have 11 business division and we are supplying Quartz Glass (Tube, Rod, Plate and customized parts), optical glass and cuvette, and also various precise ceramics, porous ceramics and refractory ceramics. We have the full processing line for ceramic thick film resistors, far infrared ceramic glass heating panel, quartz tube/ceramic plate ozone generator ??porous metal fiber felt ?? polyester fiber cotton products and silicone rubber??concentrated essence aroma. For all the products, we can design and customize according to the clients’ demand.
2: Before mass order, can you offer samples? How will you charge for them?
Answer: We are willing to offer samples to lower your purchasing risk. Generally, if from inventory, we can deliver out within 3days, however if need processing, we can deliver out within 15days. For some difficult items, the delivery time will be decided by its grade of difficulty. For some low value items, we can offer free sample, however we would like you to afford the freight cost. For customized products, we need to charge the developing cost.
3: What test report or certificate can you offer? What achievements have you made in research and development?
Answer: Till the end of 2021, we have passed ROHS??CE??MSDS??LVD??FDA??EMC tests and also the ISO9001 authentication??SGS??TÜV. We have 8 registered trademark and 40 patents. Also we won the title of China High-tech Enterprise and Jiangsu Private Science and Technology Enterprises.
4: Do you have any agent in our area? Can you export your products directly?
Answer: Till the end of 2024, we haven’t authorized any company or person as our regional agent. From 2008, we have the export qualification and professional export team, and till the end of 2024, we have exporting our products to more than 116 countries and regions, and our clients can contact us and purchase our products or service directly.
5: If the quality can not meet the requirement or any loss during the freight, how should we do?
Answer: We have strict QC test and professional QC team. We are always offering qualified products. If anything goes wrong, the quality can not meet requirement on the contract, we will reproduce the qualified products or refund the payment. We have the professional packing team and will pack the product in safe package for long distance delivery. If any loss during the freight, we hope you can assistant us to claim from the logistics company and we will arrange the replacement accordingly.
Answer: We are willing to offer samples to lower your purchasing risk. Generally, if from inventory, we can deliver out within 3days, however if need processing, we can deliver out within 15days. For some difficult items, the delivery time will be decided by its grade of difficulty. For some low value items, we can offer free sample, however we would like you to afford the freight cost. For customized products, we need to charge the developing cost.
3: What test report or certificate can you offer? What achievements have you made in research and development?
Answer: Till the end of 2021, we have passed ROHS??CE??MSDS??LVD??FDA??EMC tests and also the ISO9001 authentication??SGS??TÜV. We have 8 registered trademark and 40 patents. Also we won the title of China High-tech Enterprise and Jiangsu Private Science and Technology Enterprises.
Answer: Till the end of 2024, we haven’t authorized any company or person as our regional agent. From 2008, we have the export qualification and professional export team, and till the end of 2024, we have exporting our products to more than 116 countries and regions, and our clients can contact us and purchase our products or service directly.
Answer: We have strict QC test and professional QC team. We are always offering qualified products. If anything goes wrong, the quality can not meet requirement on the contract, we will reproduce the qualified products or refund the payment. We have the professional packing team and will pack the product in safe package for long distance delivery. If any loss during the freight, we hope you can assistant us to claim from the logistics company and we will arrange the replacement accordingly.
| Model Number |
BBSRE002 |
|---|
