Refractory Honeycomb Ceramic Plate Customized Cordierite Disc
$3.00
100 in stock

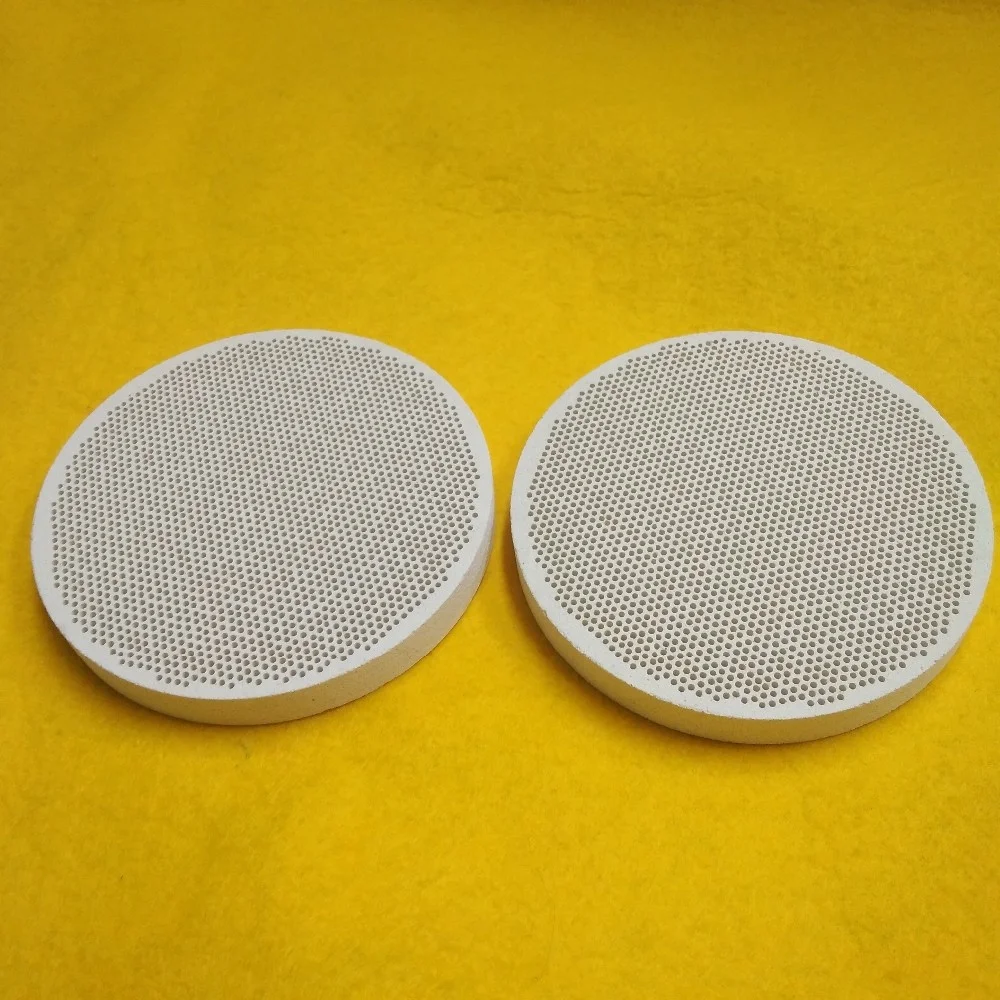

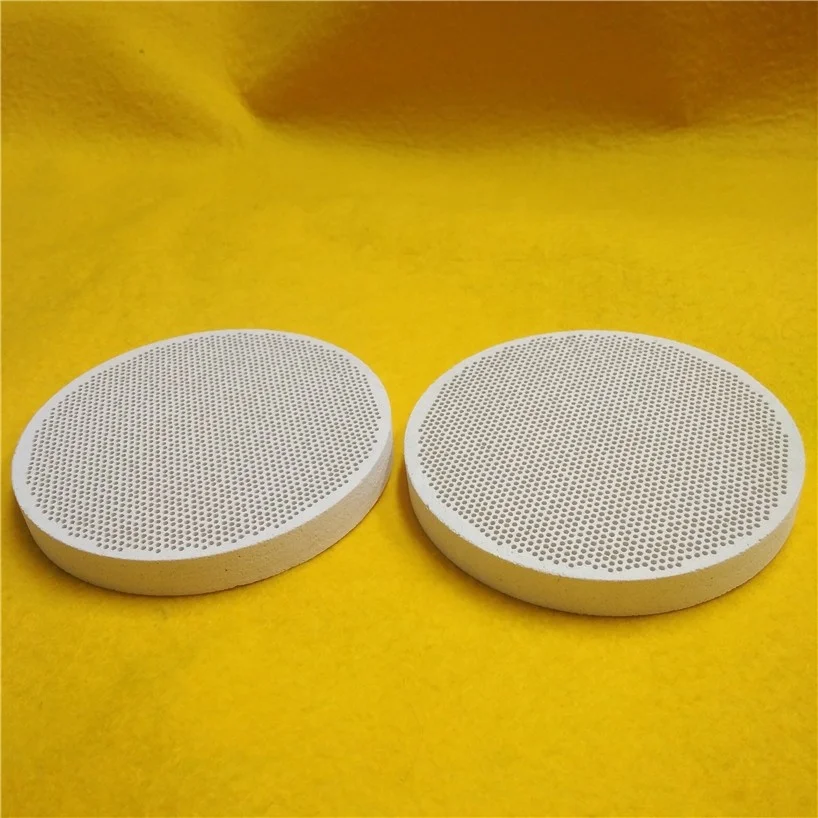

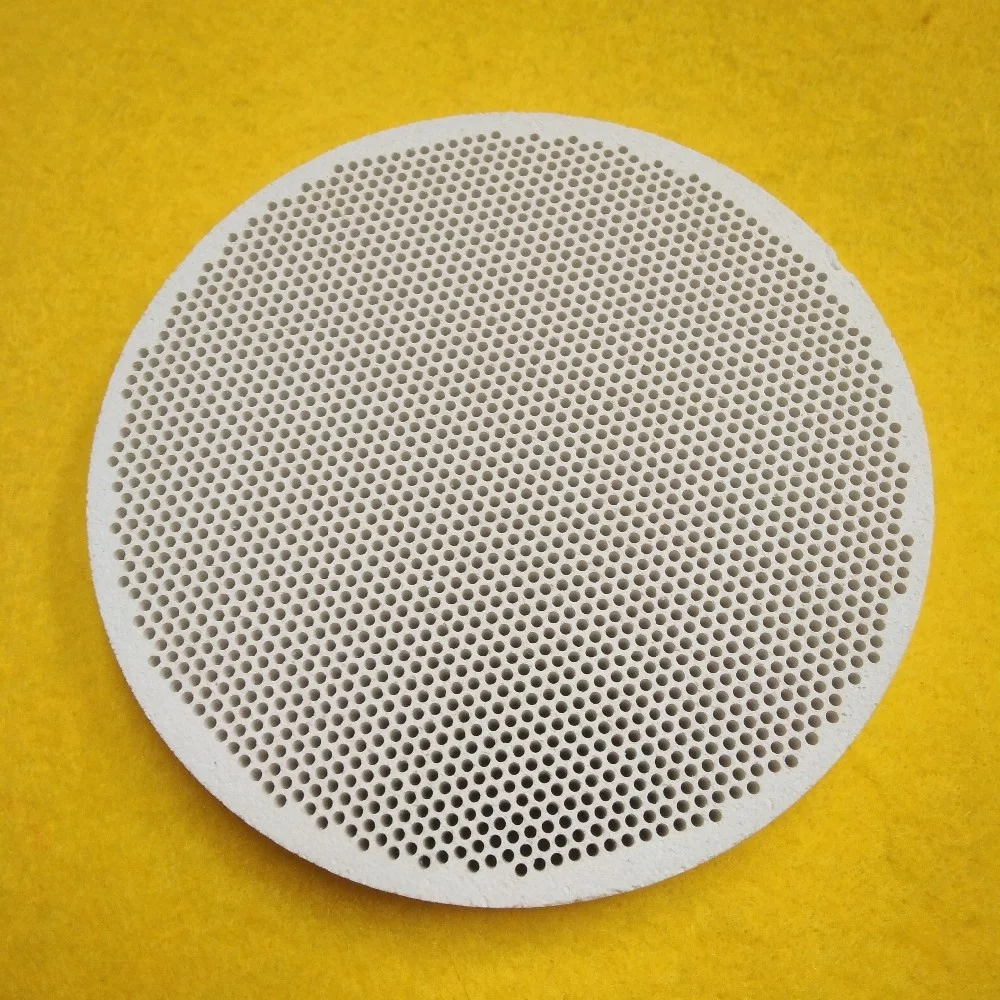

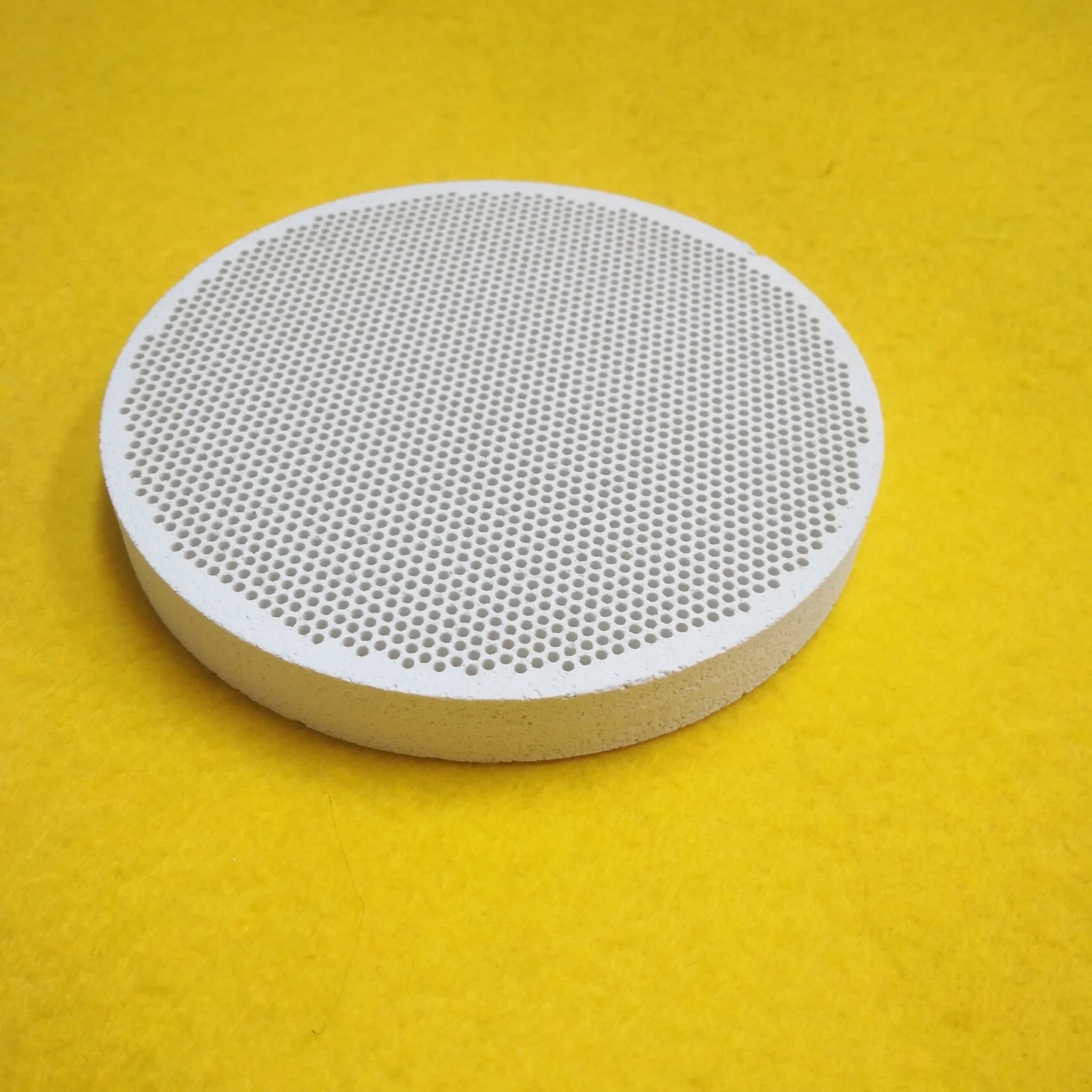

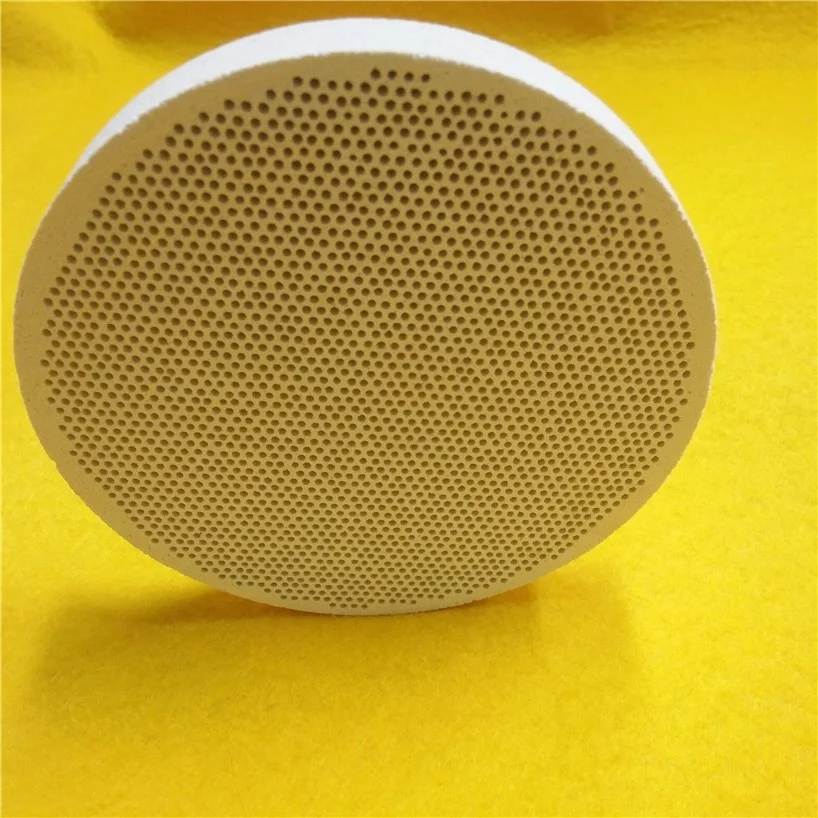

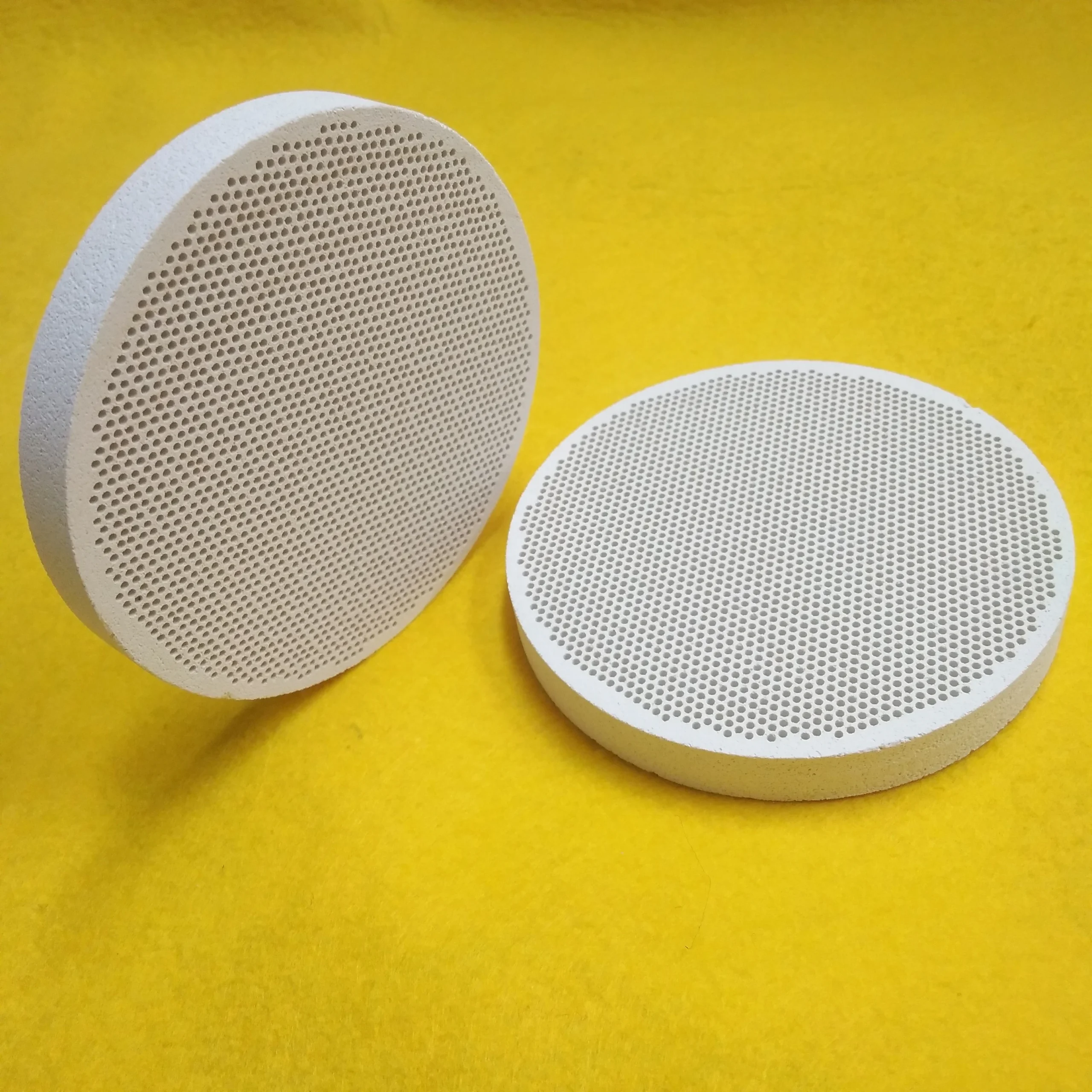

Refractory Honeycomb Ceramic Plate Customized Cordierite Disc
Honeycomb ceramic is the key and core component of regenerative high temperature combustion technology (HTAC technology).
It combines the technology of recovering flue gas waste heat with efficient combustion and reducing NOx emissions to achieve the dual purpose of limiting energy savings and limiting NOx emissions.
Regenerative thermal/catalytic Oxidizer(RTO/RCO)are used to destroy hazardous air pollutats(HAPs), Volatile organic compounds(VOCs)and odorous emmissions etc, which are extensively applied in the fields of automotive paint,Chemical industry, electronic&electric manufacturing industry,contact combustion system and so on .
ceramic honeycomb is specified as structured regenerative media of RTO/RCO.
Advantages of honeycomb cordierite ceramic monolith
1. With a large heat transfer area per unit volume
2. Fast heat transfer
3. Small flow resistance
4. Shallow depth of diathermy
5. High thermal efficiency
Applicatons of honeycomb ceramic
1. Industrial flue gas treatment
2. Filter material
3. Catalyst carrier
4. Heat accumulator
5. Infrared radiation burning board
6. Ceramic catalyst
Chemical & Physical Analysis
Chemical & Physical index | cordierite | Dense cordierite | cordierite-mullite | Mullite | Corundum-mullite | ||
composition(%) | SiO2 | 45-55 | 45-55 | 35-45 | 25-38 | 20-32 | |
Al2O3 | 30-38 | 33-43 | 40-50 | 50-65 | 65-73 | ||
MgO | 10-15 | 5-13 | 3-13 | – | – | ||
K2O+Na2O | <1.0 | <1.0 | <1.0 | <1.0 | <1.0 | ||
Fe2O3 | <1.5 | <1.5 | <1.5 | <1.5 | <1.5 | ||
Thermal Expansion Coefficient | <2 | <4 | <4 | <5 | <7 | ||
Specific Heat J/kg.K | 830-900 | 850-950 | 850-1000 | 900-1050 | 900-1100 | ||
Working Temperature ?? | <1300 | <1300 | <1350 | <1450 | <1500 | ||
Packaging Details:
(1) Export safe wooden box
(2)Inner boxes with filler .
(3)Outpackage is high quality cartons .
(4)Custom package
Answer: With the development more than 20 years, now we have 6 business division and we are supplying Quartz Glass (Tube,Rod,Plate and customized parts), optical glass and cuvette, and also various precise ceramics, porous ceramics and refractoryceramics. We have the full processing line for ceramic thick film resistors, far infrared ceramic glass heating panel, quartztube/ceramic plate ozone generator and porous metal fiber felt. For all the products, we can design and customize according to the clients’ demand.
2: Before mass order, can you offer samples? How will you charge for them?
Answer: We are willing to offer samples to lower your purchasing risk. Generally, if from inventory, we can deliver out within 3days, however if need processing, we can deliver out within 15 days. For some difficult items, the delivery time will be decided by its grade of difficulty. For some low value items, we can offer free sample, however we would like you to afford the freight cost. For customized products, we need to charge the developing cost.
3: What test report or certificate can you offer? What achievements have you made in research and development?
Answer: Till the end of 2021, we have passed many ROHS, CE, MSDS tests and also the ISO9001 authentication. We have 8 registered trademark and 25 patents. Also we won the title of China High-tech Enterprise and Jiangsu Private Science and Technology Enterprises.
4: Do you have any agent in our area? Can you export your products directly?
Answer: Till the end of 2021, we haven’t authorized any company or person as our regional agent. From 2008, we have the export qualification and professional export team, and till the end of 2021, we have exporting our products to more than 103 countries and regions, and our clients can contact us and purchase our products or service directly.
5: If the quality can not meet the requirement or any loss during the freight, how should we do?
Answer: We have strict QC test and professional QC team. We are always offering qualified products. If anything goes wrong, the quality can not meet requirement on the contract, we will reproduce the qualified products or refund the payment. We have the professional packing team and will pack the product in safe package for long distance delivery. If any loss during the freight, we hope you can assistant us to claim from the logistics company and we will arrange the replacement accordingly.
