Soil Water Potential Moisture Sensor Tensiometer Use Porous Ceramic Pipe Probe Cup Tube
$6.00
Product Name | Porous Ceramic Tube Soil Pressure Testing Porous Pipe |
Material | porous ceramic |
Function | repellent evaporation, perfume |
Package | synthetic wooden case padded with foams |
Products Description

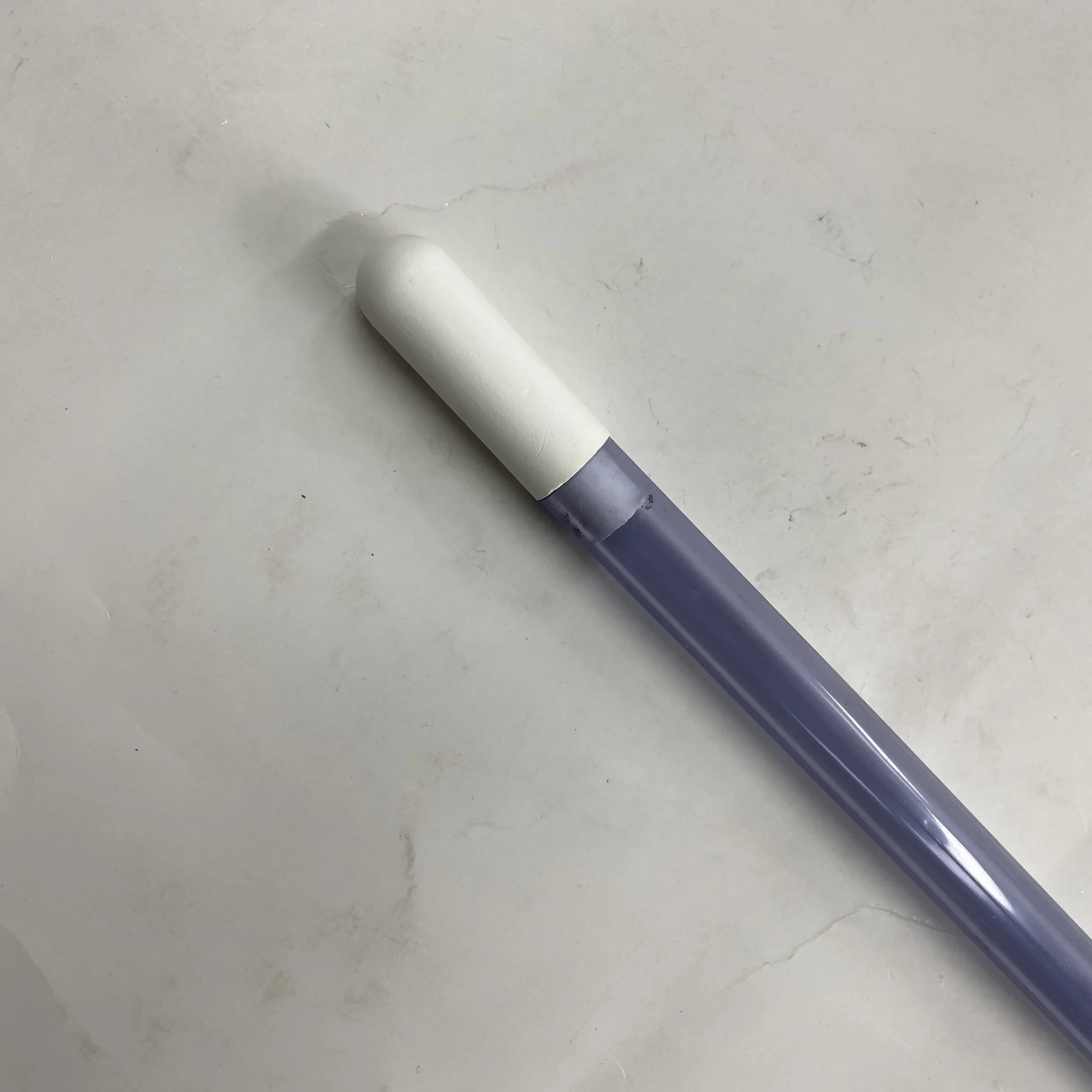

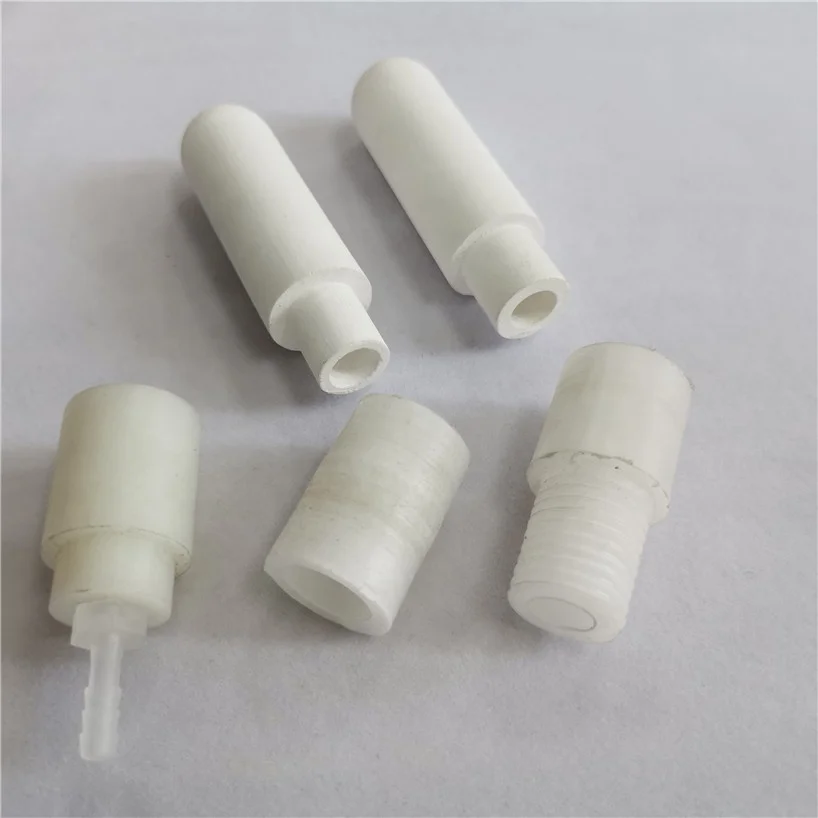

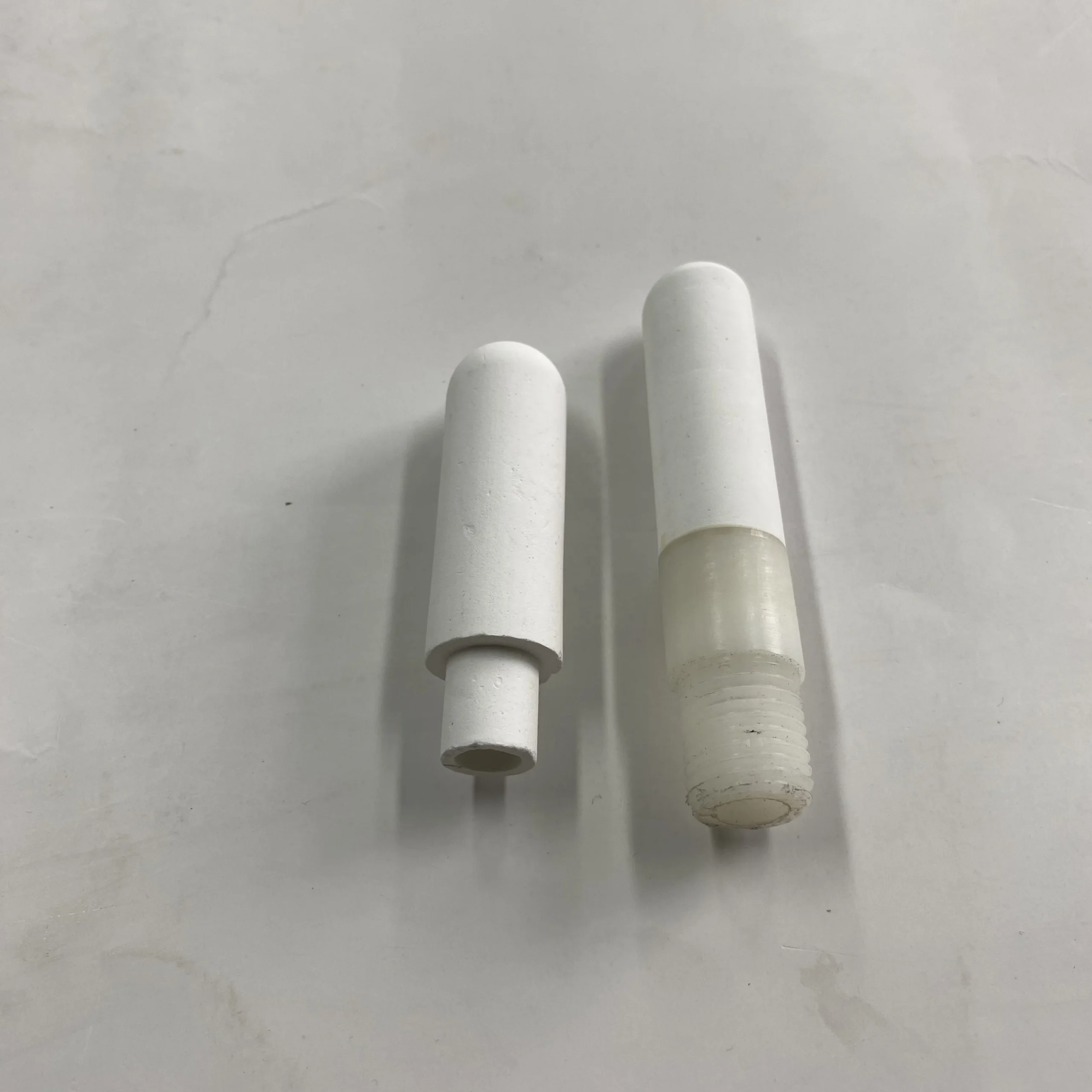

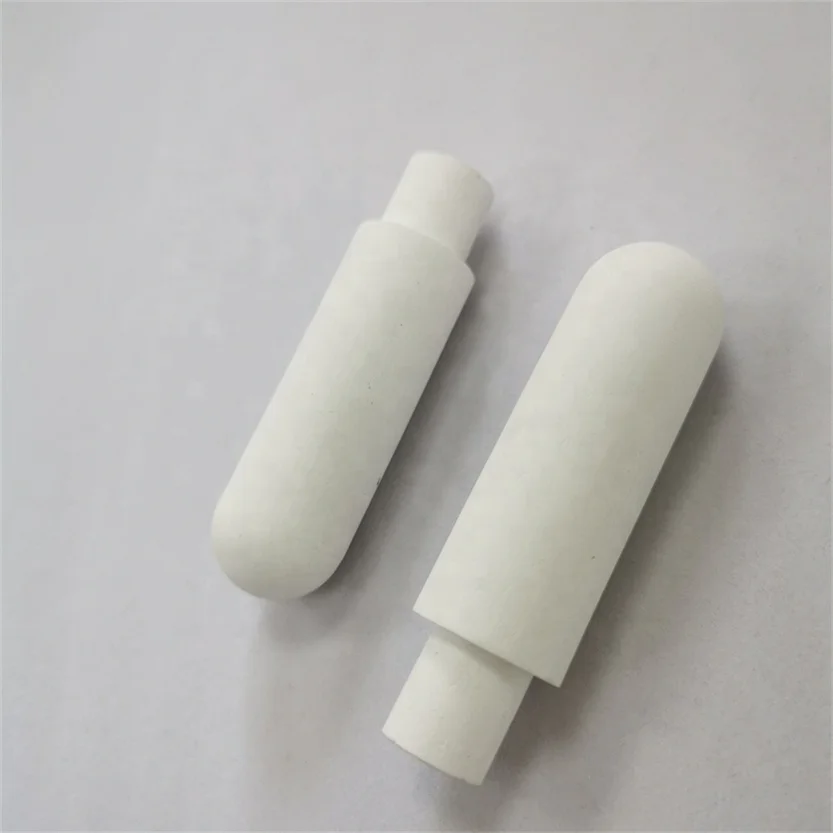

Porous ceramic prob tube Introduction
The porous ceramic prob tube is the sensing part of the soil tension meter instrument, which has many small pores. After the ceramic prob tube is infiltrated by water, a layer of water film is formed in the pores. When the water-filled and sealed soil hygrometer is inserted into the unsaturated soil, the water film is connected with the soil water, so that the water inside the instrument produces negative pressure, and the value displayed by the pressure meter is the soil water potential of the measured soil.
1. Customizable porosity and size
2. Environmental protection, non-toxic, long life
3. The absorption rate of liquid is stable
4. Resistant to acid and alkali corrosion, suitable for all kinds of soil environment
5. Customized matching plastic accessories
2. Environmental protection, non-toxic, long life
3. The absorption rate of liquid is stable
4. Resistant to acid and alkali corrosion, suitable for all kinds of soil environment
5. Customized matching plastic accessories
Technical data sheet
???մ?-Porous Ceramics
??Ŀ Item | ????ͷ/????? Infiltration Cup | ֲ????ˮ?? Plant Water Absorbing Wick | ?缫ɰо Electrode Wick | ?մ?о?? Ceramic Wick | ???մ? Scented Ceramic | ||
??ɫ?????? White alumina | ̼???? Silicon Carbide | ||||||
?ܶȣ?g/cm³??Density | 1.6-2.0 | 0.8-1.2 | 1.8-2.2 | 0.8-1.2 | 1.6-2.0 | 1.7-2.0 | |
???ſ???(%) Open Porosity Rate | 30-40 | 50-60 | 20-30 | 40-60 | 30-45 | 35-40 | |
??????(%) Porosity Rate | 40-50 | 60-75 | 25-40 | 60-75 | 40-50 | 40-45 | |
??ˮ??(%) Water Absorption | 25-40 | 40-70 | 10-28 | 40-70 | 25-40 | 25-35 | |
????μm?? Pore Size | 1-5 | 1-3 | 1-3 | 1-3 | 1-5 | 1-10 | |
