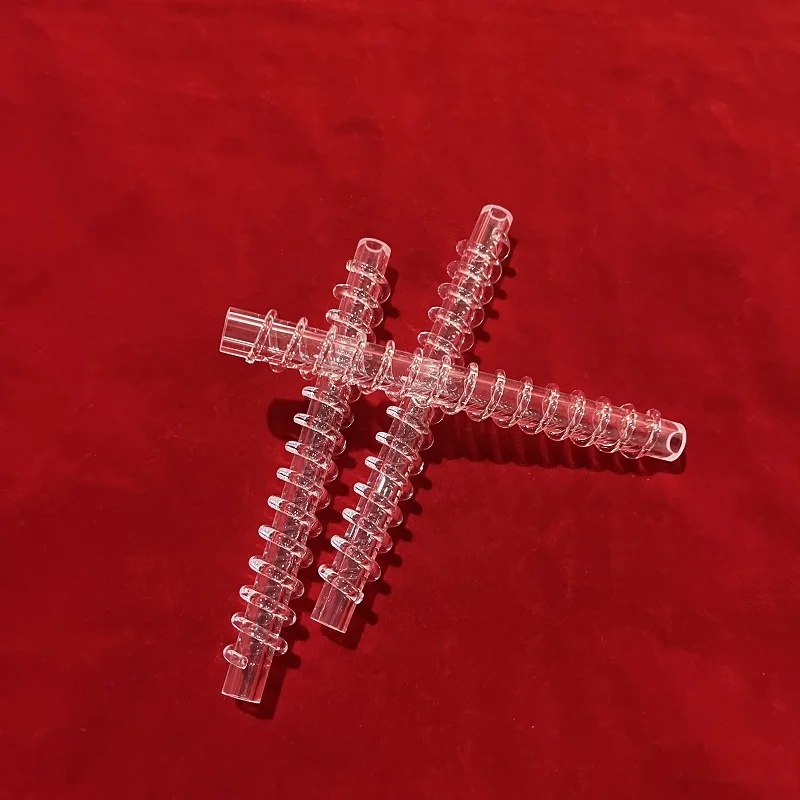

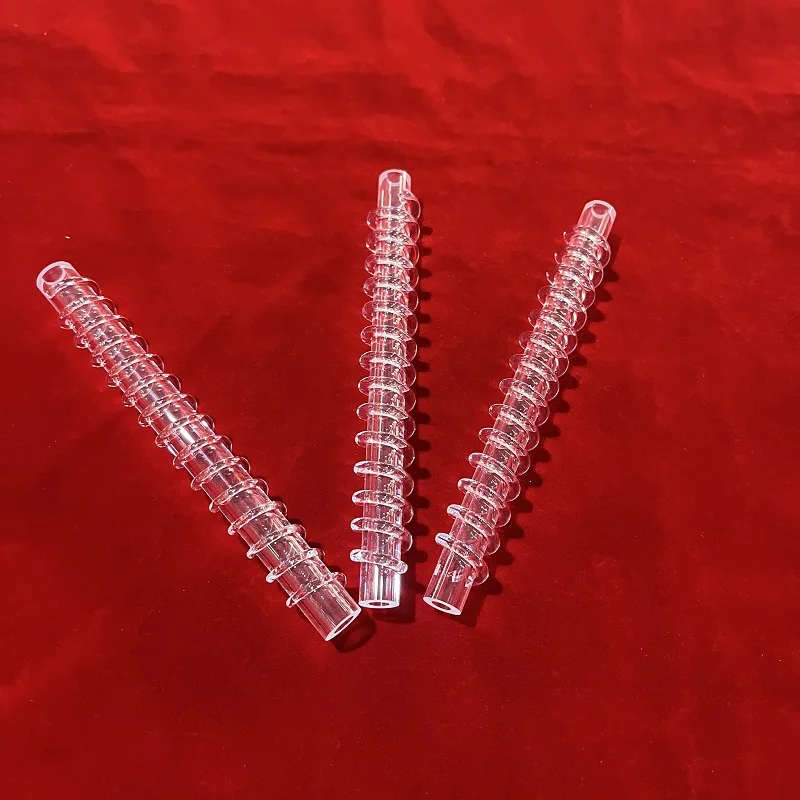

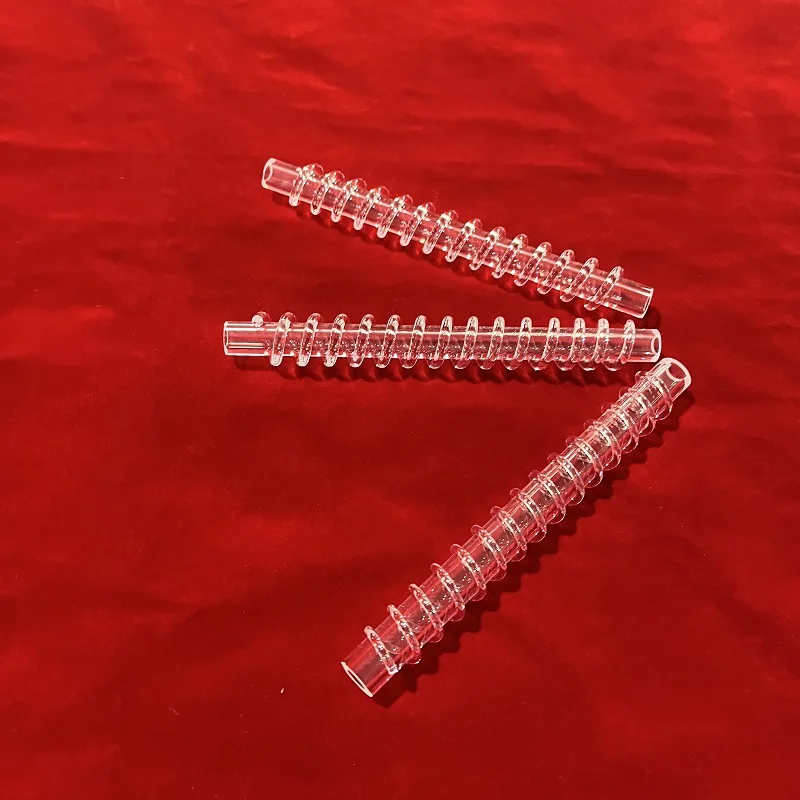

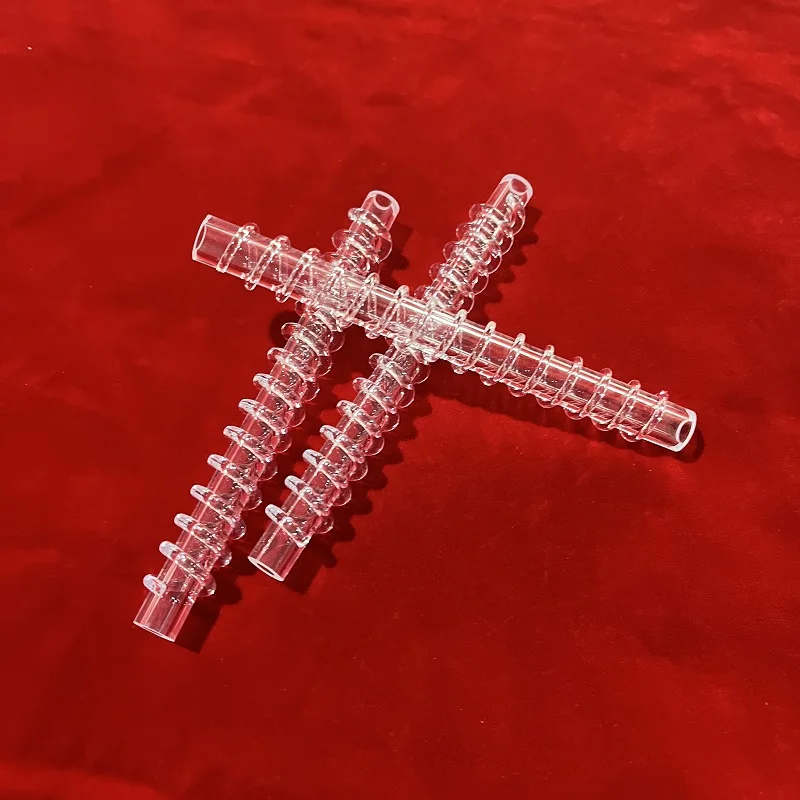

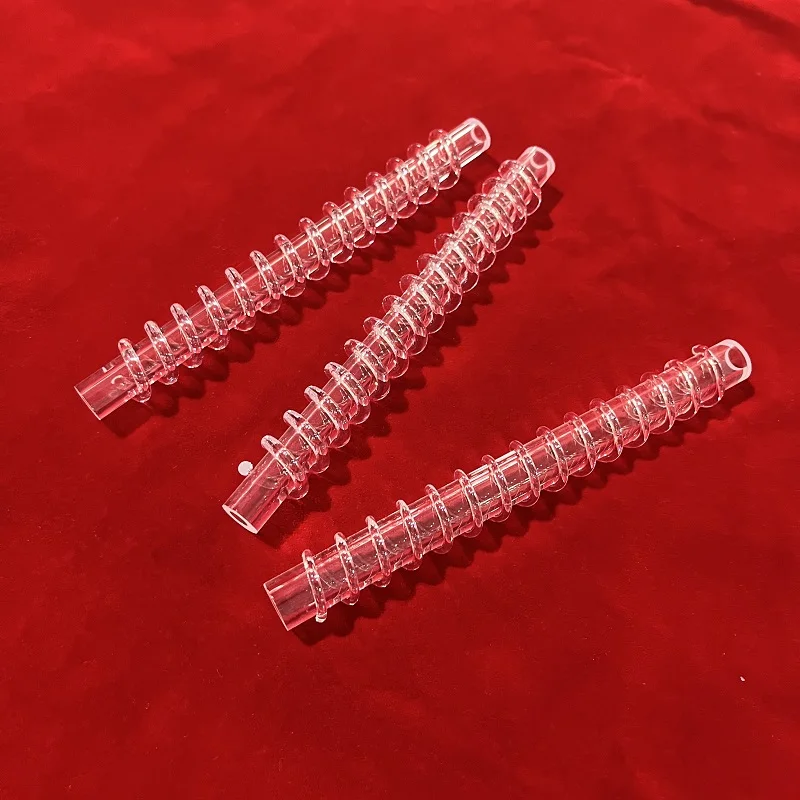

Transparent Spiral Quartz Tube Custom clear Spiral Quartz Glass Coil Pipe
$8.00
Product Description
Quartz Tube Product features
1. Purity SiO2 content is more than 99.99%
2. Temperature Softening point temperature is about 1730 degrees Celsius ,1100 degrees Celsius in a long time used ,short-time
maximum use temperature is up to 1450 degrees Celsius
3. Anti-corrosion Quartz glass is acidic materials, except hydrofluoric acid and 300 degrees Celsius thermal phosphoric acid, on
any other acids were shown to be inert, is the best anti acid materials. At room temperature, alkali and salt on quartz glass
corrosion degree is minimal
2. Temperature Softening point temperature is about 1730 degrees Celsius ,1100 degrees Celsius in a long time used ,short-time
maximum use temperature is up to 1450 degrees Celsius
3. Anti-corrosion Quartz glass is acidic materials, except hydrofluoric acid and 300 degrees Celsius thermal phosphoric acid, on
any other acids were shown to be inert, is the best anti acid materials. At room temperature, alkali and salt on quartz glass
corrosion degree is minimal
Quartz Tube Product features
4. Transmittance good performance Compare to ordinary silicate glass, transparent quartz glass in the whole wavelength head
excellent permeability. In the infrared spectrum through than ordinary glass; in the visible region, quartz glass transmittance is
relatively high ,above 85%-90%.
5. Good electrical insulation properties Quartz glass with high dielectric strength and very low electrical conductivity, even in
high temperature, high pressure and high frequency,it can still maintain high dielectric strength and resistance.
6.Thermal stability The thermal expansion coefficient of quartz galss is extremely small ,it can be able to adapt drastic
temperature changes
excellent permeability. In the infrared spectrum through than ordinary glass; in the visible region, quartz glass transmittance is
relatively high ,above 85%-90%.
5. Good electrical insulation properties Quartz glass with high dielectric strength and very low electrical conductivity, even in
high temperature, high pressure and high frequency,it can still maintain high dielectric strength and resistance.
6.Thermal stability The thermal expansion coefficient of quartz galss is extremely small ,it can be able to adapt drastic
temperature changes
Property Content | Unit | Property Index |
Density | g/cm³ | 2.21 |
Tensile Strength | Pa(N/?O) | 4.9×107 |
Compression Strength | Pa | >1.1×109 |
Coefficient of Thermal Expansion | cm/cm?? | 5.5×10-7 |
Thermal Conductivity | W/m?? | 1.4 |
Specific Heat | J/kg?? | 680 |
Softening Point | ?? | 1700 |
Annealing Point | ?? | 1210 |
Specification
item | value |
Place of Origin | China |
Brand Name | BB |
Model Number | spiral quartz glass tube |
Type | Clear Quartz Pipe |
Color | TRANSPARENT |
Outside Diameter | as request |
Ozone Content | Ozone Free |
Processing Service | Bending, Welding, Punching, Decoiling, Cutting, Moulding |
Product Name | transparent spiral quartz glass tube with coils design |
Material | 99.99%SiO2 |
Work Temperature | 1100c |
Soften point | 1680c |
Size | Client Requirement |
OEM | Accept Quartz Tube Customized |
Surface | Polished Treatment |
Density | 2.2g/cm3 |
Company Profile
Introduction
Based on quartz and ceramics, after more than 20 years development, Highborn Group has grown up to a modern enterprise in research, manufacture, processing and sales. We are mainly supplying quartz glass, cuvette, precise ceramics, porous ceramics,thick film resistor, ozone generator, metal fiber felt, polyester fiber cotton products and we have been offering our products and services to our clients from more than 108 countries or regions.
We can offer not only qualified products, we can also supplying quality service including design, development, export and after sales. With our professional skills, advanced technology and quality material, we can design and develop new products or new applications according to the clients’ expectation. We have custom-made new products and promoted the specifications for more than
1000 clients, and we have gotten good reputation from our clients .
1000 clients, and we have gotten good reputation from our clients .
Certification
Highborn Group is paying great attention to the product quality and technology research all the time. We have passed ROHS, CE,MSDS tests and also the ISO9001 authentication. We have 8 registered trademark and 25 patents. Also in 2020, we won the title of China High-tech Enterprise and Jiangsu Private Science and Technology Enterprises.
CE,ROHS,MSDS,POSI CERTIFICATIONS
OUR PATENTS
Our Service
Packing & Delivery
Packing Details: | We will packing by plastic/ polybay and bubble bags first , and then into the foam box,finally into the wooden cases/ carton/pallet or customized package.Every package can be offered with English installation instruction. |
Delivery Details | We can deliver by any courier, eg, TNT, UPS, FedEx, EMS etc.We can also by air, sea etc.We can choose the way according to the requirements of customers to ensure the most safe, efficient and convenient transportation. |
FAQ
1??What products and service can you offer us?
Answer: With the development more than 20 years, now we have 6 business division and
we are supplying Quartz Glass (Tube, Rod, Plate and customized parts), optical glass and cuvette, and also various precise ceramics, porous ceramics and refractory ceramics. We have the full processing line for ceramic thick film resistors, far infrared ceramic glass heating panel, quartz tube/ceramic plate ozone generator, porous metal fiber felt and polyester fiber cotton products. For all the products, we can design and customize according to the clients’ demand.
we are supplying Quartz Glass (Tube, Rod, Plate and customized parts), optical glass and cuvette, and also various precise ceramics, porous ceramics and refractory ceramics. We have the full processing line for ceramic thick film resistors, far infrared ceramic glass heating panel, quartz tube/ceramic plate ozone generator, porous metal fiber felt and polyester fiber cotton products. For all the products, we can design and customize according to the clients’ demand.
2: Before mass order, can you offer samples? How will you charge for them?
Answer: We are willing to offer samples to lower your purchasing risk. Generally, if from inventory, we can deliver out within 3 days, however if need processing, we can deliver out within 15 days. For some difficult items, the delivery time will be decided by its grade of difficulty. For some low value items, we can offer free sample, however we would like you to afford the freight cost. For customized products, we need to charge the developing cost.
Answer: We are willing to offer samples to lower your purchasing risk. Generally, if from inventory, we can deliver out within 3 days, however if need processing, we can deliver out within 15 days. For some difficult items, the delivery time will be decided by its grade of difficulty. For some low value items, we can offer free sample, however we would like you to afford the freight cost. For customized products, we need to charge the developing cost.
3: What test report or certificate can you offer?
achievements have you made in research and development? Answer: Till the end of 2021, we have passed many ROHS, CE, MSDS tests and also the ISO9001 authentication. We have 8 registered trademark and 25 patents. Also we won the title of China High-tech Enterprise and Jiangsu Private Science and Technology Enterprises.
achievements have you made in research and development? Answer: Till the end of 2021, we have passed many ROHS, CE, MSDS tests and also the ISO9001 authentication. We have 8 registered trademark and 25 patents. Also we won the title of China High-tech Enterprise and Jiangsu Private Science and Technology Enterprises.
4: Do you have any agent in our area?
products directly? Answer: Till the end of 2021, we haven’t authorized any company or person as our regional agent. From 2008, we have the export qualification and professional export team, and till the end of 2021, we have exporting our products to more than 108 countries and regions, and our clients can contact us and purchase our products or service directly.
products directly? Answer: Till the end of 2021, we haven’t authorized any company or person as our regional agent. From 2008, we have the export qualification and professional export team, and till the end of 2021, we have exporting our products to more than 108 countries and regions, and our clients can contact us and purchase our products or service directly.
5: If the quality can not meet the requirement or any loss during the freight, how should we do? Answer: We have strict QC test and professional QC team. We are always offering qualified products. If anything goes wrong, the quality can not meet requirement on the contract, we will reproduce the qualified products or refund the payment. We have the professional packing team and will pack the product in safe package for long distance delivery. If any loss during the freight, we hope you can assistant us to claim from the logistics company and we will arrange the replacement accordingly.
