Yttria Stabilized Zirconia Custom Ceramic Plate YSZ Plate

Name: Yttria Stabilized Zirconia Custom Ceramic Plate YSZ Plate
SKU: 29488
Availability: InStock

$3.00

100 in stock

Category: Aluminium Nitride Ceramics Tags: bent plate, cake plate, crab plate, ikea plate, owl plates, paper plate, pie plate, pizza plate, plates, show plate, slate plate, steak plate, sushi plate, under plate, wood plates

Product Description

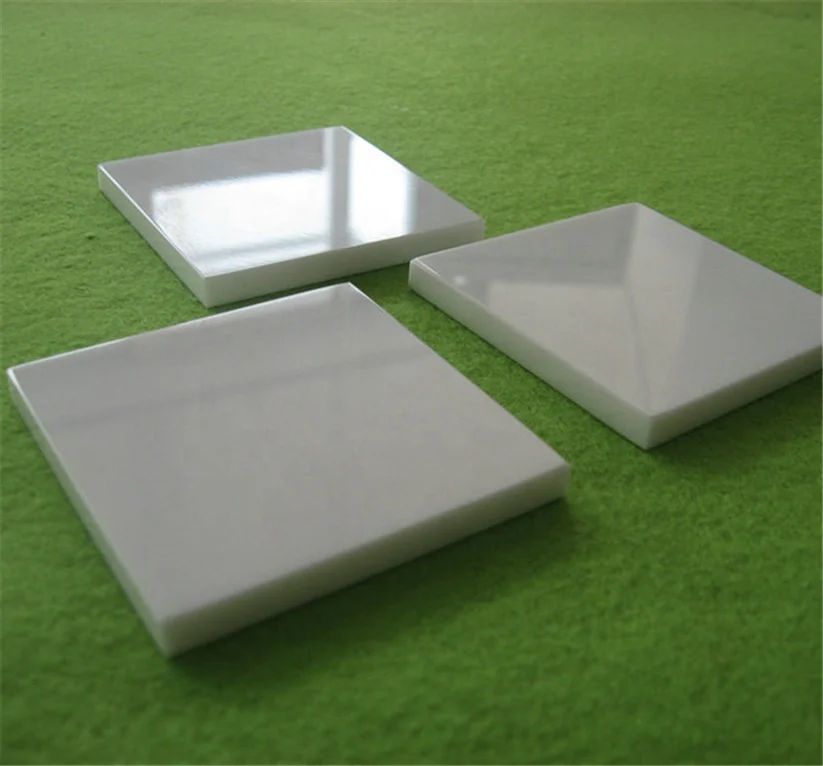

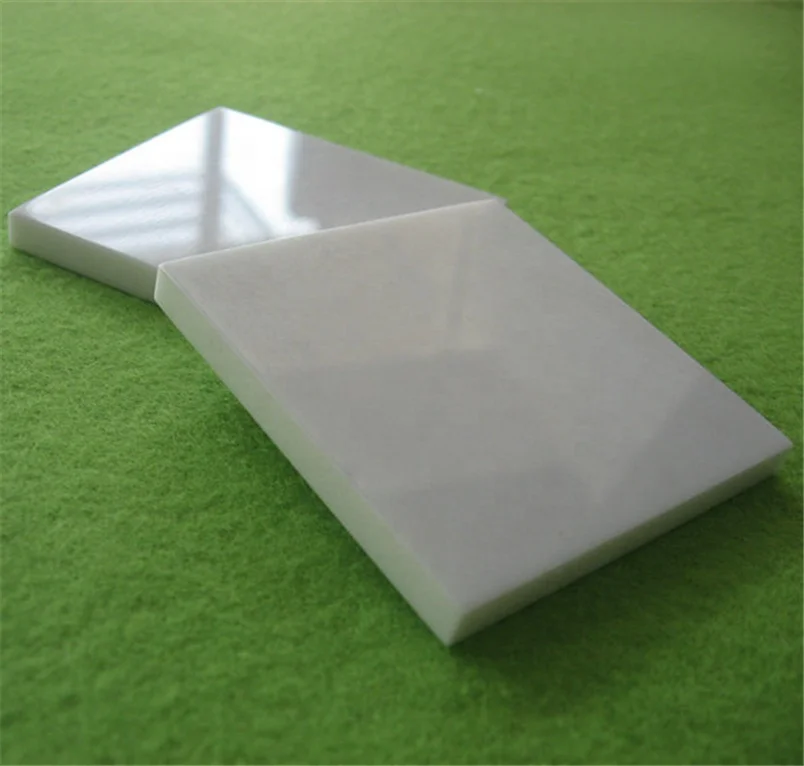

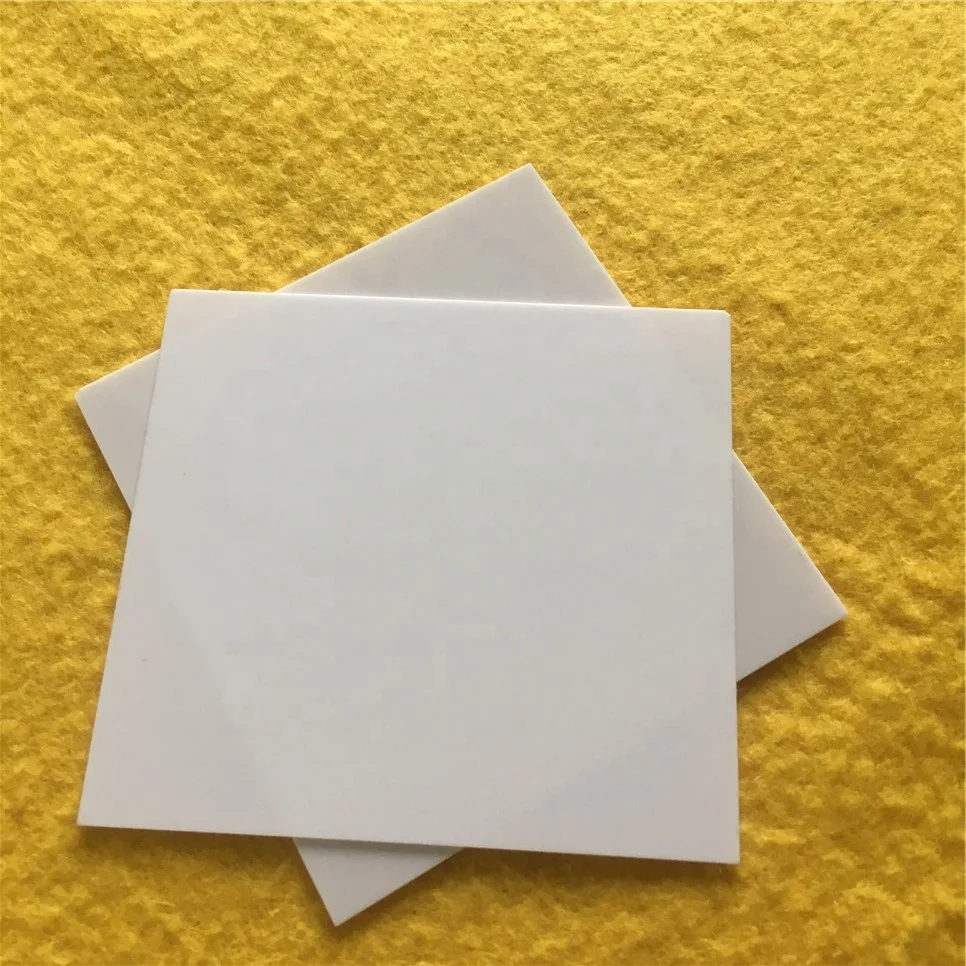

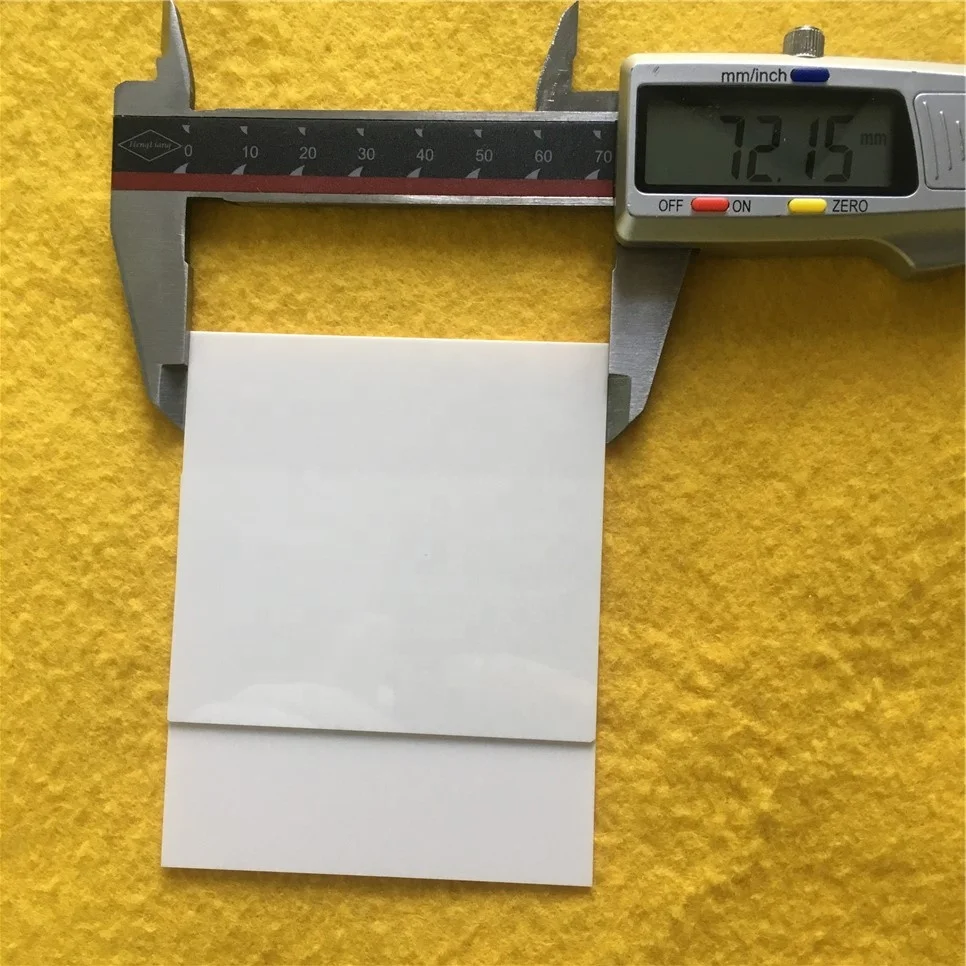

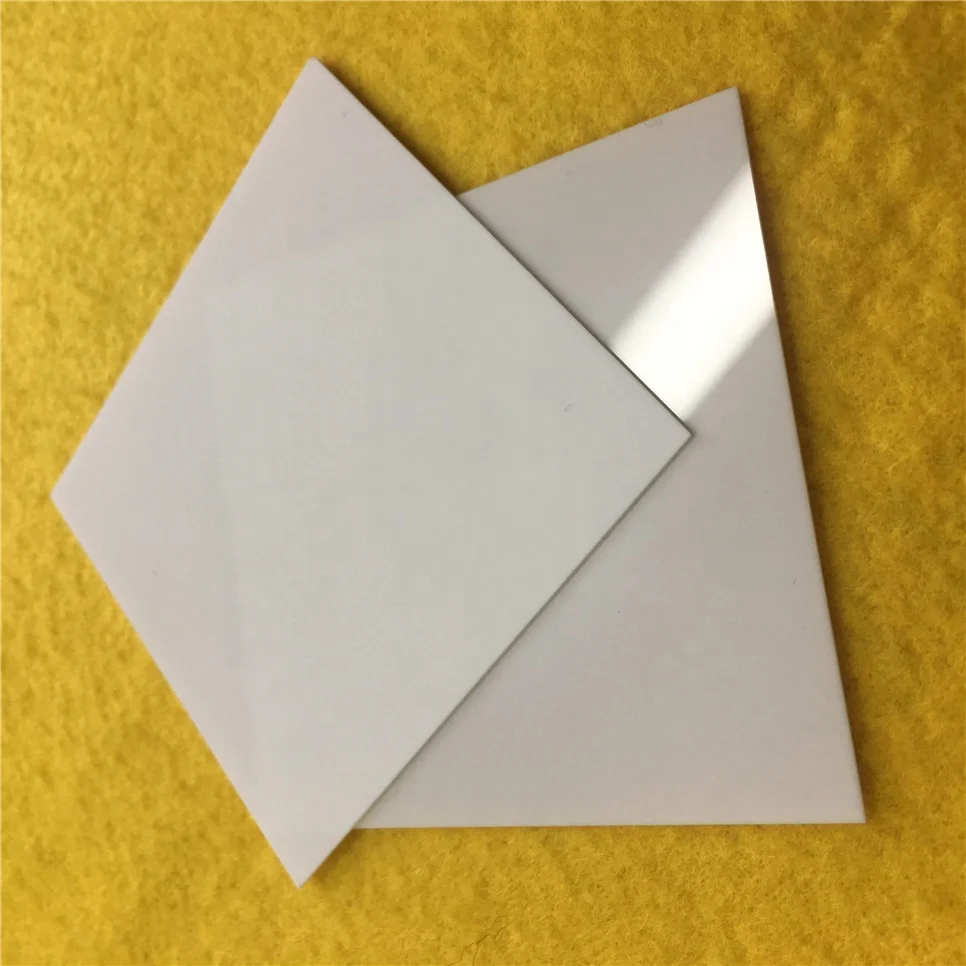

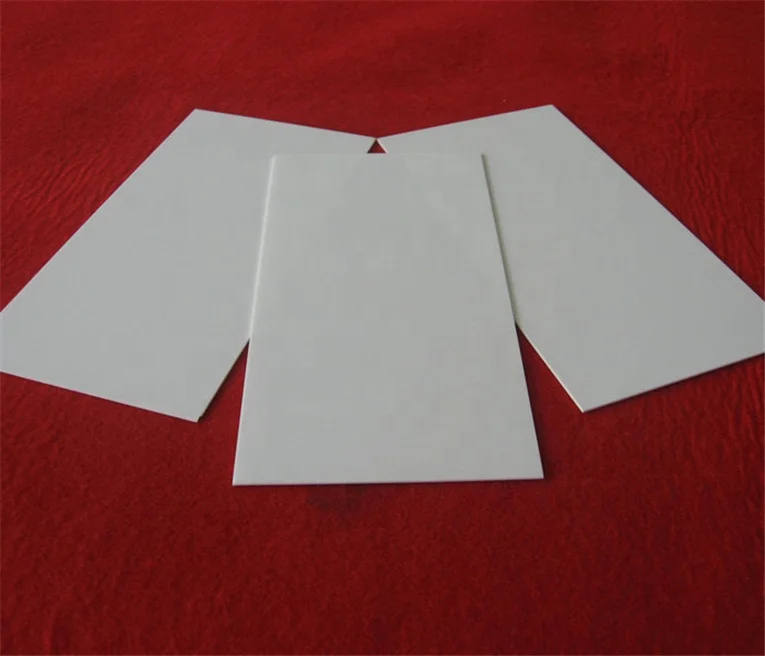

High purity Yttria stabilized zirconia ceramic plate

Material : Zirconia

Unlike traditional ceramics that tend to be hard and brittle, Zirconia offers high strength, wear resistance, and flexibility far beyond those of most other technical ceramics. Zirconia is a very strong technical ceramic with excellent properties in hardness, fracture toughness, and corrosion resistance; all without the most common property of ceramics – high brittleness.

Advantages of zirconia ceramic plate

1).Excellent electrical insulation
2).High hardness
3).Resistance to wear and corrosive
4).Excellent thermal stability
5).Resistance to high temperatures
6).High electrical resistivity
7).Good chemical stability and resistance
8).High corrosion resistance
9).Excellent thermal shock resistance

Applications of zirconia ceramics

Zirconium oxide ceramics are used, among other applications, as tools for wire forming, as auxiliaries in welding processes, as materials for crowns and bridgesin the dental industry, as insulating rings in thermal processes, and as oxygen measurement cells in lambda probes.

Properties of zirconia ceramic

Properties	Condition	Units	Zirconia(ZrO2)
Density		g/cm^3	6.05
Flexural Strength (MOR)	20 ??	Mpa	1000
Elastic(Young's) Modulus	20??	GPa	200
Compressive Strength	20??	MPa	3000
Hardness(Vickers)		GPa	12.7
Fracture Toughness	K(I c)	Mpa m^1/2	13
Thermal Conductivity	20??	W/m °K	2.5
Coefficient of Thermal Expansion	25-1000 ??	1X 10^-6 /??	10.3
Specific Heat	100 ??	J/kg*K	400
Dielectric Strength	6.35mm	ac-kV/mm	9.4
Dielectric Constant	25 ??	1 MHz	28
Volume Resistivity	25 ??	ohm-cm	10^14
