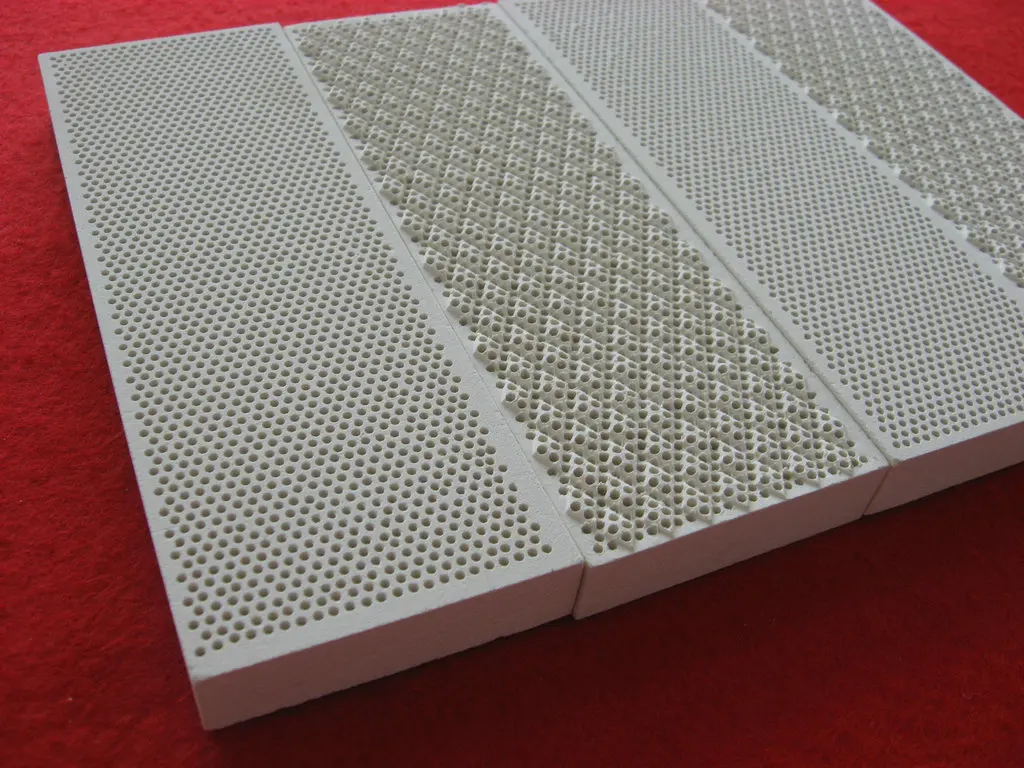

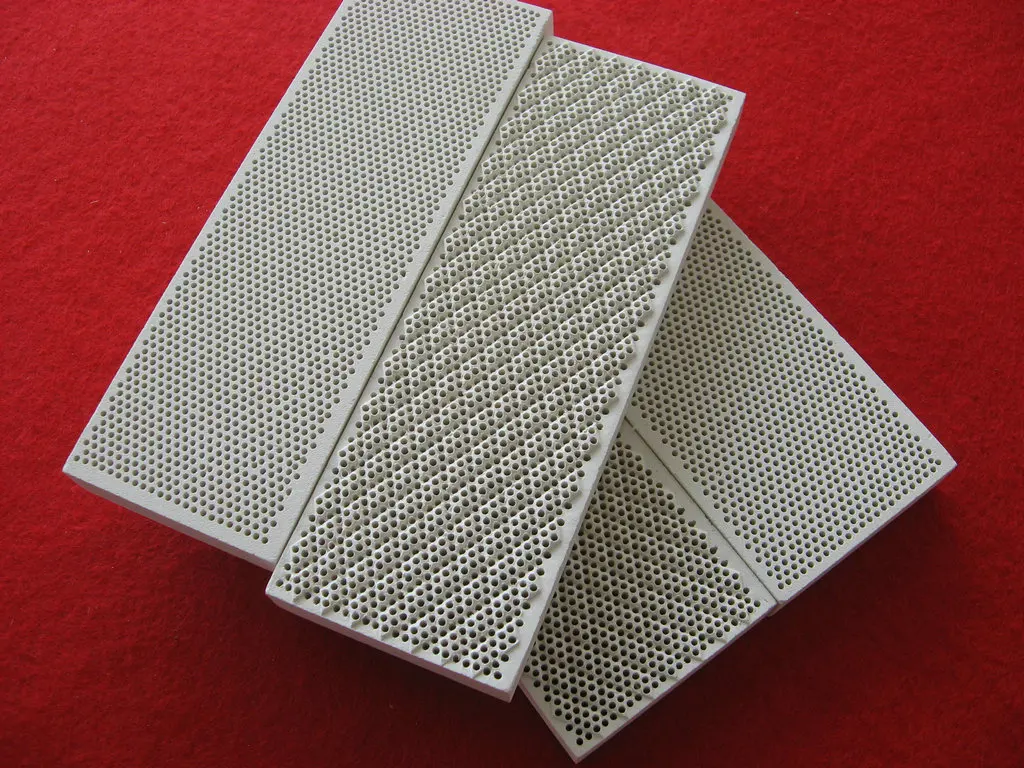

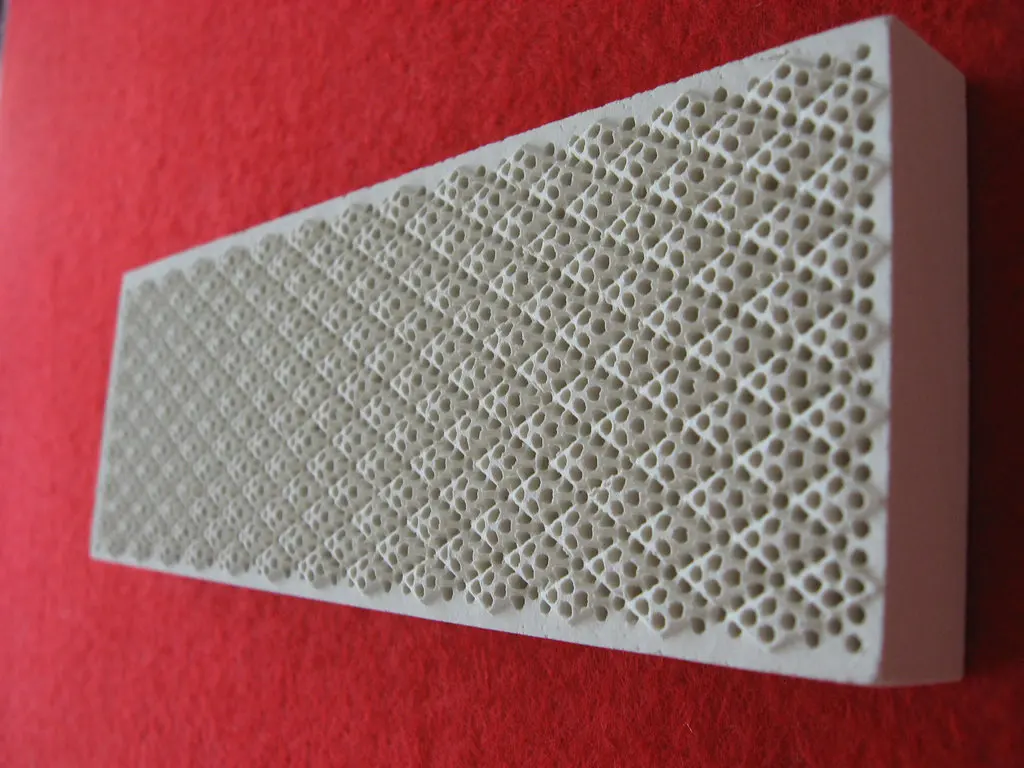

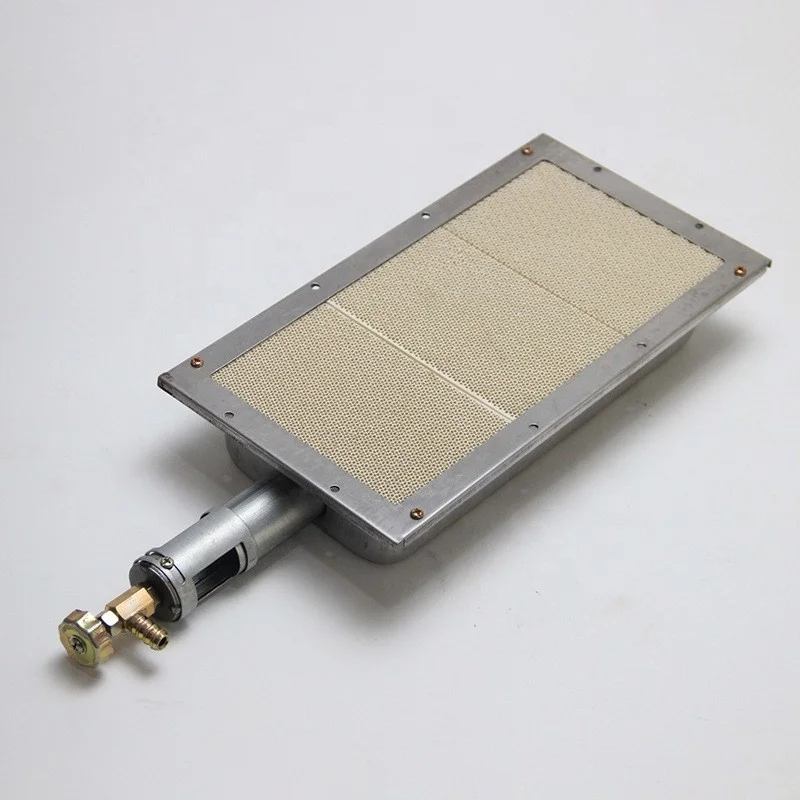

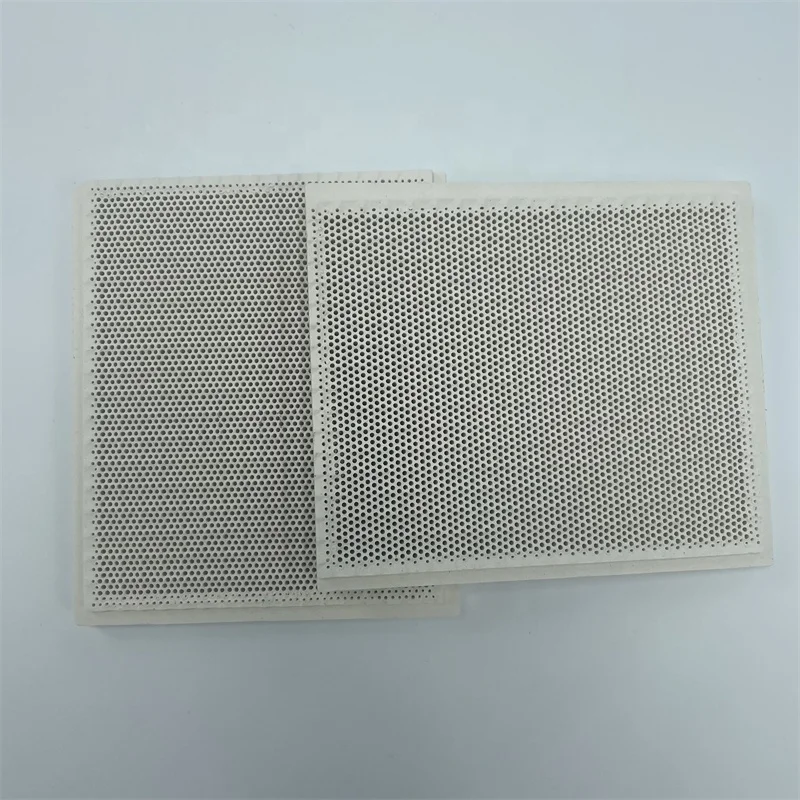

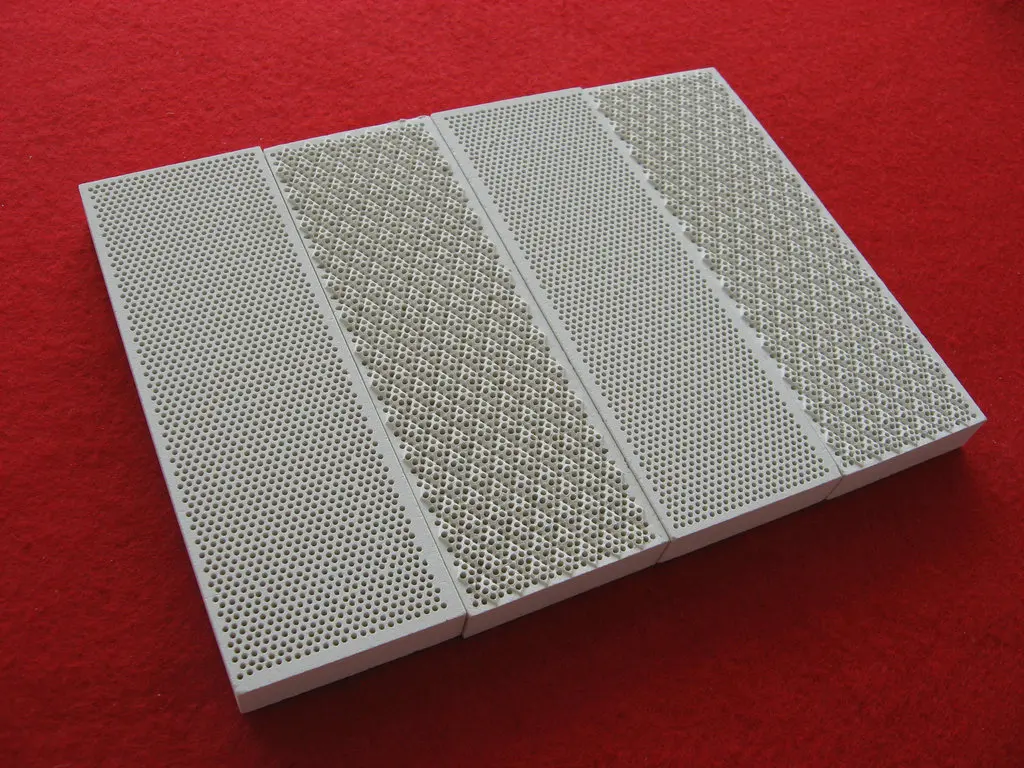

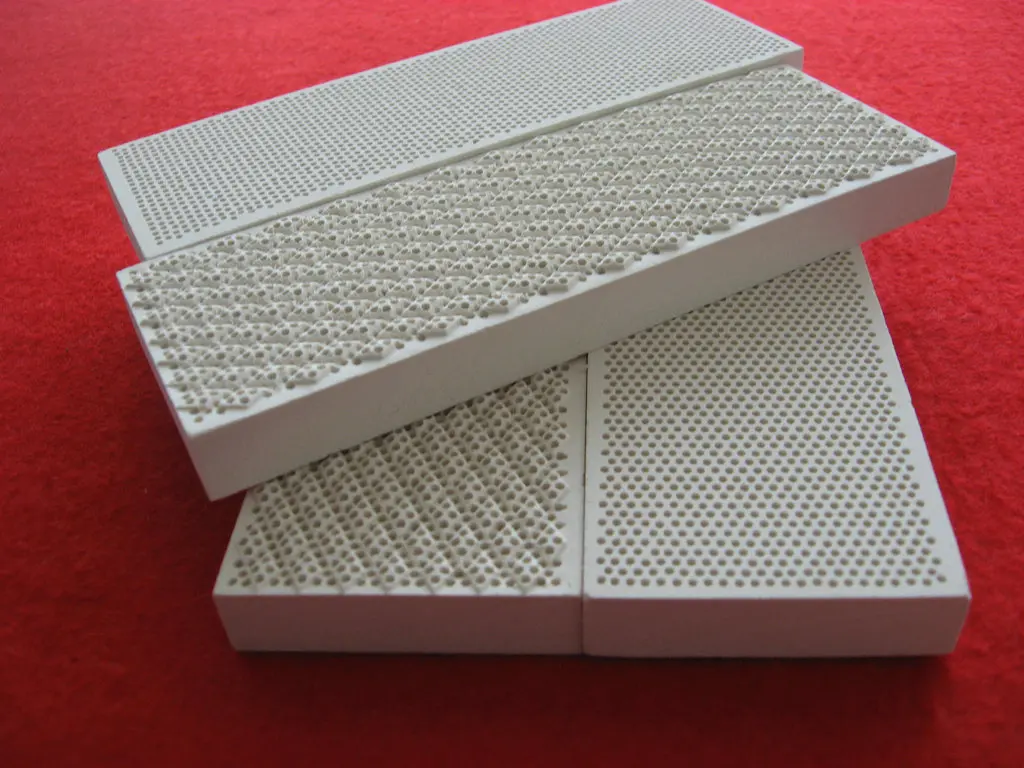

Ir Gas Honeycomb Ceramic burner Tile

Name: Ir Gas Honeycomb Ceramic burner Tile
SKU: 42978
Availability: InStock

$15.00

100 in stock

Add to wishlist

Add to compare

Product Description

High Temperature Resistance Honeycomb Ceramic

Honeycomb ceramic heater with high refractoriness,large heat capacity,not only improve the heat storage capacity and heat-exchange speed,but also reduce the phenomenon of slog,melting,slag-bonding,cracking,spalling and so on,and the service life reaches the same level of foreign products.

Advantages of cordierite honeycomb ceramic plate

1. With a large heat transfer area per unit volume
2. Fast heat transfer
3. Small flow resistance
4. Shallow depth of diathermy
5. High thermal efficiency

Applicatons of cordierite honeycomb ceramic plate

Steel plant, waste incinerator, waste gas treatment thermal equipment, chemical plant, metallurgical plant, power industrial boiler, gas turbine, engineering heating equipment, ethylene cracking furnace, etc.

Chemical & Physical Analysis

Chemical & Physical index			cordierite	Dense cordierite	cordierite-mullite	Mullite	Corundum-mullite
Chemical composition(%)	SiO₂	45-55	45-55	35-45	25-38	20-32
		Al₂O₃	30-38	33-43	40-50	50-65	65-73
		MgO	10-15	5-13	3-13	–	–
		K₂O+Na₂O	<1.0	<1.0	<1.0	<1.0	<1.0
		Fe₂O₃	<1.5	<1.5	<1.5	<1.5	<1.5
Thermal Expansion Coefficient			<2	<4	<4	<5	<7
Specific Heat J/kg.K			830-900	850-950	850-1000	900-1050	900-1100
Working Temperature ??			<1300	<1300	<1350	<1450	<1500

Our Company

Based on quartz and ceramics, after more than 20 years development, Highborn Group has grown up to a modern enterprise in research, manufacture, processing and sales. We are mainly supplying quartz glass, cuvette, precise ceramics, porous ceramics, thick film resistor, ozone generator, metal fiber felt and we have been offering our products and services to our clients from more than 103 countries or regions.

Highborn Group is paying great attention to the product quality and technology research all the time. We have passed ROHS, CE, MSDS tests and also the ISO9001 authentication. We have 8 registered trademark and 25 patents. Also in 2020, we won the title of China High-tech Enterprise and Jiangsu Private Science and Technology Enterprises.

We can offer not only qualified products, we can also supplying quality service including design, development, export and after sales. With our professional skills, advanced technology and quality material, we can design and develop new products or new applications according to the clients’ expectation. We have custom-made new products and promoted the specifications for more than 1000 clients, and we have gotten good reputation from our clients.
